➤ Used TRUMPF Qualifier 2500 For sale | gindumac.com

Show in original language

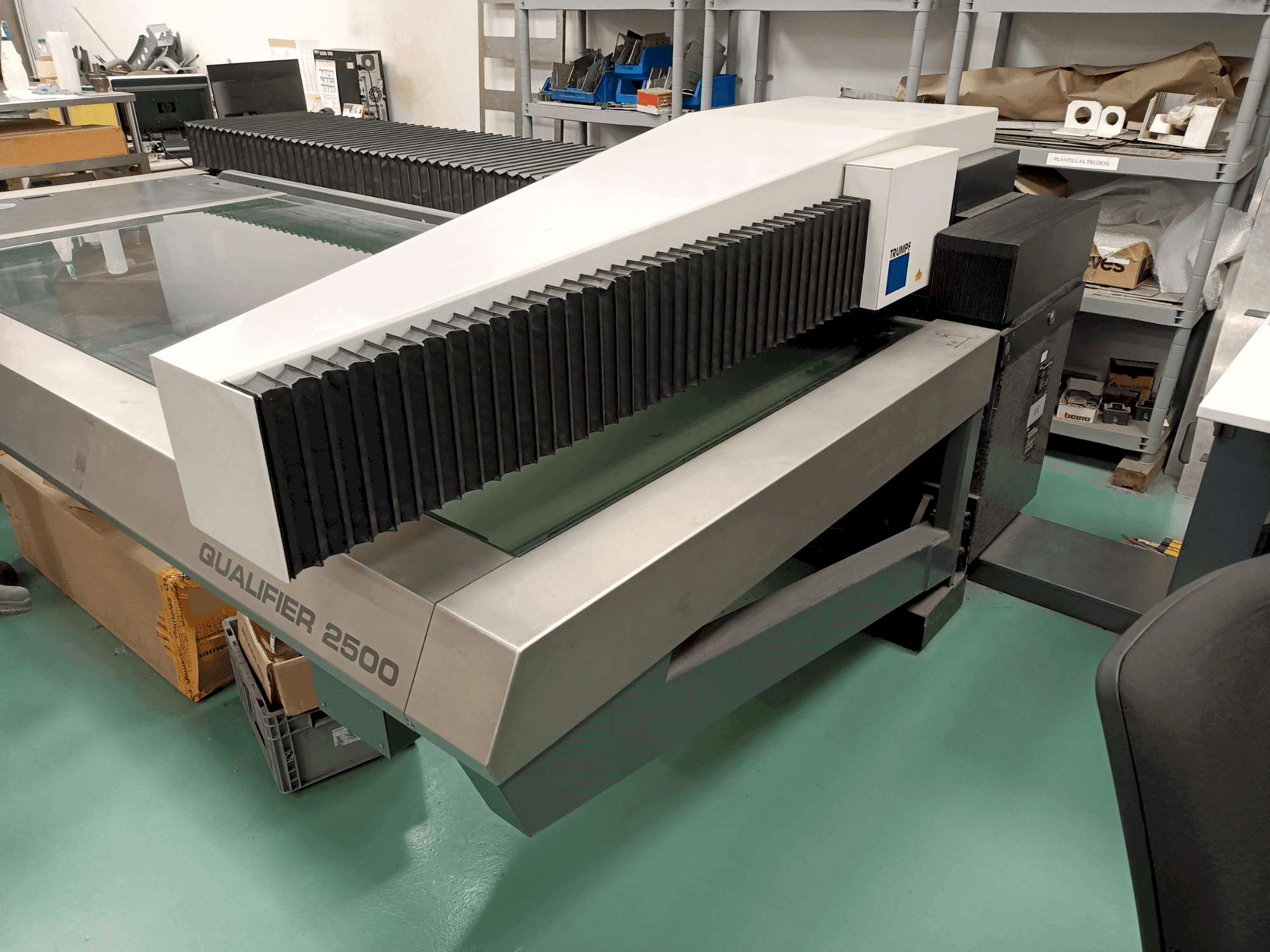

This 3-axis TRUMPF Qualifier 2500 measuring machine was manufactured in 2003. It features a 2D measurement range of 2500 mm x 1250 mm and can support a maximum table load of 500 kg. The scanning speed reaches up to 33 m/min, enhancing productivity. Ideal for precise measurements in demanding environments, the TRUMPF Qualifier 2500 machine we have for sale is a robust choice for your measuring needs. Contact us for further details regarding this measuring machine.

Overview

brand: TRUMPF
year: 2003
MODEL: Qualifier 2500
application type: Measuring
Location: Spain
machine type: Laser Measurement Machine
availability: Sold

Technical Information - TRUMPF Qualifier 2500

General Data

Measurements width: 3255 mm
Measurements depth: 5920 mm
Machine weight: 4600 kg

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm
Z-AXIS Movement: 40 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Scanning speed of the x and y axes: up to 33 m/min
- - Positioning speed of the x and y axes: 6 m/s²
- - Workpiece weight: max. 500 kg
- - Main electronic connection: 400 v, 50/60 hz, 10 a, tn grid
- - High scanning and positioning speeds
Qualitative Machine Benefits:
- - High measurement precision

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
