- ➤ Used Trotec SP500 - Laser Cutter For sale | gindumac.com

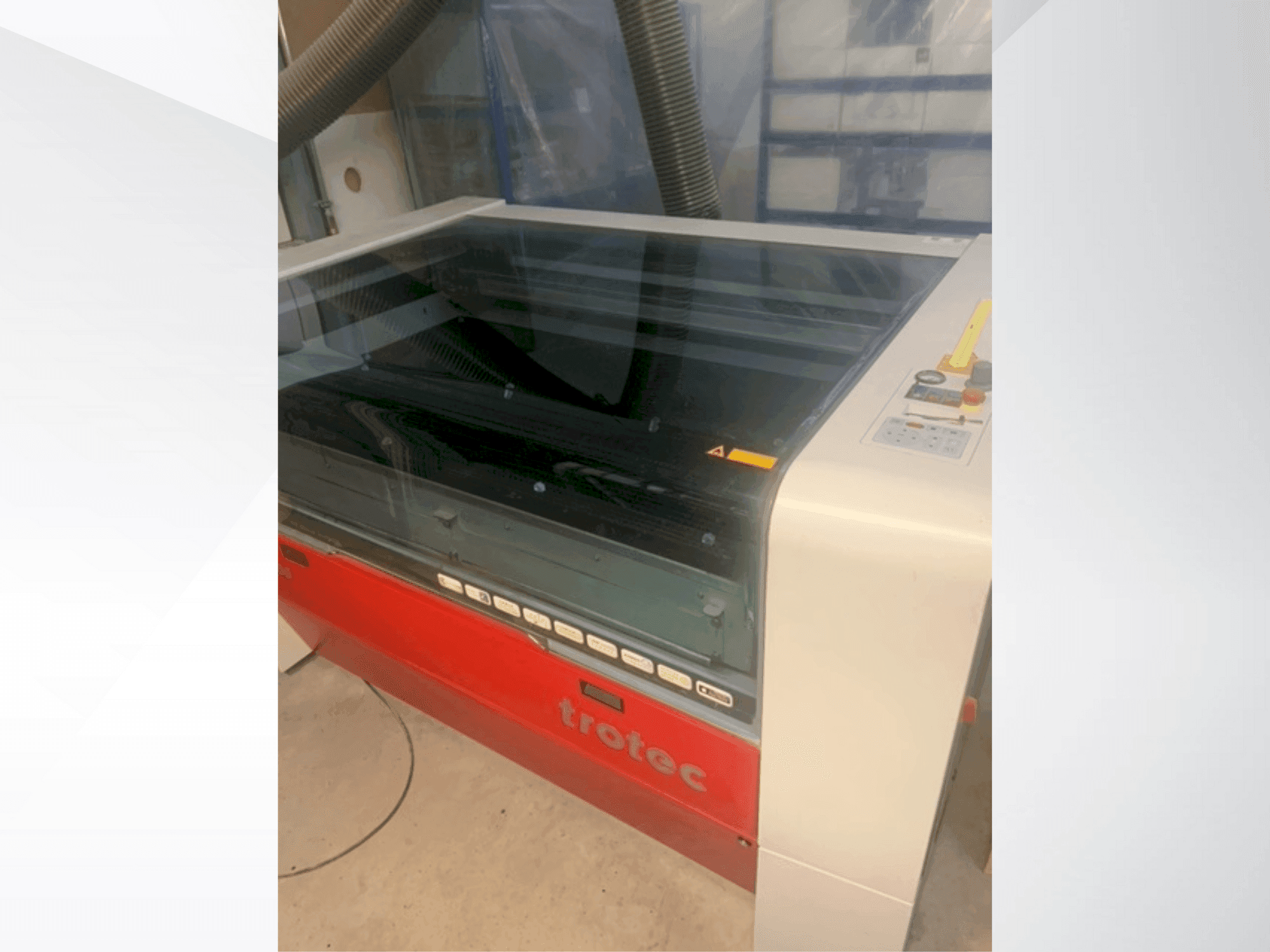

This laser cutting machine was manufactured in 2020. Equipped with a sealed-off CO2 laser of 200 watts and water cooling, it ensures precise and efficient cutting. The processing area is 1245 x 710 mm, supporting a maximum workpiece weight of 25 kg. Features include JobControl® Expert software and USB connectivity. Ideal for detailed work, the Trotec SP500 machine we have for sale represents a significant opportunity. For more information about this laser cutting machine, please reach out to us.
Overview
- brand: Trotec
- year: 2020
- MODEL: SP500
- application type: Cutting
- Location: Germany
- machine type: CO2 Laser Cutting Machine
Technical Information - Trotec SP500
General Data
- Measurements width: 840 MM
- Measurements depth: 1130 MM
- Measurements height: 1380 MM
- Machine weight: 254 KG
Main drive
- Laserpower: 200 watts KW
- Laser type: Sealed-off CO2 laser
Workpiece
- Workpiece weight: 25 kg
Additional Equipment
- - Round engraving device
- - Suction system
- - Kaeser iComp 8 Tower T compressor (YOM 2022).
Additional Information
- Technical Machine Benefits:
- - Processing area: 1245 x 710 mm
- - Loading area: 1420 x 820 mm
- - Max. Processing speed: 2. 54 m/s
- - Acceleration: 19 m/s²
- - Motor: brushless dc servo motors repeatability: < ±30 µm across the entire processing area
- - Addressable accuracy: 4. 6 µm
- - Software: jobcontrol® expert
- - Interface: usb connection to pc
- - Control elements: machine keyboard, key switch, emergency stop
- - Kaeser icomp 8 tower t compressor: volume flow at 6 bar, 2100 rpm - 404 l/min; volume flow at 11 bar, 1800 rpm- 291 l/min; max. Overpressure- 11; speed range min/max- 1000-2100 rpm; nominal power drive motor- 3. 1kw; electrical supply - 380-480 v / 50-60 hz; dimensions - 840 x 1130 x 1380; mass - 254kg
- Qualitative Machine Benefits:
- - High repeatability and addressable accuracy for consistent, high-quality cutting.
- - Machine still under power // Operating hours max. 2000 // Used the machine to engrave wood and glass. We also cut wood.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
