TOS Kurim FOQ 80 Milling Machine

Show in original language

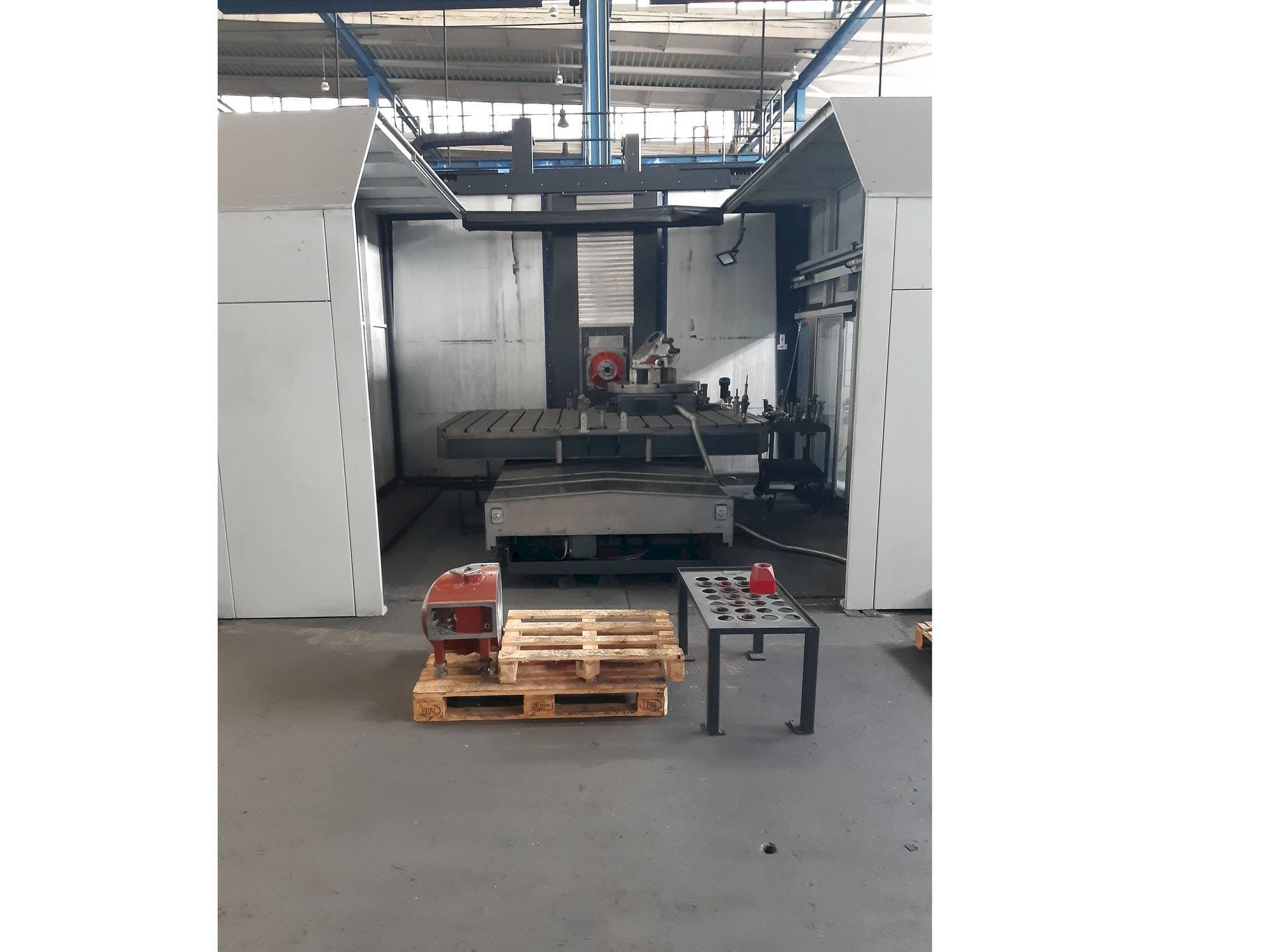

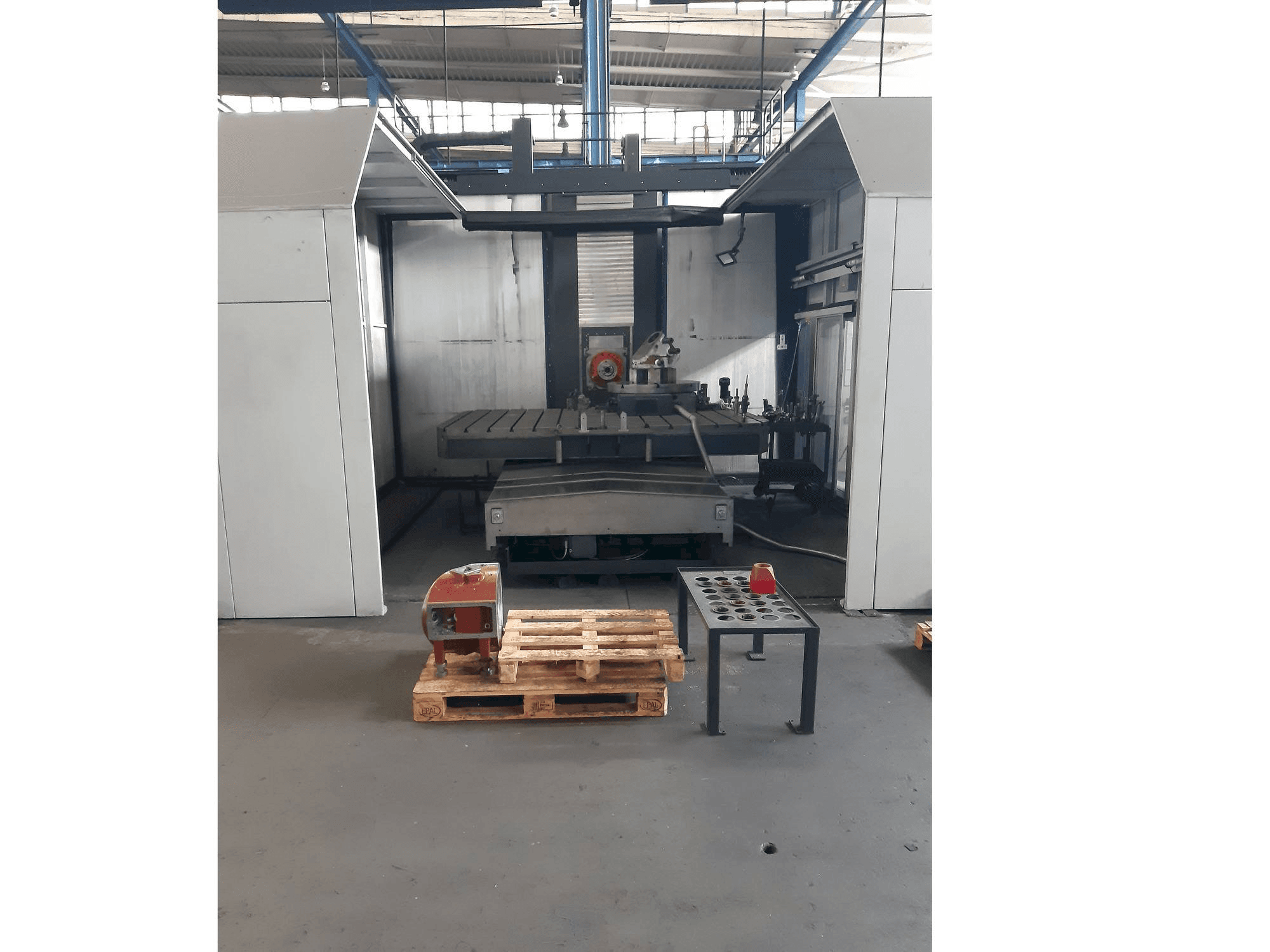

This TOS Kurim FOQ 80 Milling Machine was manufactured in the Czech Republic in the year 2005. This 7 axis machine operates through a Heidenhain iTNC 530 control unit. It can work with a spindle speed up to 4000 rpm. It has a table of 2000 mm outer length and 3000 mm outer width. The machine is in a very good condition.

Overview

brand: TOS Kurim
year: 2005
MODEL: FOQ 80
application type: Milling
Location: Czech Republic
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - TOS Kurim FOQ 80

General Data

Machine weight: 63000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Spindle motor power: 30 kW
Number of axis: 7

Movement

X-AXIS Movement: 2600 mm
Y-AXIS Movement: 1650 mm
Z-AXIS Movement: 825 mm

Workpiece

Workpiece weight: 25000 kg

Table

Outer length: 2000 mm
Outer width: 3000 mm

Tools

Slots in storage: 20
Max weight: 15 kg
Max tool diameter: 110/200 mm
Max tool length: 300 mm
Type of tool holder: HSK-A100

Media

Power consumption: 60 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle for interchangeable heads
- - Working feeds range x, y, z 1 – 30 000 mm/min
- - Maximal feed force 20 000 n
- - Spindle torque 2000nm
- - Head va1: 4000 rpm, 2000 nm, iso50 ad, din
- - 2-axis rotary head vk: 4000 rpm, 1000nm, iso50 ad, din
- - Rmp60 renishaw workpiece probe
- - High pressure cooling 30 bar
Qualitative Machine Benefits:
- - Very good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
