- Tongtai TMV-510T / APC Vertical Machining Center

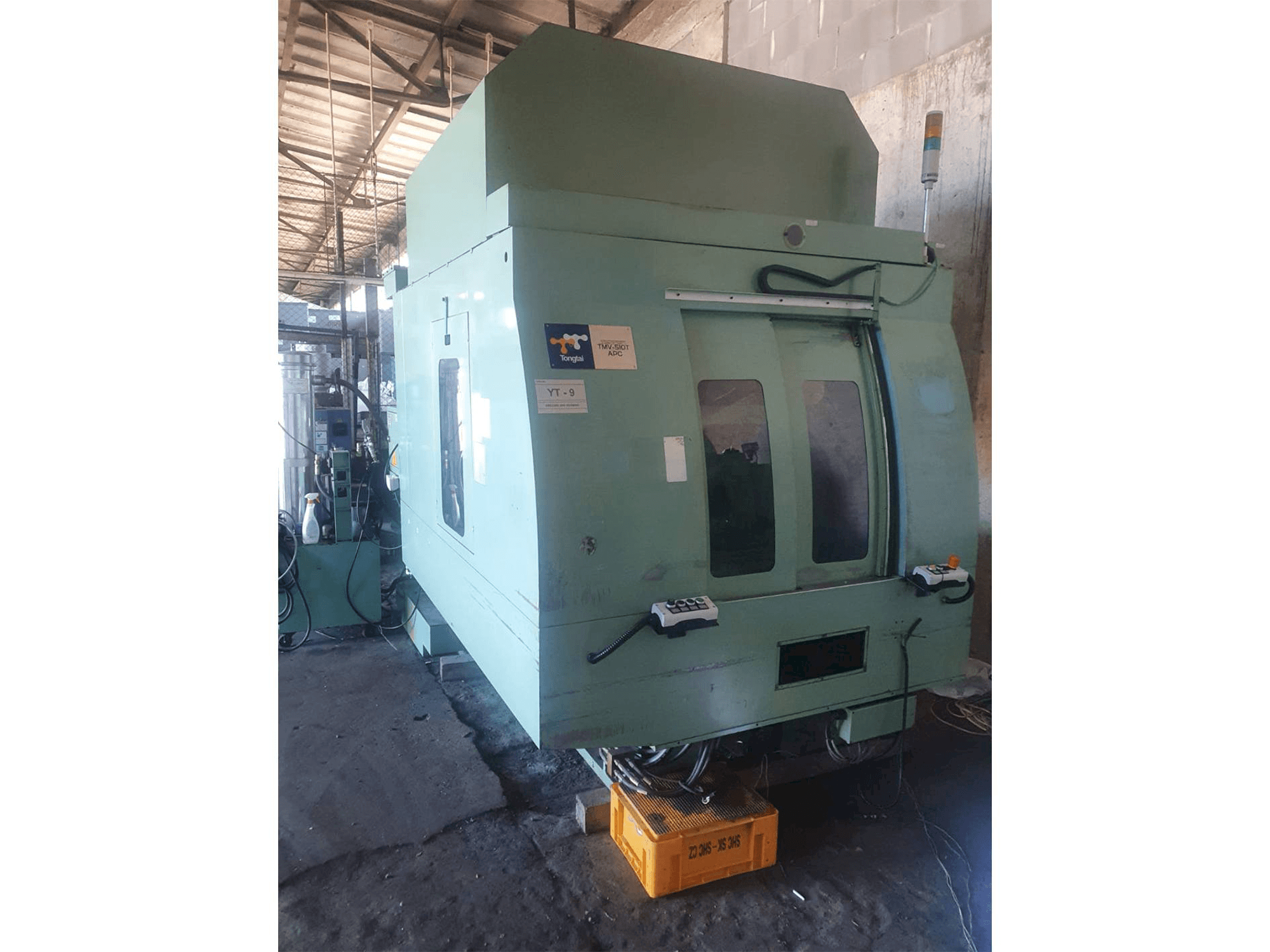

This Tongtai TMV-510T / APC Vertical Machining Center was built 2012 in Taiwan. It is equipped with a FANUC Series Oi-MD Control unit. The machine works with a spindle speed range up to 8000 rpm and a table size 600 x 360 mm. Machine is in good condition.
Overview
- brand: Tongtai
- year: 2012
- MODEL: TMV-510T / APC
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: FANUC Series
Technical Information - Tongtai TMV-510T / APC
General Data
- Measurements width: 3050 mm
- Measurements depth: 2000 mm
- Measurements height: 2450 mm
- Machine weight: 4300 kg
Control Unit
- Brand: FANUC Series
- Model: Oi-MD
Main drive
- Spindle speed range: 8000 1/MIN
- Spindle motor power: 5.5 / 3.7 kW
Movement
- X-AXIS Movement: 510 mm
- Y-AXIS Movement: 360 mm
- Z-AXIS Movement: 435 mm
Table
- Outer length: 600 mm
- Outer width: 360 mm
- Table load: 2x100 kg
Tools
- Number of index: 20 pc
- Max weight: 3 kg
- Max tool diameter: 68 mm
- Max tool length: 200 mm
Media
- Main electronic connection: 400V/50Hz
- Power consumption: 15 kVA
Additional Information
- Technical Machine Benefits:
- - 2 pallets
- Qualitative Machine Benefits:
- - Machine in good condition
- - Documentation available
- - Tests possible
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
