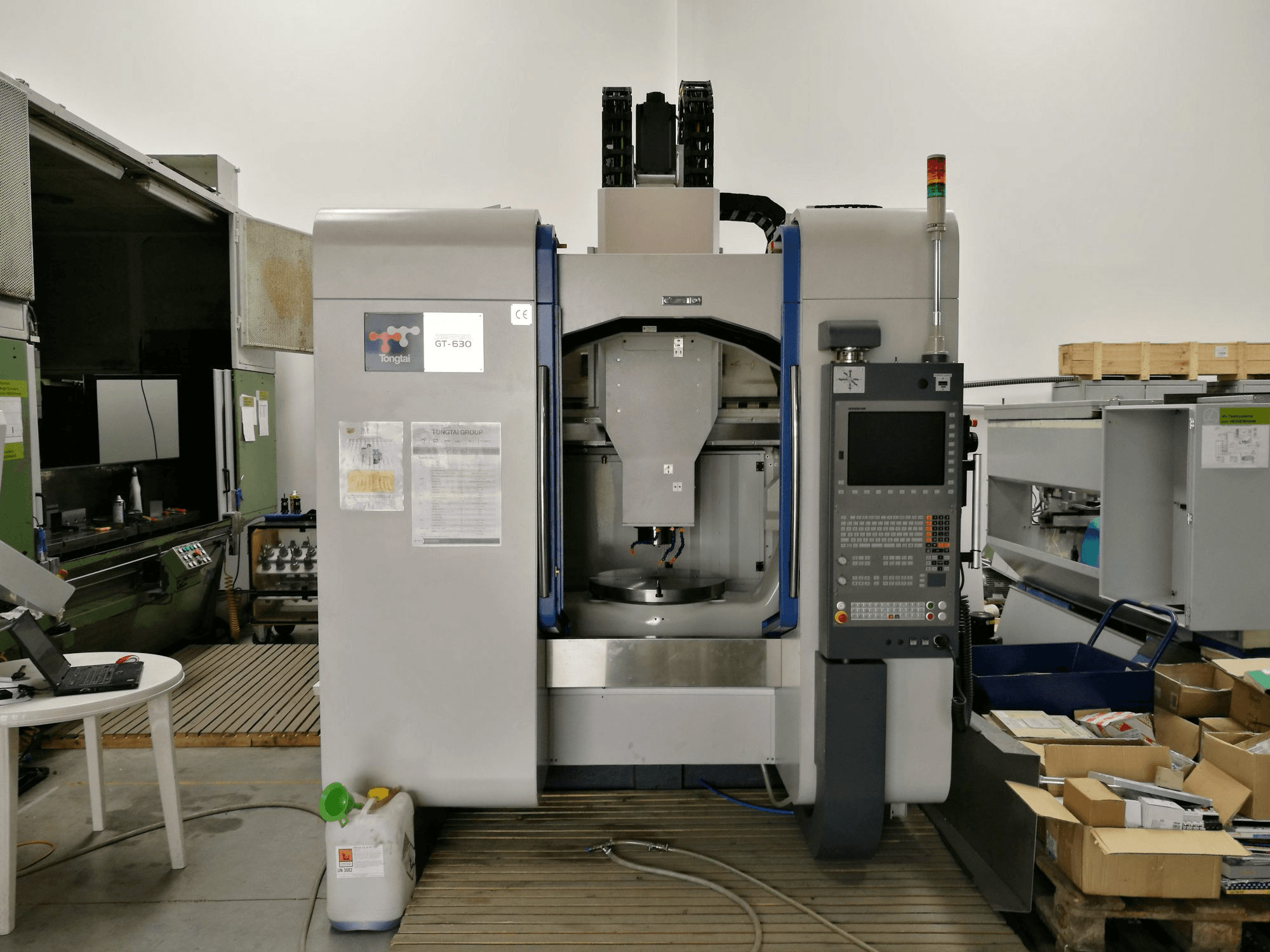

Tongtai GT-630 Vertical Machining Center

Show in original language

This new Tongtai GT-630 Vertical Machining Center was manufactured in 2015 in Taiwan and is equipped with a Heidenhain iTNC 530 HSC II Control unit. This machine has 0 production hours and was exclusively used as an exhibition item at trade fairs. As this machine is new, it comes with a warranty of 12 months or 3000 production hours.

Overview

brand: Tongtai
year: 2015
MODEL: GT-630
production hours: 0
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Tongtai GT-630

General Data

Measurements width: 5400 mm
Measurements depth: 2200 mm
Measurements height: 3400 mm
Machine weight: 16000 kg

Control Unit

Model: iTNC 530 HSC II
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 60-20000 1/min
Spindle bore: BBT40

Movement

X-AXIS Movement: 760 mm
Y-AXIS Movement: 820 mm
Z-AXIS Movement: 560 mm
A-AXIS Movement: -120º -30º MM
C-AXIS Movement: 360ª MM

Workpiece

Workpiece drm: 800 mm
Workpiece x: 500 mm

Table

Outer length: 630 mm

Tools

Slots in storage: 30
Max weight: 7 kg
Max tool diameter: 75 / 120 mm
Max tool length: 300 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 40 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
