SUNMILL JMV-1100 Vertical Machine Center

Show in original language

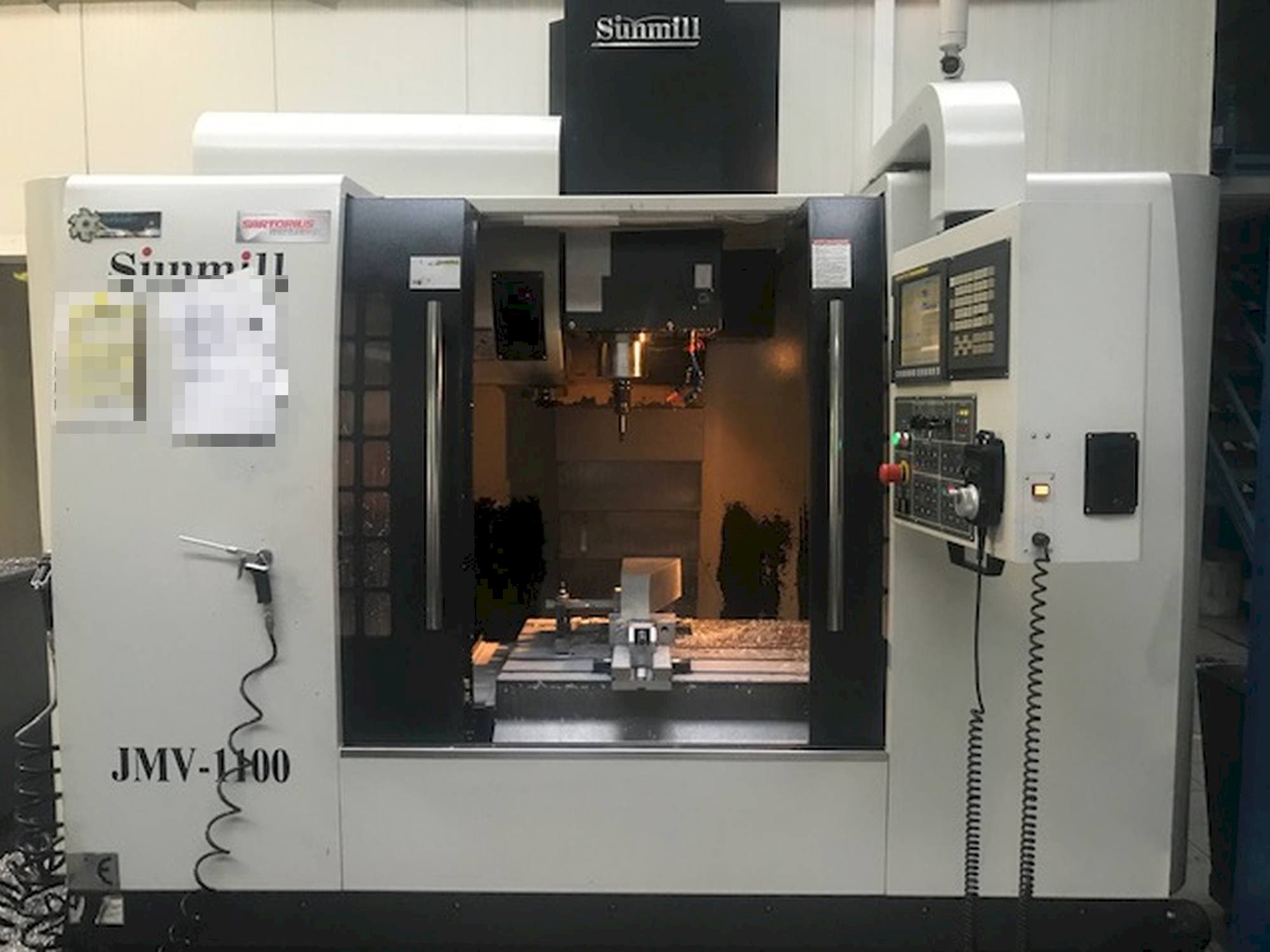

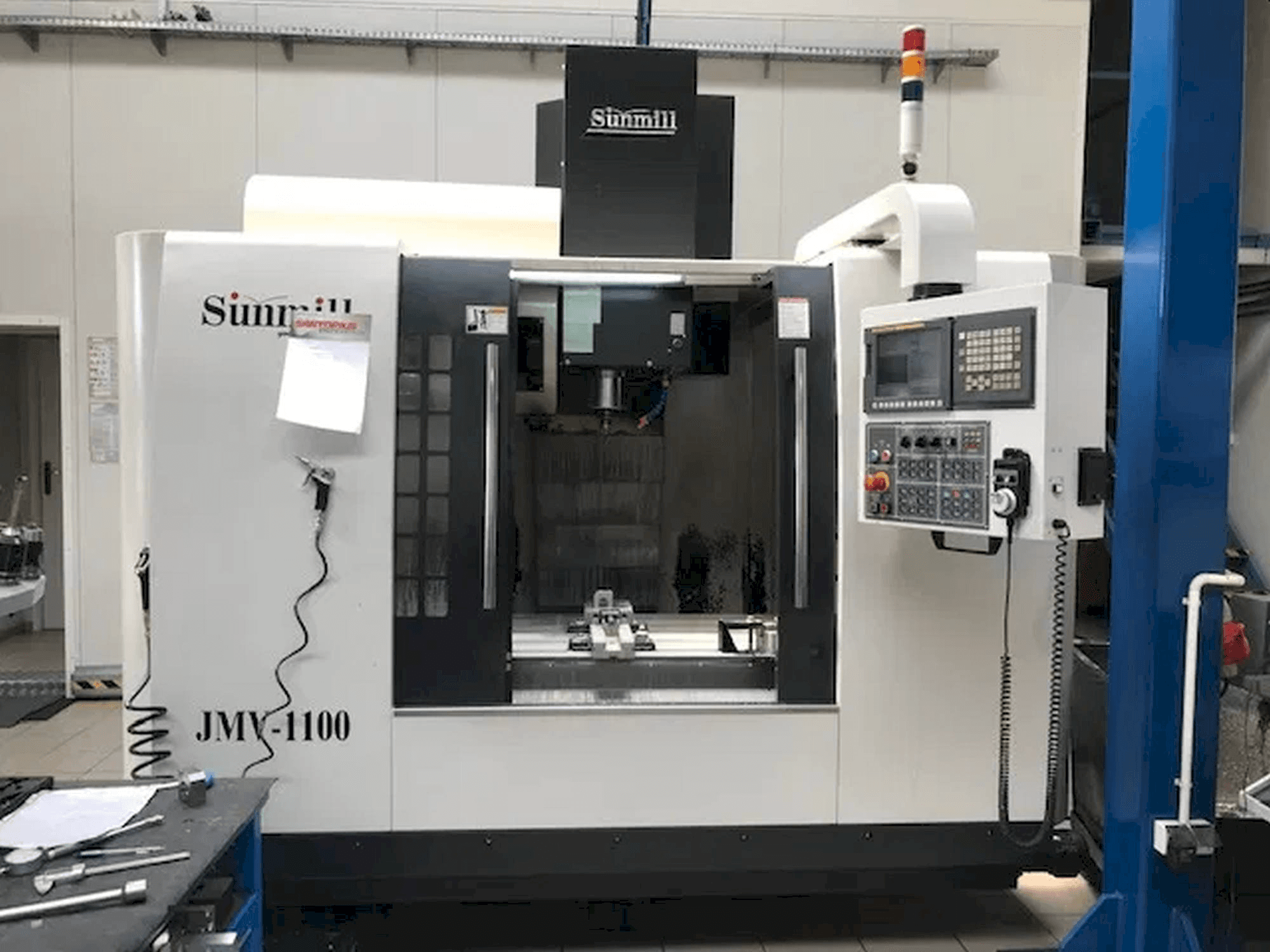

This SUNMILL JMV-1100 Vertical Machine Center was manufactured in the year 2014 in Taiwan. It has a total of 7900 working hours. This machine operates through a Fanuc 0i-MD control unit. This 3 axis machine can work with a spindle speed up to 12000 rpm. It includes additional equipment such as wireless probes of workpiece and tools. The machine is in very good, working condition.

Overview

brand: SUNMILL
year: 2014
MODEL: JMV-1100
production hours: 7900
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - SUNMILL JMV-1100

General Data

Measurements width: 2560 mm
Measurements depth: 2870 mm
Measurements height: 3430 mm
Machine weight: 7500 kg

Control Unit

Model: 0i-MD
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 1250 mm
Outer width: 650 mm
Table load: 880 kg

Media

Main electronic connection: 400V / 50Hz
Power consumption: KVA 20

Additional Equipment

- wireless probes of workpiece and tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle taper: bt-40
- - Vertical tool magazine 24 + 1
- - Cooling through the spindle
- - Full documentation. Still at the production and ready for tests.
- - Vertical tool magazine 24 + 1
Qualitative Machine Benefits:
- - Serviced always by the polish agent service.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
