SUMITOMO SHI DEMAG - Systec 500/9200- 6400RU-INJ-SUM-2012-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- SUMITOMO SHI DEMAG Systec 500/9200- 6400 Injection Moulding Machine

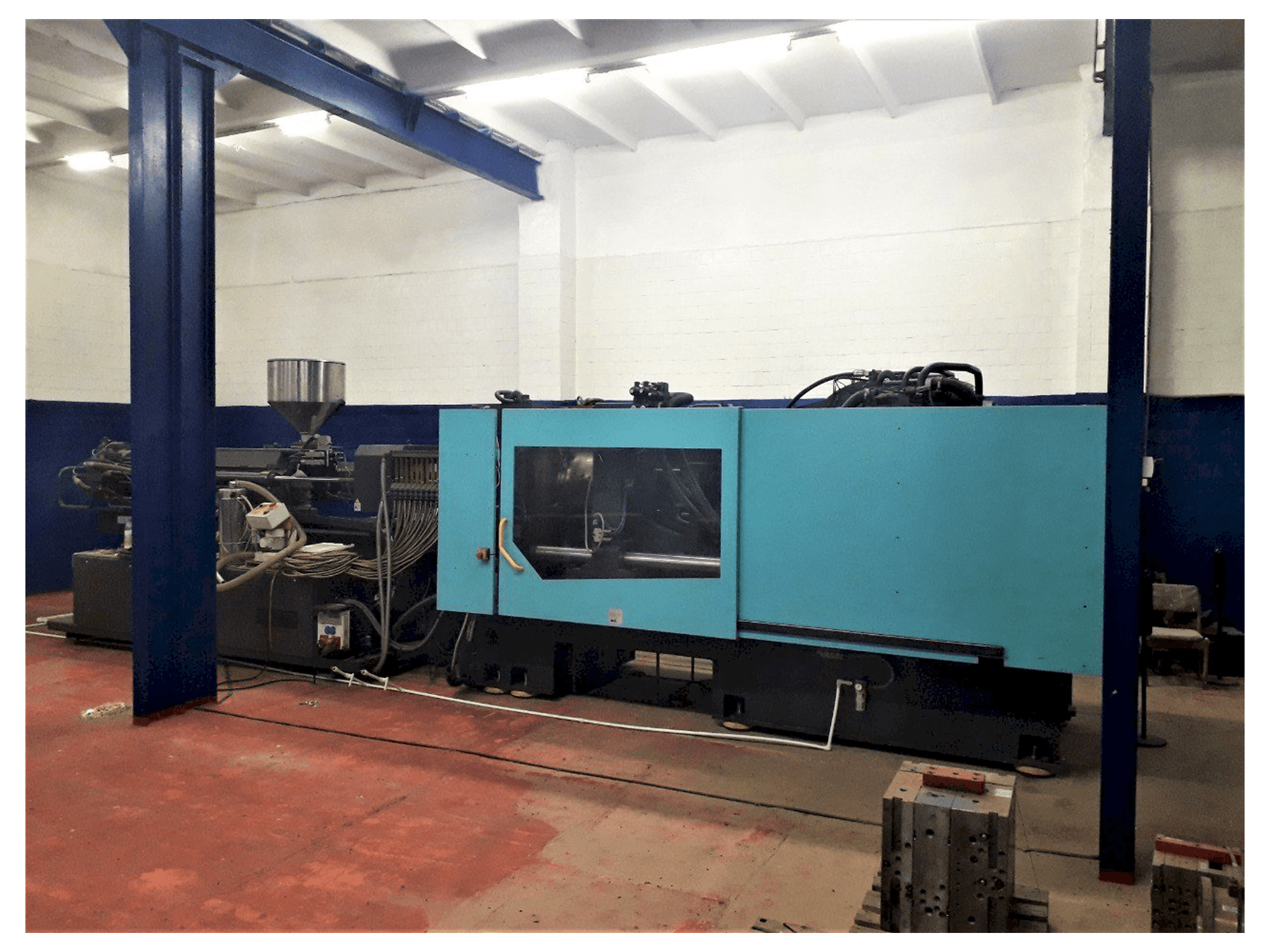

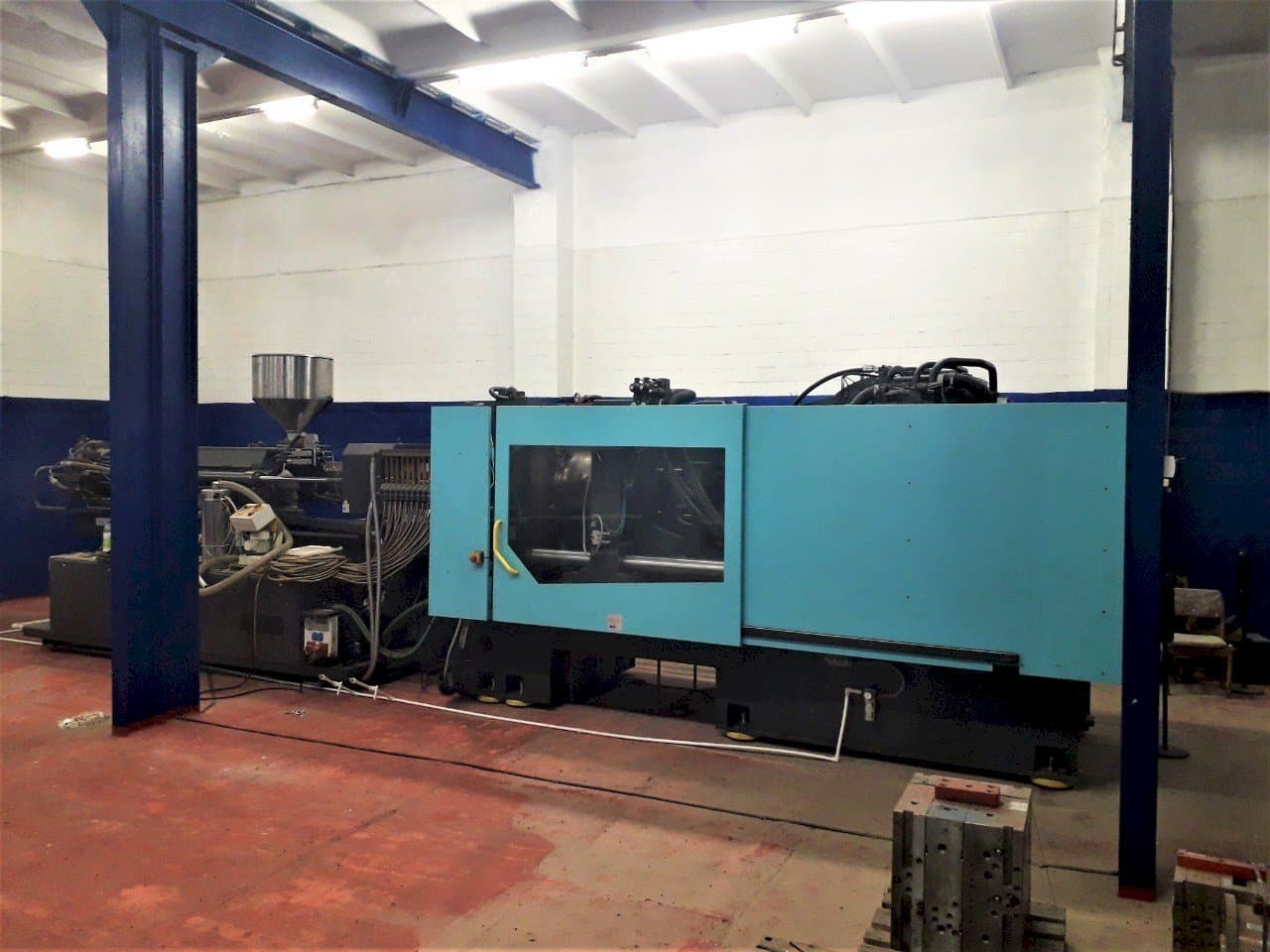

This SUMITOMO SHI DEMAG Systec 500/9200- 6400 Injection Moulding Machine was manufactured in Germany in the year 2012. It has a production record of approximately 12000 hours. This machine can work with a clamping force of 5000 kN and an injection pressure of 1895 bar.
Overview
- brand: SUMITOMO SHI DEMAG
- year: 2012
- MODEL: Systec 500/9200- 6400
- production hours: 12000
- application type: Injection Moulding
- Location: Russia
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - SUMITOMO SHI DEMAG Systec 500/9200- 6400
General Data
- Machine weight: 24500 kg
Injection Unit
- Screw diameter: 95 mm
- Stroke volume: 3367 cm CM³
- Injection pressure: 1895 bar
Clamping unit
- Clamping force: 5000 kN
- Size of mold platens: 1300 x 1300 mm
Additional Information
- Technical Machine Benefits:
- - Controller С-dias
- - Size between the columns is 920 x 920mm
- - Opening between the plates is 1770/2000 mm
- - Package: min-ave. Shapes-400mm. Max. -920/1150mm
- - Weight of the mold is 8. 7 t
- - Ring diameter is 420 mm
- - Stroke of 880 mm
- - Pusher stroke is 260mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
