➤ Used SUMITOMO SHI DEMAG Intelect 280/685-1600 For Sale

Show in original language

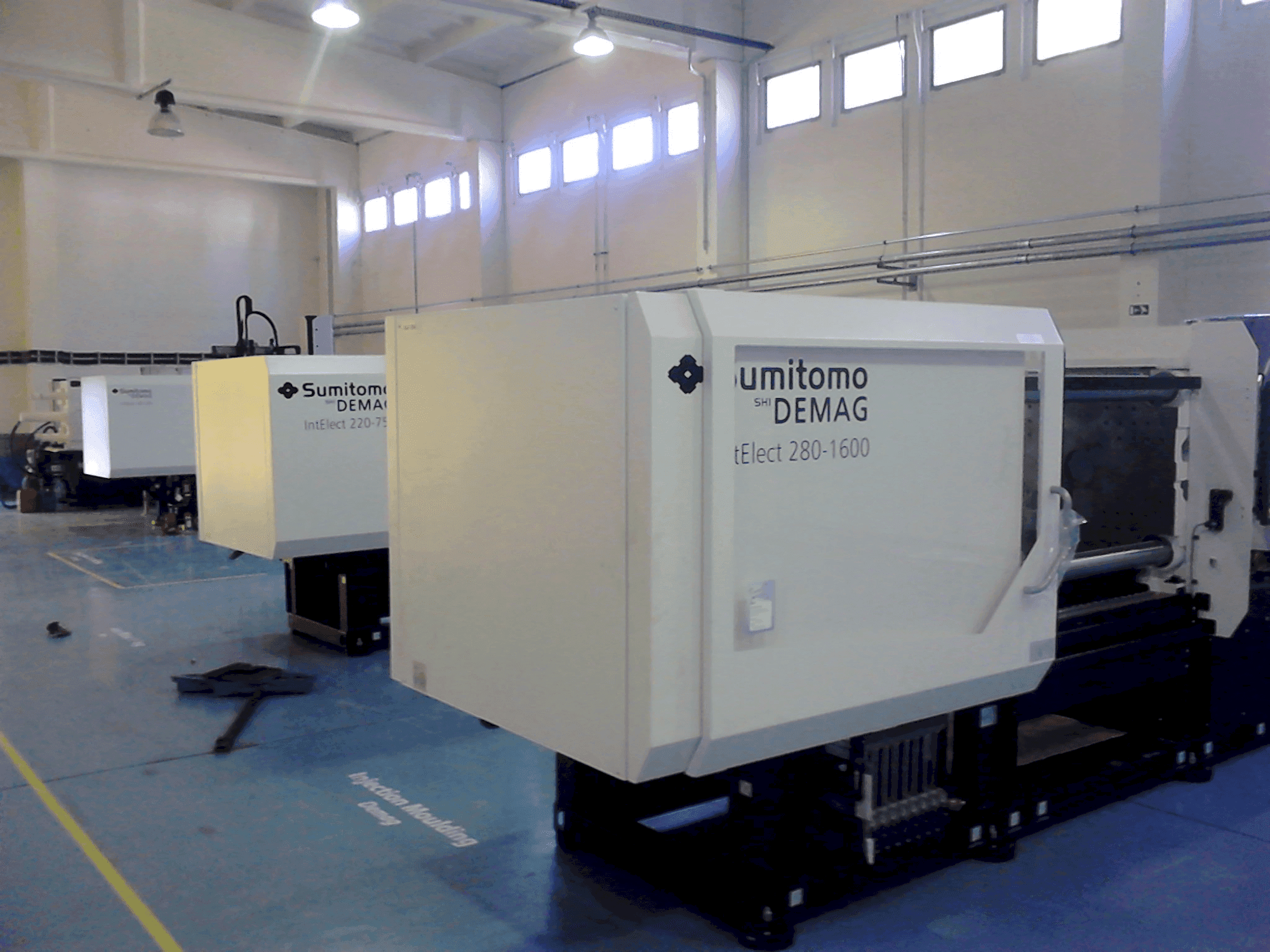

This 6-axis SUMITOMO SHI DEMAG Intelect 280/685-1600 was manufactured in 2013. It is an electrical injection moulding machine known for its precision and efficiency. Ideal for complex moulding tasks, this machine represents a significant asset for any production line. Consider the opportunity to buy this SUMITOMO SHI DEMAG Intelect 280/685-1600 electrical injection moulding machine. Contact us for more information.

Overview

brand: SUMITOMO SHI DEMAG
year: 2013
MODEL: Intelect 280/685-1600
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine
availability: Immediately

Technical Information - SUMITOMO SHI DEMAG Intelect 280/685-1600

General Data

Measurements width: 1720 mm
Measurements depth: 7250 mm
Measurements height: 2030 mm
Machine weight: 13700 kg

Main drive

Number of axis: 6

Injection Unit

Screw diameter: 50 mm
Nozzle pressure: 58 kN

Clamping unit

Clamping force: 2800 kN
Opening stroke: 600 mm
Mould height min: 350 mm
Mould height max: 620 mm
Ejector stroke: 150 mm
Ejector force for / back: 58 kN

Additional Equipment

- Included with Sepro Robot SDR 22

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum projection of the drive with nozzle lift-off: 39 mm
- - Clamping unit: 280
- - Locking force: 3080 kn
- - Maximum platen distance: 1220 mm
- - Mold mounting platens (h x v): 950 x 885 mm
- - Clear column distance (h x v): 685 x 635 mm
- - Injection unit: 1600
- - L/d ratio: 20
- - Injection flow (ps) without accumulator: 314 cm³/s
- - Metering stroke: 285 mm

Extra information

- Maximum Nozzle Travel: 450 mm Nozzle Immersion Depth (SVO): 20 mm Material Hopper Capacity: 110 l Maximum Injection Speed, Standard: 160 mm/s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
