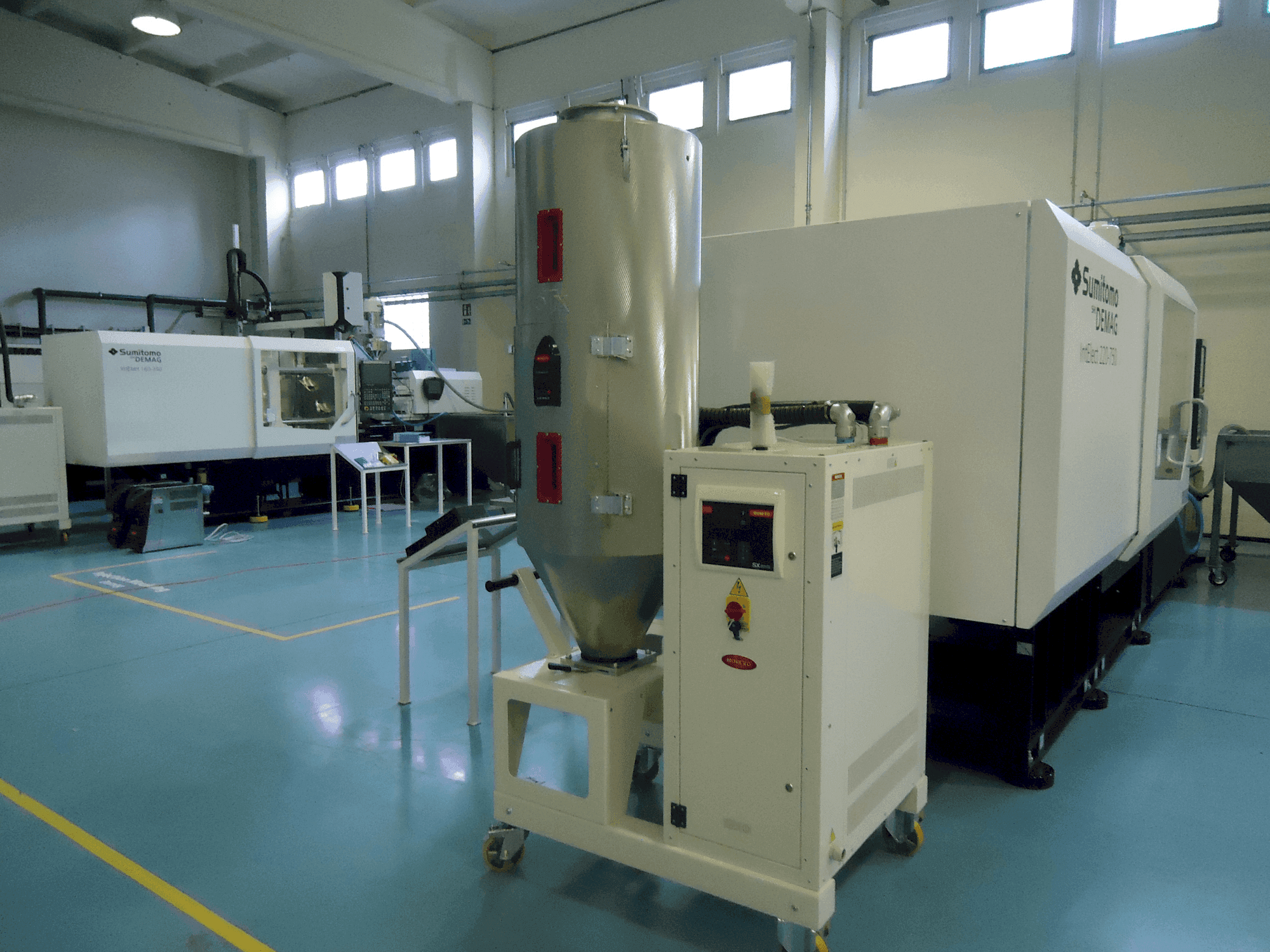

SUMITOMO SHI DEMAG - IntElect 220/610-750 smartDE-INJ-SUM-2013-00002

Additional Equipment

• - Sepro Robot SDR 22

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Screw diameter: 45 mm / screw geometry: standard / l/d ratio: 20 / specific injection pressure: 2150 bar / maximum shot volume: 329 cm³ / maximum shot weight: 293 g / injection rate without accumulator: 254 cm³/s
  • - Dosing stroke: 207 mm / maximum nozzle stroke: 450 mm / nozzle immersion depth: 20 mm / nozzle contact force: 58 kn / number of heating zones: 4 / hopper capacity: 50 l / maximum injection speed: 160 mm/s
  • - Holding force: 2420 kn / maximum opening stroke: 550 mm / minimum mold height: 300 mm / maximum mold height: 580 mm / maximum platen distance: 1130 mm
  • - Mold clamping plates (hxv): 880x830 mm / clearance between tie bars (hxv): 610x560 mm / ejector stroke: 150 mm / ejector force: 58 kn
  • - Dry cycle time according to euromap 6 (stroke): 427 mm
  • - Net weight without oil: 10100 kg

Payment Terms

• Payment in advance

• Asset Financing
