SUMITOMO SHI DEMAG - Ergotech System 1100-200IE-INJ-DEM-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
DEMAG Ergotech System 1100-200 Injection Moulding Machine

Show in original language

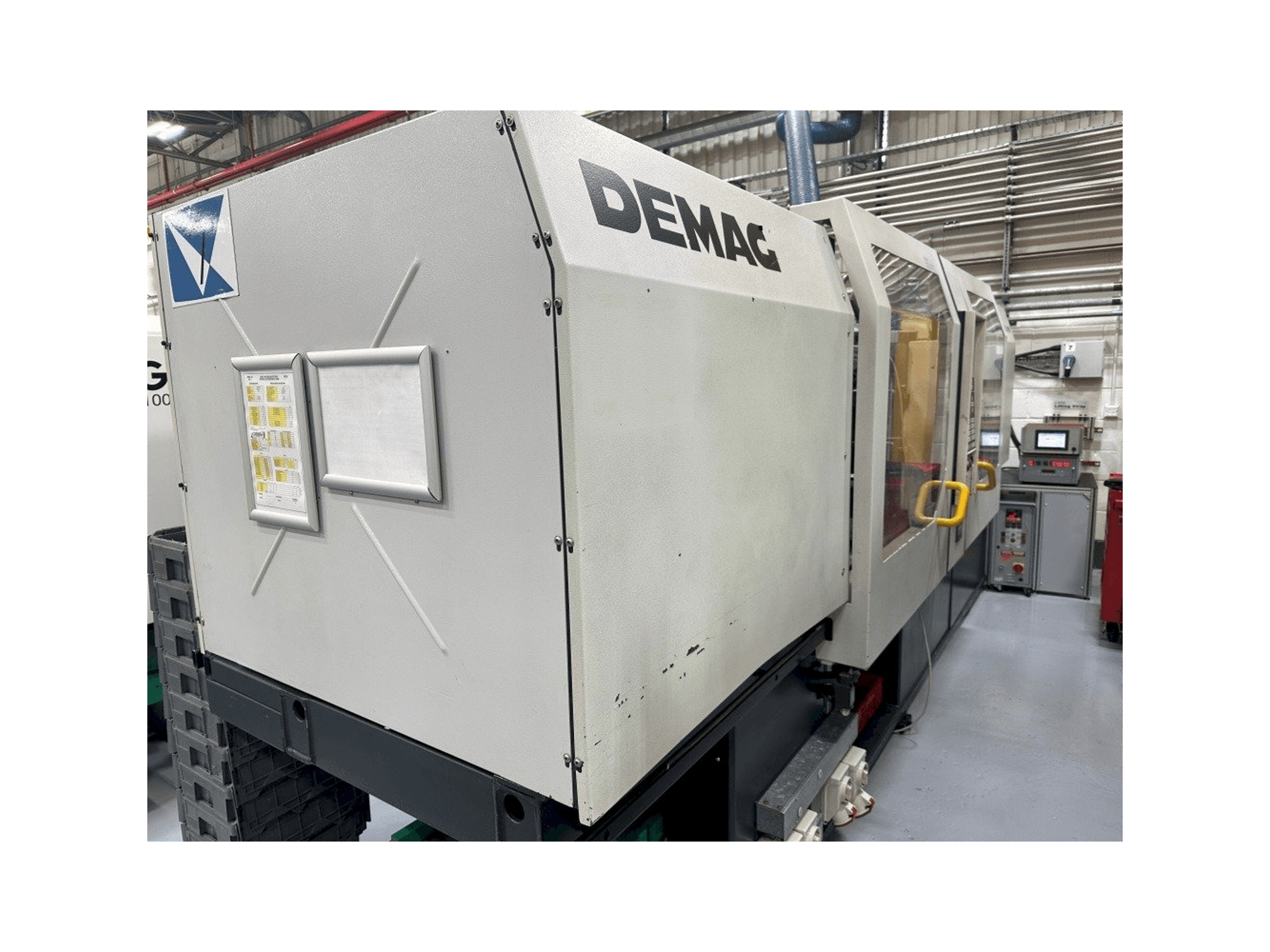

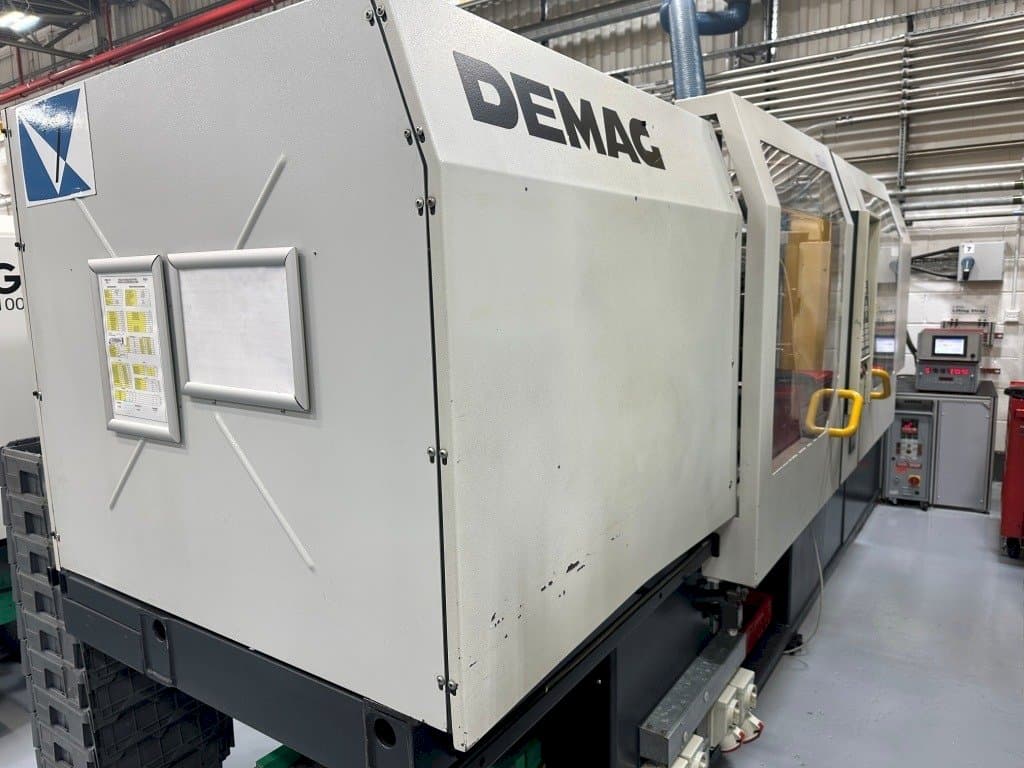

This DEMAG Ergotech System 1100-200 Injection Moulding Machine was manufactured in the year 1998 in Germany and has 128000 hours. It is equipped with a Demag NC4 control unit. The machine has a clamping force of 1100 kN, a screw diameter of 30 mm and it is in very good condition.

Overview

brand: SUMITOMO SHI DEMAG
year: 1998
MODEL: Ergotech System 1100-200
production hours: 128000
application type: Injection Moulding
Location: Ireland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - SUMITOMO SHI DEMAG Ergotech System 1100-200

General Data

Measurements width: 4700 MM
Measurements depth: 1600 MM
Measurements height: 2000 MM
Machine weight: 5500 KG

Control Unit

Model: NC4
CNC main language: ENGLISH
CNC language customizable: Yes

Injection Unit

Screw diameter: 30 MM
Shot weight: 94 G/PS
Stroke volume: 106 CM³
Injection pressure: 1990 BAR

Clamping unit

Clamping force: 1100 kn
Opening stroke: 600 mm
Max open daylight: 850 mm
Distance between bars: 470 mm
Mould height min: 250 mm
Size of mold platens: 670 mm
Ejector stroke: 180 mm
Ejector force for / back: 41 kn

Media

Main electronic connection: 400 v

Additional Equipment

- Conveyor

Additional Information

Machine history

Material type: Plastic
End product: Automotive parts
Industries: Automotive industry

Machine Benefits

Technical Machine Benefits:
- - 110t machine
Qualitative Machine Benefits:
- - Very good condition
- - Well maintained

Extra information

- Hopper and Kistler Unit in photos not included in sale

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
