- STYLE MC 1500 Vertical Machining center

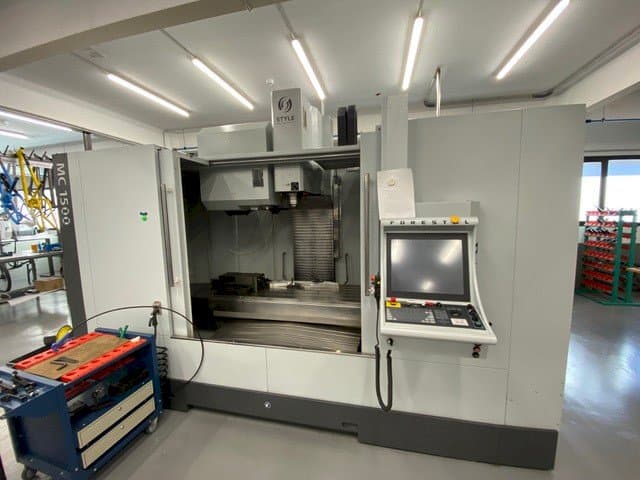

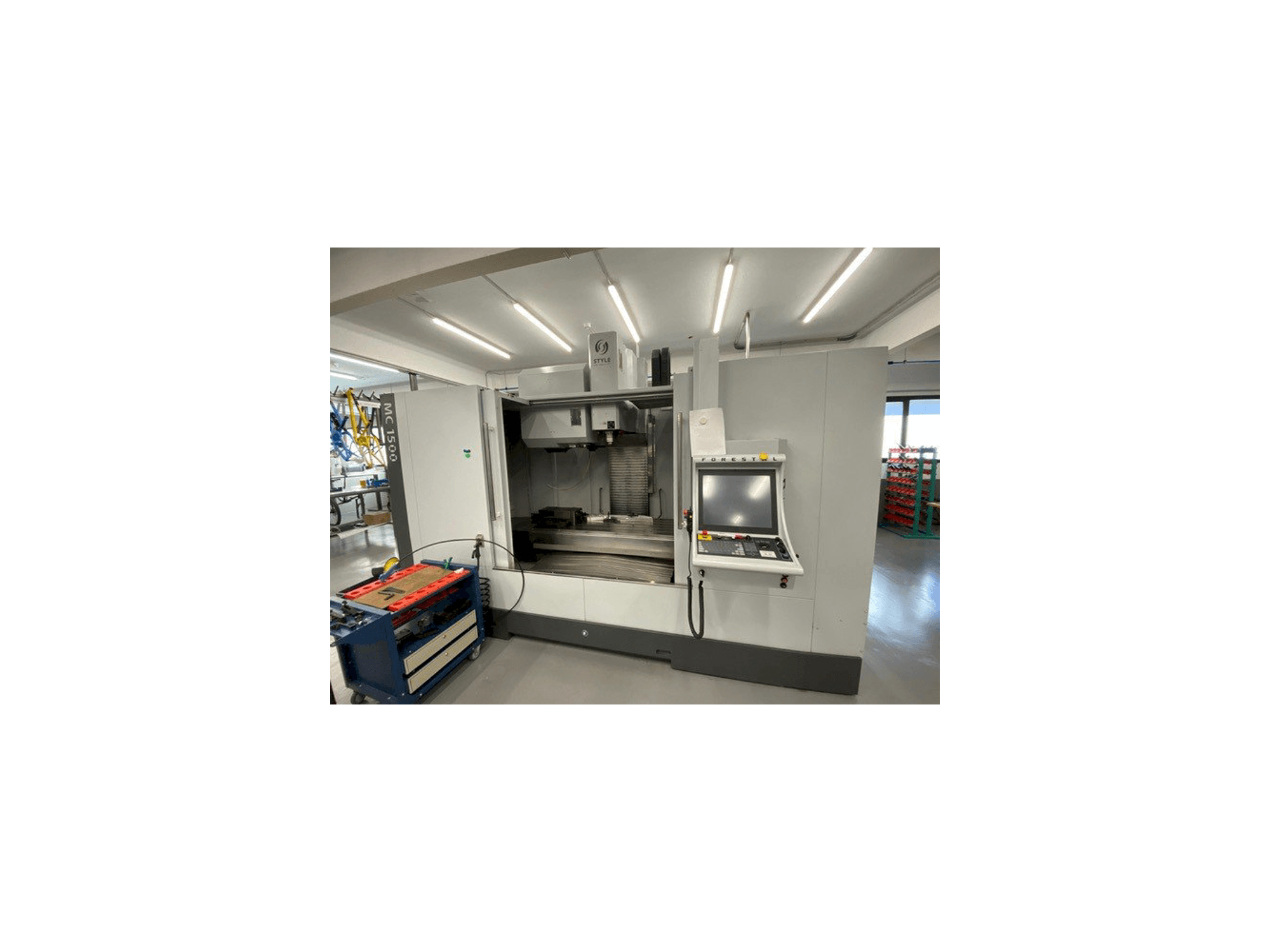

This STYLE MC 1500 Vertical Machining center was manufactured in the year 2020 in the Netherlands and has 2255 production hours. It has 3 axis. The machine has a spindle speed of 10000 rpm. Original machine PDF (EN) is attached, see below.
Overview
- brand: STYLE
- year: 2020
- MODEL: MC 1500
- production hours: 2255
- application type: Milling
- Location: Andorra
- machine type: Machining centers (vertical)
- availability: Immediately
Technical Information - STYLE MC 1500
General Data
- Measurements width: 4200 mm
- Measurements depth: 2400 mm
- Measurements height: 3200 mm
- Machine weight: 6600 kg
Main drive
- Spindle speed range: 10000 1/MIN
- Spindle motor power: 11 kW
- Tool taper: BT 40
- Number of axis: 3
Movement
- X-AXIS Movement: 1500 mm
- Y-AXIS Movement: 680 mm
- Z-AXIS Movement: 880 mm
Table
- Outer length: 1700 mm
- Outer width: 600 mm
- Height adjustment: 850 mm
- Distance between: 100-980 mm
- Table load: 1000 kg
Additional Information
- Technical Machine Benefits:
- - Distance spindle nose to z-axis way cover 720 mm
- - X, y and z-axis: rapid feed x/y/z 24/24/24 m/min feed rate x/y/z 12/12/12 m/min
- - Guide way type linear way
- - Tool changer
- - Vertical automatic tool changer pos. 24
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
