STYLE - 510NL-TUR-STY-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

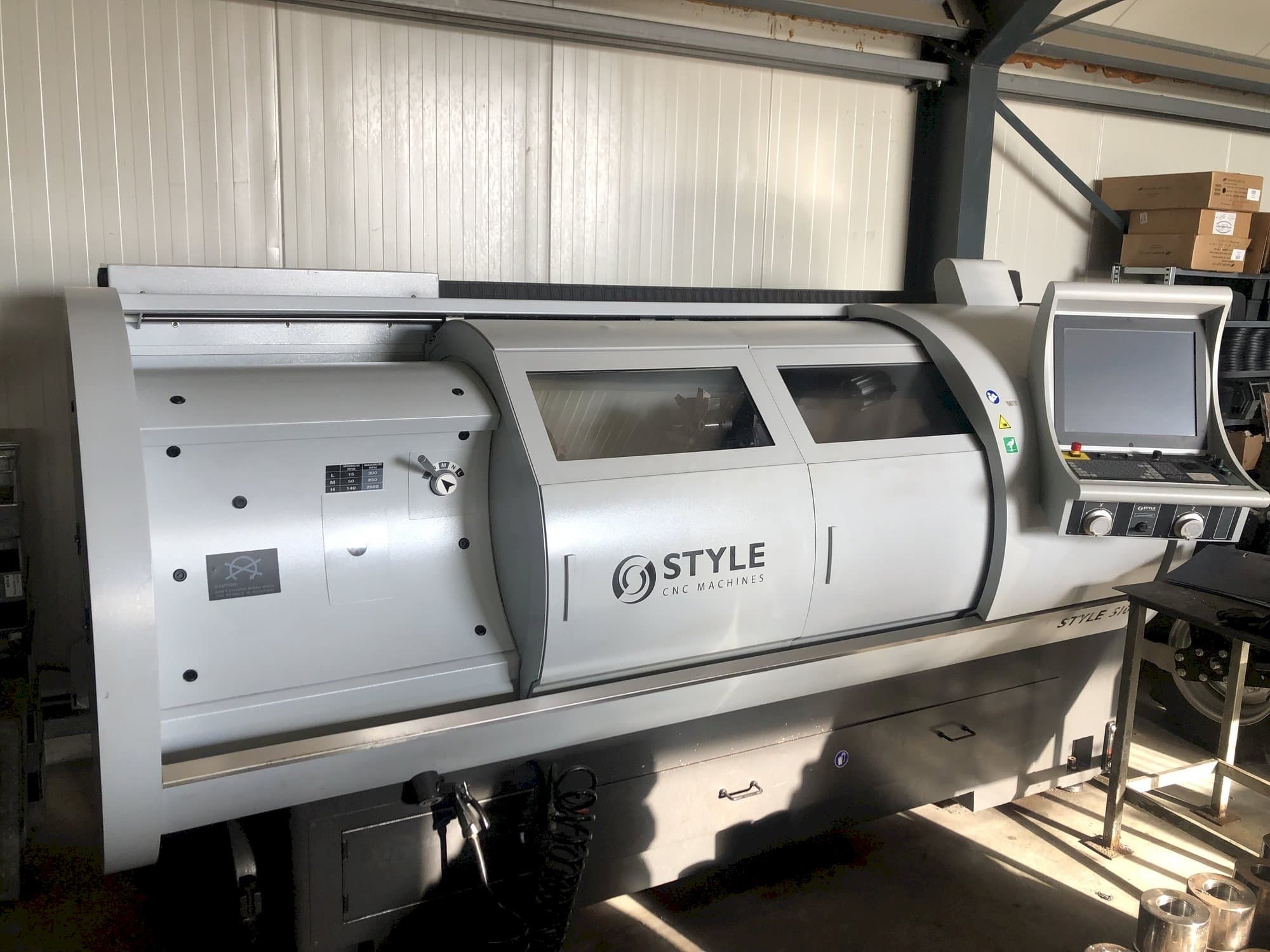

This Style 510 Lathe was manufactured in the year 2018 in The Netherlands and has 1434 hours, of which 457 are spindle hours. It is equipped with a Style control unit. The machine has a spindle speed of 2500 rpm.

Overview

brand: STYLE
year: 2018
MODEL: 510
production hours: 1434
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - STYLE 510

General Data

Measurements width: 3200 mm
Measurements depth: 1800 mm
Measurements height: 1800 mm
Machine weight: 2700 kg

Main drive

Spindle speed range: 2500 1/MIN

Additional Equipment

- Automatic tool changer, 8 positions, VDI-40
- 11 kW main engine
- Stronger cooling pump incl. spray gun
- Coolant switch
- Speed potentiometer

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter over bed: 510 mm
- - Turning diameter over support: 300 mm
- - Distance between centers: 1350 mm
- - Bed width: 330mm
- - Max. Weight between centers: 600 kg
- - Passage spindel: 80mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
