Stratasys Objet500 Connex3 3D Printer

Show in original language

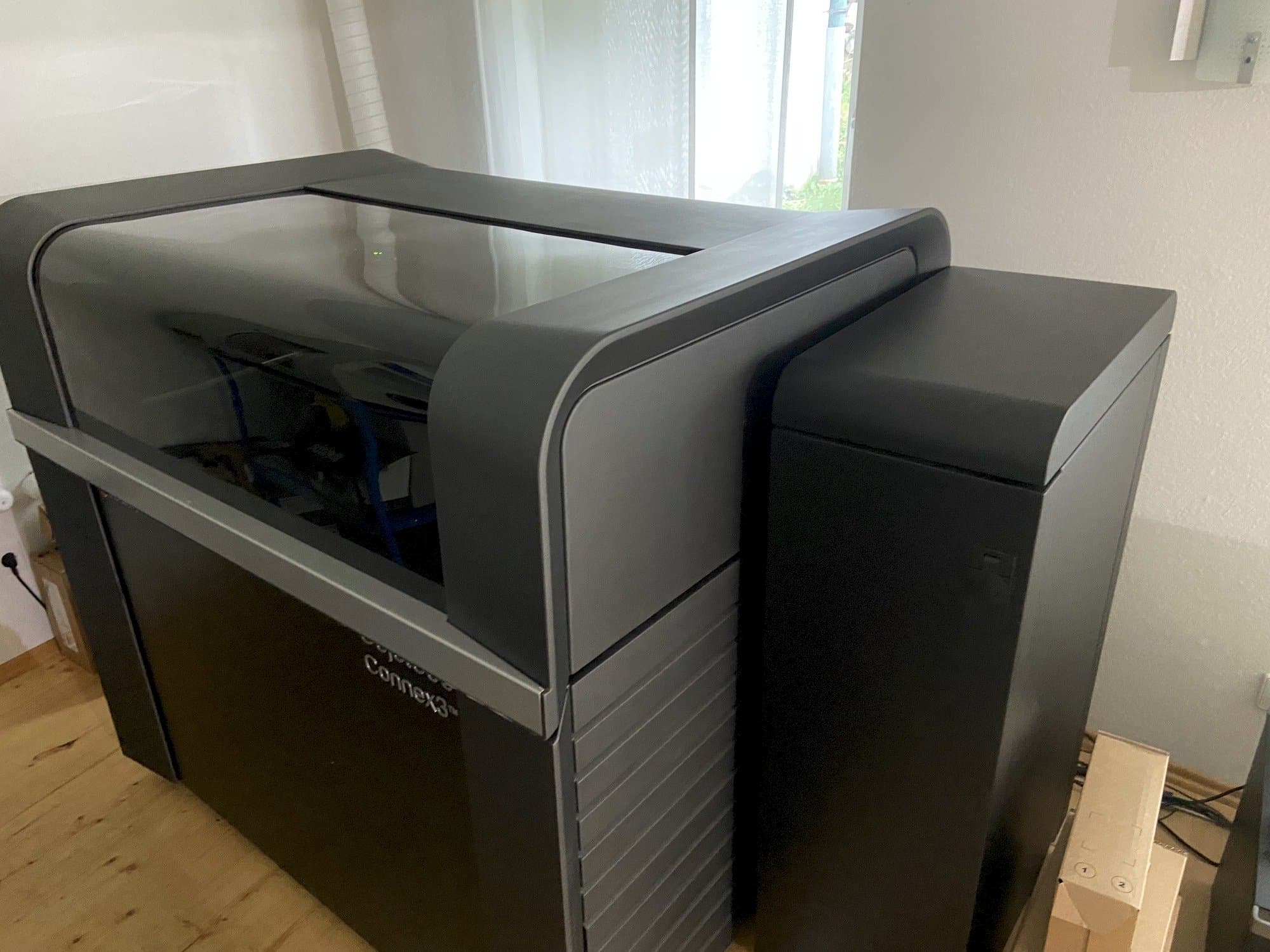

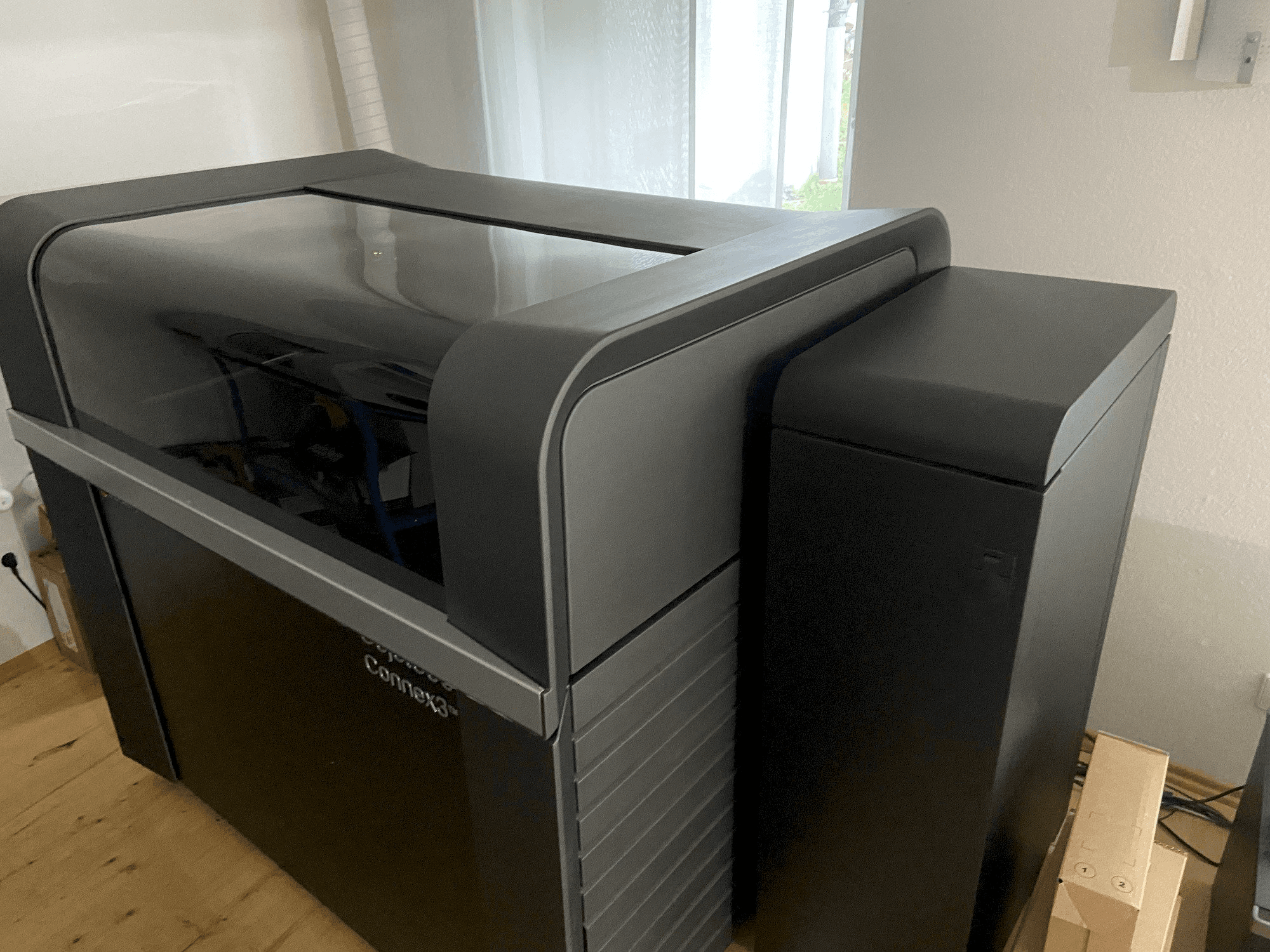

This Stratasys Objet500 Connex3 3D Printer was made in the year 2018 in Israel. Three materials can be printed at the same time, i.e. colored models are possible, hard/soft material combinations are possible, and transparent components can be printed. The high pressure cleaning system is included. Very low hours, only around 1600h. See tech specs PDF (English) and noozle test PDF attached for more details. Check out the video gallery to see the 3D Printer in action.

Overview

brand: Stratasys
year: 2018
MODEL: Objet500 Connex3
application type: 3D Printing
Location: Germany
machine type: Plastic 3D Printer
availability: Immediately

Technical Information - Stratasys Objet500 Connex3

General Data

Measurements width: 1400 mm
Measurements depth: 1260 mm
Measurements height: 1100 mm
Machine weight: 430 kg

Media

Main electronic connection: 110-240 VAC 50/60Hz; 1.5 kW single phase
Ambient temperature: Temperature 18-25°C (64-77°F); relative humidity 30-70% (non-condensing) °C

Additional Equipment

- Various spare and wear parts in stock
- The high pressure cleaning system is included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Three materials can be printed at the same time
- - Colored models are possible
- - Hard/soft material combinations are possible
- - Maximum build size (xyz): 490 x 390 x 200 mm (19. 3 x 15. 4 x 7. 9 in. )
- - System size and weight:1400 x 1260 x 1100 mm (55. 1 x 49. 6 x 43. 4 in. ); 430 kg (948 lbs. ) material cabinet: 330 x 1170 x 640 mm (13 x 46. 1 x 26. 2 in. ); 76 kg (168 lbs. )
- - Resolution: x-axis: 600 dpi; y-axis: 600 dpi; z-axis: 1600 dpi
- - Accuracy: up to 200 microns for full model size (for rigid materials only, depending on geometry, build parameters and model orientation)
- - Minimum layer thickness: horizontal build layers as fine as 16 microns (. 0006 in. )
- - Build modes: digital material: 30-micron (. 001 in. ) resolution // high quality: 16-micron (. 0006 in. ) resolution // high speed: 30-micron (. 001 in. ) resolution
- - Software: objet studio™ intuitive 3d printing software. Compatible with grabcad print for use with job reports, scheduling and reports monitoring
Qualitative Machine Benefits:
- - Model materials: rigid opaque: veropurewhite™, verowhiteplus™, veroblackplus™, verogray™, veroblue™, verocyan™, veromagenta™, veroyellow™, veromagentav™, veroyellowv™ // rubber-like: agilus30™, tangoplus™, tangoblackplus™, tangoblack™, tangogray™ // transparent: veroclear™ and rgd720 // simulated polypropylene: rigur™ and durus™ // high temperature // bio-compatible
- - Digital materials: digital abs plus™ and digital abs2 plus™ in ivory and green // hundreds of vibrant, repeatable colors in opaque and translucent // rubber-like blends in a range of shore a values and color // simulated polypropylene materials with improved heat resistance
- - Material options: over 1,000
- - Maximum materials per part: 82
- - Support material: sup705 (waterjet removable) // sup706 (soluble)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
