Starrag - SX-051BPL-MIL-STA-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

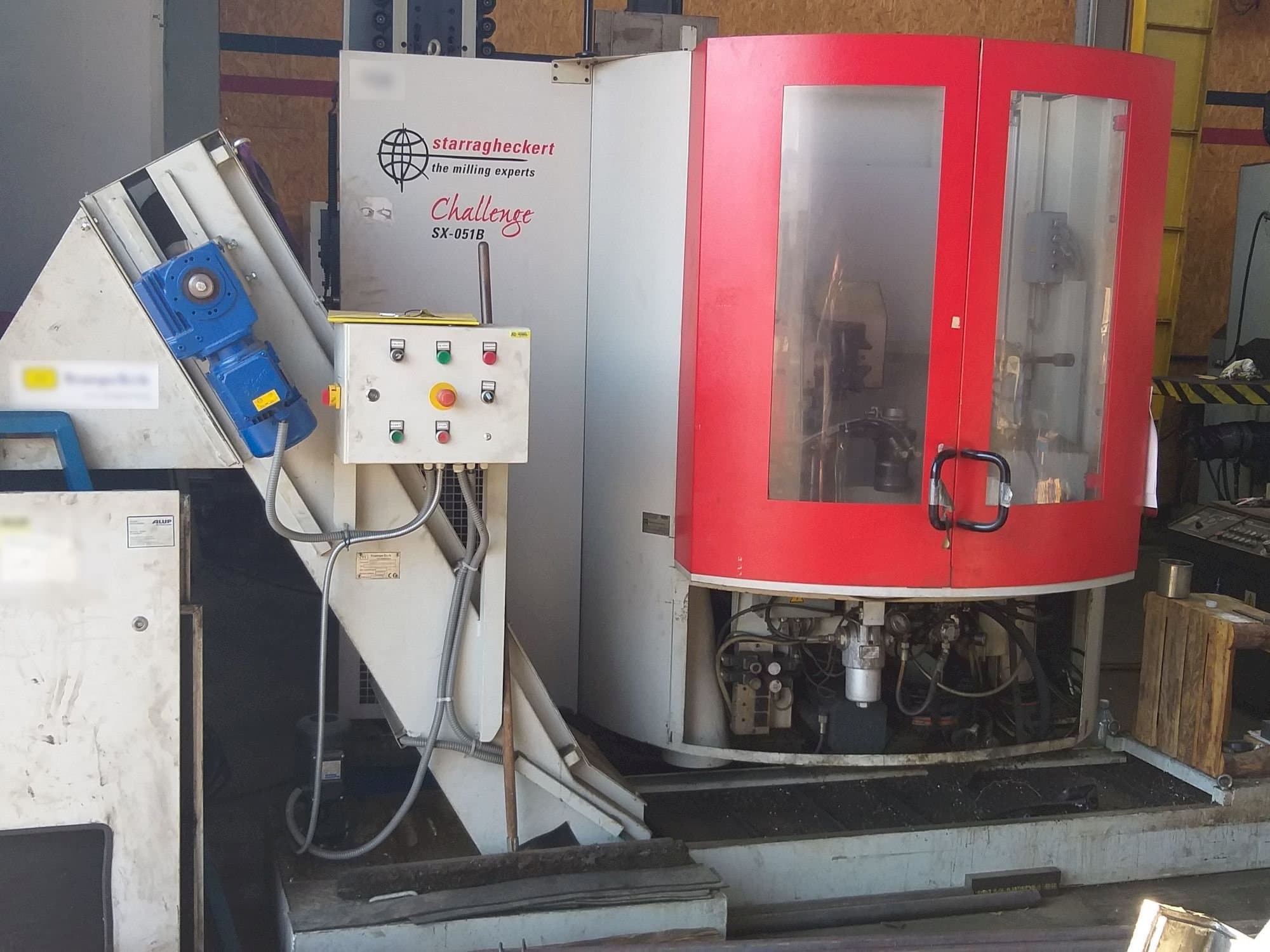

This Starrag SX-051B Horizontal Machining Center was built in 2002. It is operated through a SIEMENS 840 D control unit. This 5 axis machine works with a spindle speed up to 15000 rpm. It includes a EDGECAM postprocessor and some tool holders.

Overview

brand: Starrag
year: 2002
MODEL: SX-051B
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Starrag SX-051B

General Data

Measurements width: 4600 mm
Measurements depth: 3920 mm
Measurements height: 3000 mm
Machine weight: 13000 kg

Control Unit

Model: 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 19 kW
Tool taper: HSK63
Number of axis: 5

Movement

X-AXIS Movement: 650 MM
Y-AXIS Movement: 650 MM
Z-AXIS Movement: 585 mm

Workpiece

Workpiece weight: 15 kg

Turret

Number of tool slots: 60 pcs

Tools

Max weight: 10 kg
Max tool diameter: 160 mm
Max tool length: 350 mm

Media

Chip conveyor: Yes

Additional Equipment

- postprocessor: EDGECAM
- some tool holders
- external workpiece loading station

Additional Information

Machine Benefits

Technical Machine Benefits:
- - A-axis – 360 deg - endless ; b-axis 155 deg
- - Center distance (adapter tailstock): 500 mm
- - Swing radius: 250 mm ; max. Diameter: 400 mm
- - Tool change time: 5 sec
Qualitative Machine Benefits:
- - Machine in good working conditions
- - Ready for tests

Extra information

- No tooling included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
