Star - SR-32JII type BIT-TUR-STA-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

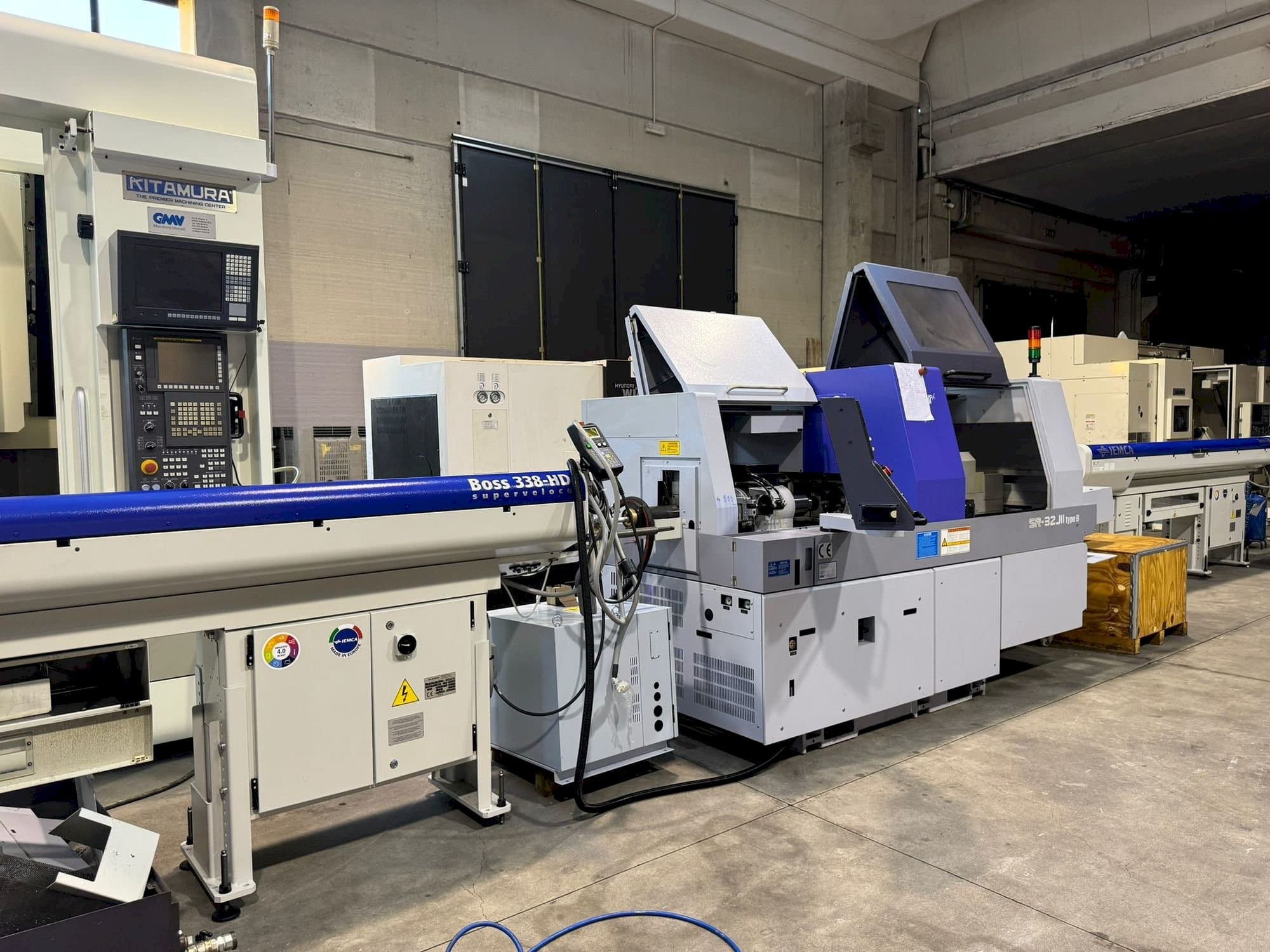

STAR SR-32JII type B Lathe

Show in original language

This STAR SR-32JII type B Lathe was manufactured in the year 2018 in Japan and has 33087 production hours, of which 3810 are spindle hours. It is equipped with a Fanuc Series 32i-MODEL B control unit. The machine has a spindle speed of 8000 rpm.

Overview

brand: Star
year: 2018
MODEL: SR-32JII type B
production hours: 33087
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Star SR-32JII type B

General Data

Measurements width: 2690 mm
Measurements depth: 1345 mm
Measurements height: 1780 mm
Machine weight: 4100 kg

Control Unit

Model: Series 32i-MODEL B
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 7.5-11 kW

Movement

X-AXIS Rapid traverse: 35m/min
Y-AXIS Rapid traverse: 35m/min
Z-AXIS Rapid traverse: 35m/min

Media

Power consumption: 8.8 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Machining diameter: ø32mm
- - Max. Headstock stroke standard :320mm
- - Tool shank: 16 mm
- - 5-spindle sleeve holder number of tools front 5 tools, rear 5 tools
- - Max. Drilling capability ø13mm
- - Max. Tapping capability m12 x p1. 75
- - Cross milling 3 tools (er20) + cartridge type 2 positions
- - Cross milling 6 tools (er16)
- - Max. Drilling capability ø10mm
- - Max. Tapping capability m8 x p1. 25
Qualitative Machine Benefits:
- - Max. Milling capability ø10mm
- - Cross milling: max 6,000min -1
- - Main spindle indexing angle c-axis control
- - Coolant tank capacity 255 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
