- ➤ Used SPINNER TC 600 65 MC For sale | gindumac.com

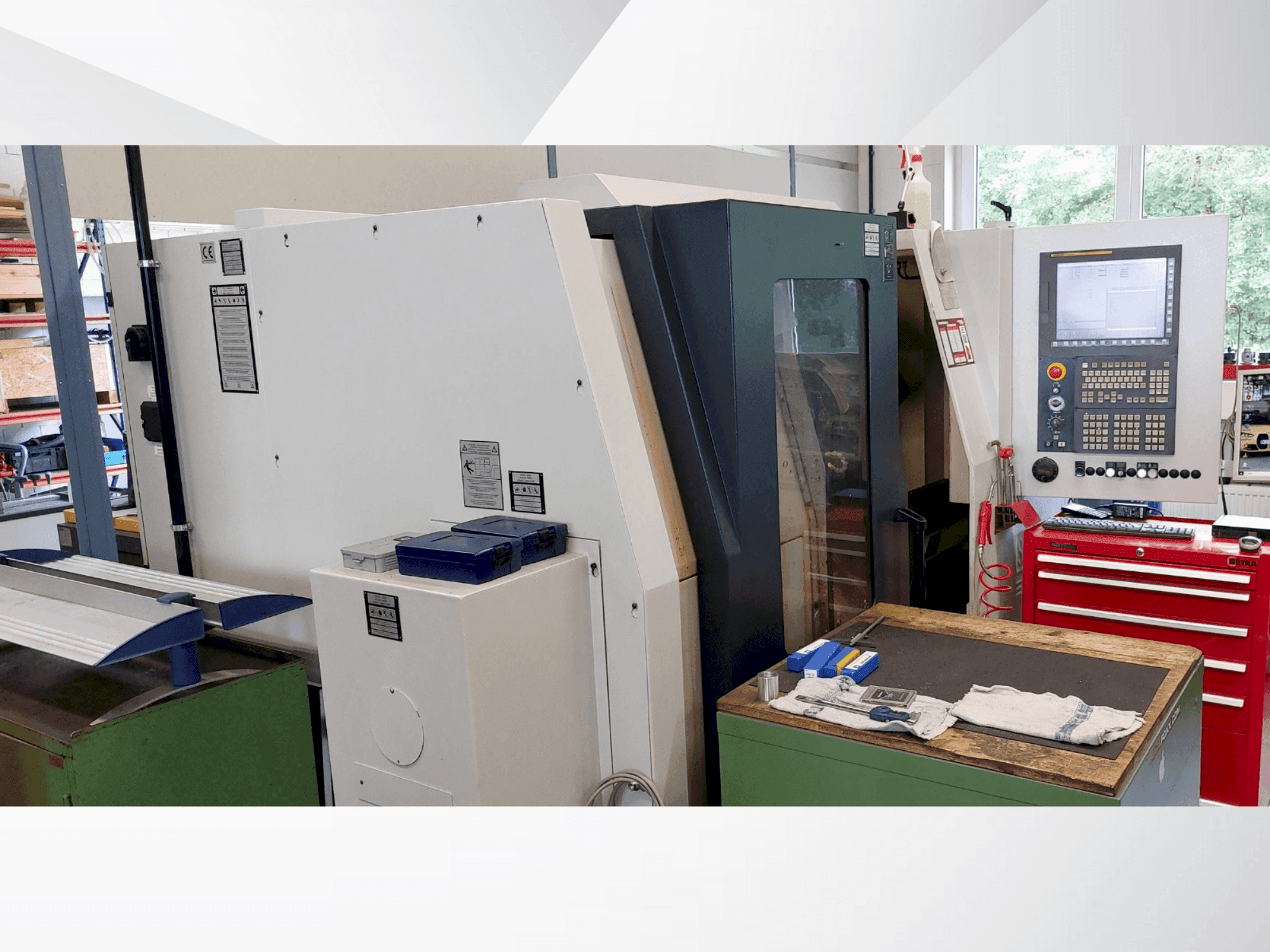

This SPINNER TC 600 65 MC was manufactured in 2012. A robust universal turning lathe machine, it features a max. turning diameter of 400mm and a length of 650mm. It includes two spindles with speeds up to 4500 and 6000 rpm respectively. Weighing between 5600-5800 kg, it's designed for precision and durability. Consider the SPINNER TC 600 65 MC machine we have for sale. Contact us for further details regarding this universal turning lathe machine.
Overview
- brand: SPINNER
- year: 2012
- MODEL: TC 600 65 MC
- application type: Turning
- Location: Germany
- machine type: Lathe
- availability: Sold
Technical Information - SPINNER TC 600 65 MC
General Data
- Measurements width: 1600 MM
- Measurements depth: 2500 MM
- Measurements height: 2000 MM
- Machine weight: 5800 KG
Main drive
- Spindle speed range: spindle 1- 4500, spindle 2-6000 1/MIN
- Number of axis: 2
Movement
- X-AXIS Movement: 275 mm
- Z-AXIS Movement: 700 mm
Media
- Chip conveyor: Yes
Additional Equipment
- - The turret will be fully equipped with tool holders, 3 of which are driven
- - Control GE Fanuc 31iTA
- - Chip conveyor TC600
- - With enlarged L-shaped coolant tank approx. 180 litres
- - Centrifugal pump 50 l/min /
- - Three-jaw chuck 250mm
Additional Information
- Technical Machine Benefits:
- - Spindle motor torque: turning spindle 1: 250 nm turning spindle 2: 80 nm
- - Max. Turning diameter: 400mm
- - Max. Turning length: 650mm
- - Mounting: mk 4
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
