Sodick AG400L EDM

Show in original language

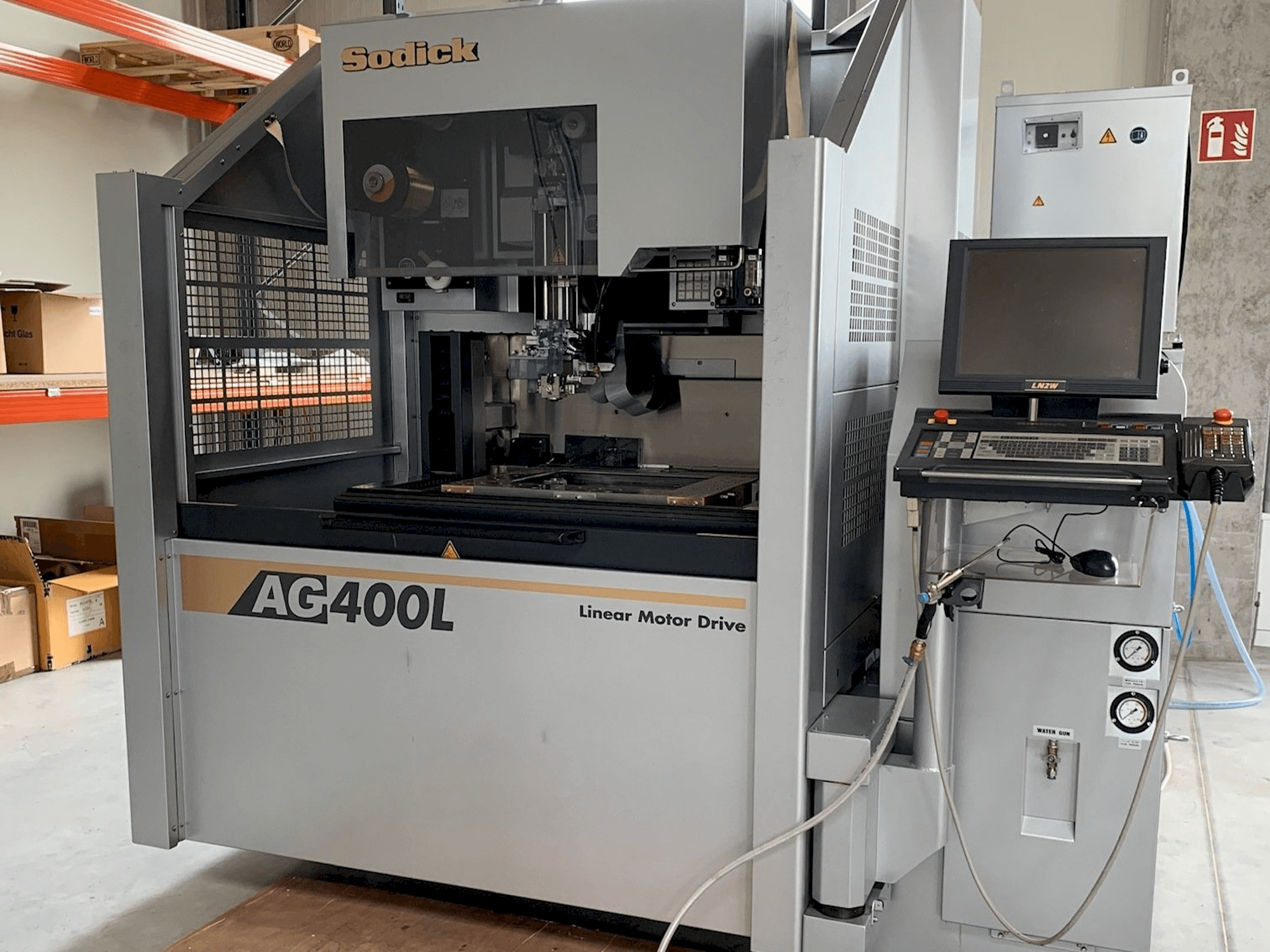

This Sodick AG400L Erosion Machine was made in 2011. It is equipped with a Sodick control unit. This machine can work with a wire diameter of 0.1m to 0.3 mm and its wire speed is of 420 mm/sec.

Overview

brand: Sodick
year: 2011
MODEL: AG400L
application type: EDM
Location: Austria
machine type: Die-Sinking EDM Machine
availability: Sold
control unit brand: SODICK

Technical Information - Sodick AG400L

General Data

Measurements width: 2240 mm
Measurements depth: 2395 mm
Measurements height: 2220 mm
Machine weight: 3950 kg

Control Unit

Brand: SODICK

Main drive

Wire diameter: 0.10~0.30*1 mm

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 250 mm

Workpiece

Workpiece weight: 500 kg

Table

Distance between: Floor- work table: 995 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Wire tension: 3~23 n
- - Working tank dimensions: 850 x 610 mm
- - Wire speed: 420 mm/sec
- - Dielectric container dimensions: 650 x 2080 mm
- - Dielectric container capacity: 600 l
- - Dielectric container capacity weight: 400 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
