Sodick - A 530 D AWTDE-EDM-SOD-1996-00001

Name: Sodick A 530 D AWT
Brand: Sodick
SKU: DE-EDM-SOD-1996-00001
Price: 13000 EUR
Availability: InStock

13,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Sodick A 530 D AWT Wire EDM For Sale | gindumac.com

Show in original language

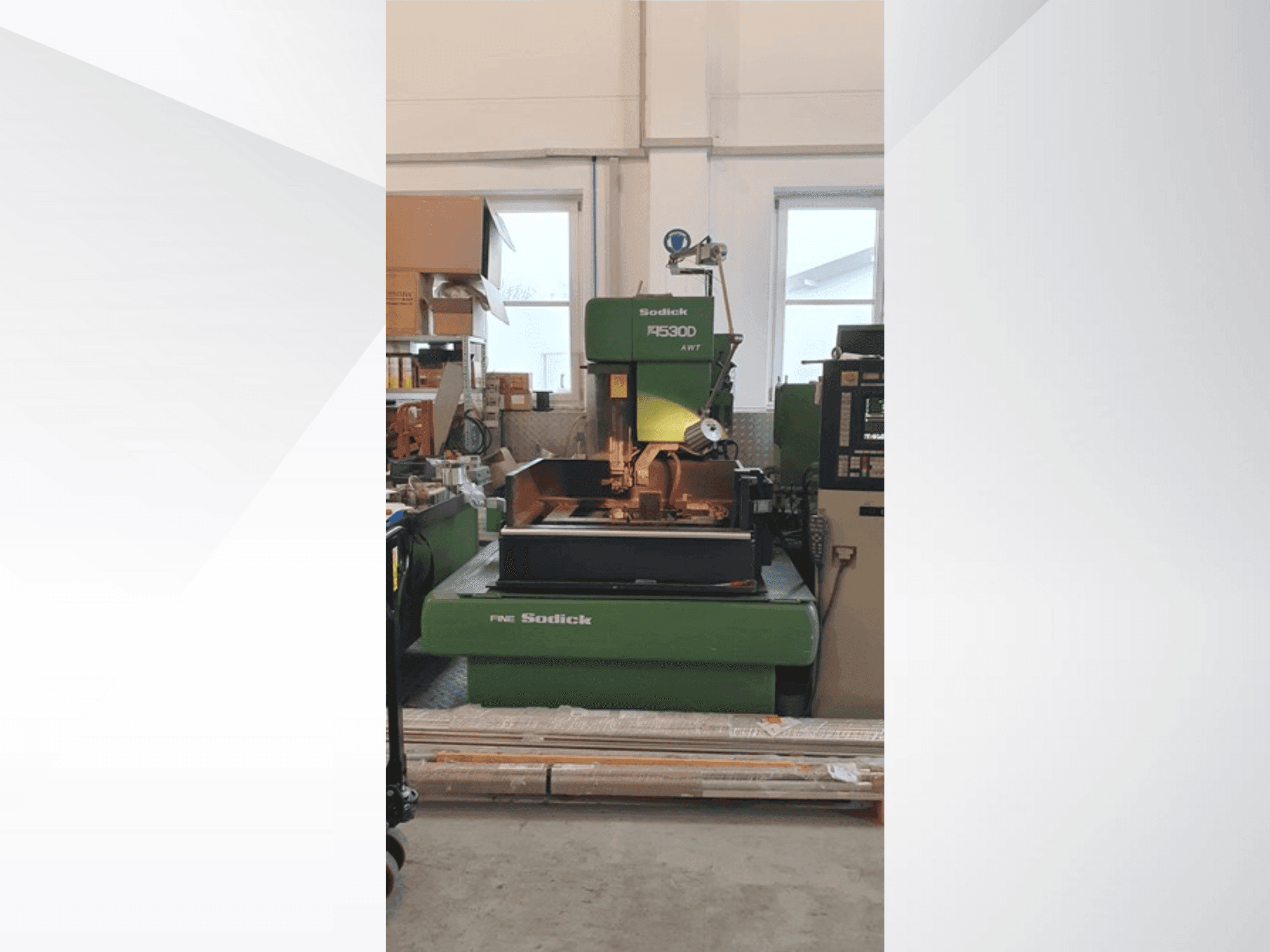

This 4-axis Sodick A 530 D AWT wire EDM machine was manufactured in 1996. It features a table stroke of 500 x 320 mm and a Z-axis range of 270 to 275 mm. Capable of handling workpieces up to 900 x 700 x 260 mm and a maximum weight of 500 kg, it offers a taper angle of ±10°/100. Consider the opportunity to buy this Sodick A 530 D AWT wire EDM machine. Contact us for more information about this machine.

Overview

brand: Sodick
year: 1996
MODEL: A 530 D AWT
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Immediately

Technical Information - Sodick A 530 D AWT

General Data

Measurements width: 1725 mm
Measurements depth: 1600 mm
Measurements height: 2030 mm
Machine weight: 1800 kg

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 500 MM
Y-AXIS Movement: 320 MM
Z-AXIS Movement: 270 to 275 mm

Additional Equipment

- Under-table stroke (U and V axis): 50 x 50 mm
- Wire tension: 200 to 2000 g / Wire feed speed: 240 mm/sec / Wire diameter: 0.1 to 0.3 mm / Volume cable reel max: 6 kg
- Water tank external dimensions: 2200 x 900 x 1645 mm
- Empty weight of water tank: 300 kg
- Water tank capacity: 738 litres

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum workpiece dimensions: 900 x 700 x 260 mm / maximum workpiece weight: 500 kg (350 kg immersed)
- - Height top of table from biden: 982 mm
- - Taper angle: ±10°/100

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
