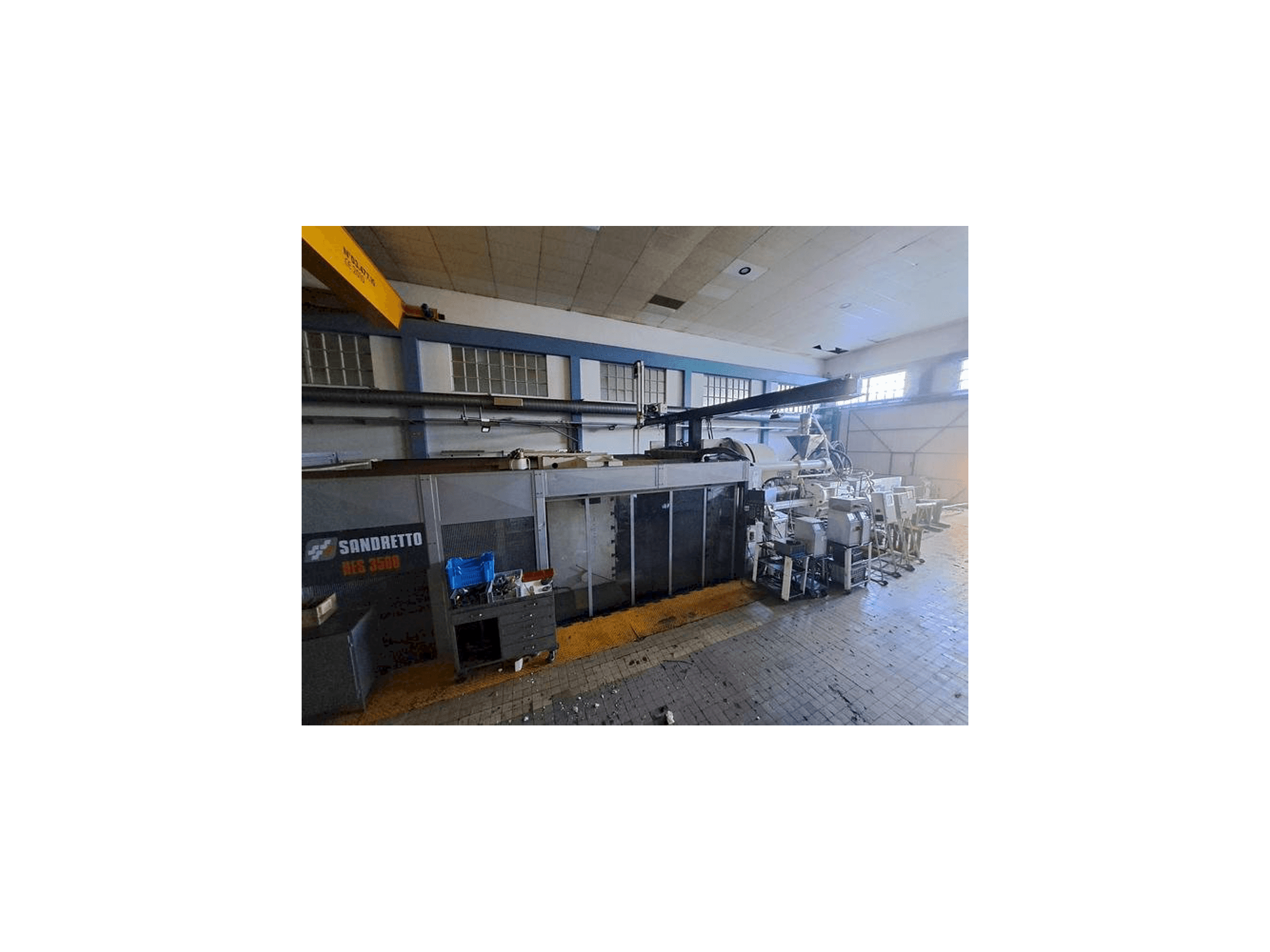

Front view of SANDRETTO HES 3500  machine

SANDRETTO - HES 3500PT-INJ-SAN-2010-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This SANDRETTO HES 3500 injection moulding machine was built in the year 2010.

Overview

  • brand: SANDRETTO
  • year: 2010
  • MODEL: HES 3500
  • application type: Injection Moulding
  • Location: Portugal
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold

Technical Information - SANDRETTO HES 3500

Control Unit

  • Model: SEF 2000

Injection Unit

  • Screw diameter: 200 mm
  • Injection pressure: 1670 Bar

Clamping unit

  • Opening stroke: 2300 mm
  • Mould height min: 1000 mm
  • Mould height max: 2200 mm

    Additional Equipment

    • - MASTER MATTIC RB 500CN robot.
    • - Oil tank capacity: 8000 liters.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High plasticising capacity and speed, robust clamping force.
        • - L/d ratio: 20.
        • - Theoretical injection volume: 36110-18000 cm³.
        • - Injection ratio: 3147 cm³/s.
        • - Plasticising speed: 0-110 rpm. // plasticising speed with simultaneous plasticising: 0-55 rpm.
        • - Total heating power: 174 kw.
        • - Plate dimensions (horizontal x vertical): 3360x3060 mm.
        • - Column diameter: 470 mm.
        • - Pulling force: 550 kn.
        • - Pull-out stroke: 600 mm.
      • Qualitative Machine Benefits:
        • - Uniform heat distribution and quality in the injection molding process.
        • - No load cycle (euromap): 3. 6 s.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
