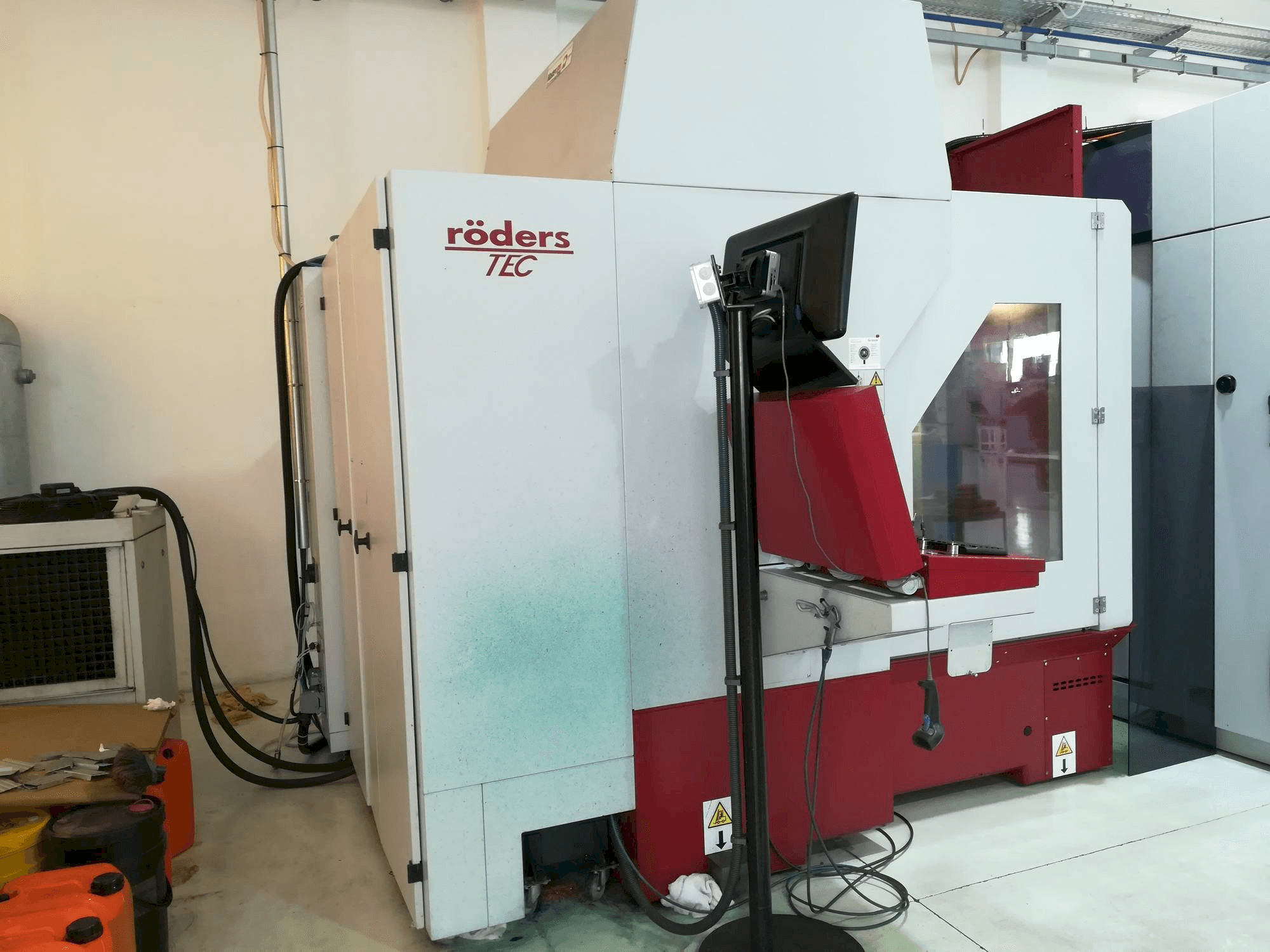

Röders RXP 801 Milling Machine

Show in original language

This Röders RXP 801 Milling Machine was built in 2013 in Germany. It is operated through a Röders RMS6 control unit. This machine can work with a spindle speed between to 100 - 40000 rpm. It counts with a 1-axis NC-turntable direct drive RTT1 360º, and a power Chuck P, d=150. Several additional equipment is included, which can be appreciated complete in the document below the page.

Overview

brand: Roders
year: 2013
MODEL: RXP 801
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
availability: Sold
control unit brand: RÖDERS

Technical Information - Roders RXP 801

General Data

Measurements width: 2884 mm
Measurements depth: 2760 mm
Measurements height: 2800 mm
Machine weight: 9500 kg

Control Unit

Model: RMS6
Brand: RÖDERS

Main drive

Spindle speed range: 100 - 40000 1/MIN

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 855 mm
Z-AXIS Movement: 400 mm

Table

Outer length: 796 mm
Outer width: 596 mm
Table load: 800 kg

Tools

Max tool diameter: 20 mm
Max tool length: 225 mm

Media

Main electronic connection: 400 V

Additional Equipment

- Laser for tool measuring
- Tool cleaning device
- Chiller for tempering of spindle
- Cooling of the secondary parts of the linear motors
- Workpiece cleaning System
- High-frequency milling spindle MFW1224/42 HSK-E40
- 1-axis NC-turntable direct drive RTT1 360º
- Power Chuck P, d=150

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hsc-machine rxp801 with t-slot table
- - High dynamical linear motors in all axes with integrated cooling
- - Fully closed cabin with two doors with safety glass
- - All machine parts are protected against soiling
- - Spindle compensation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
