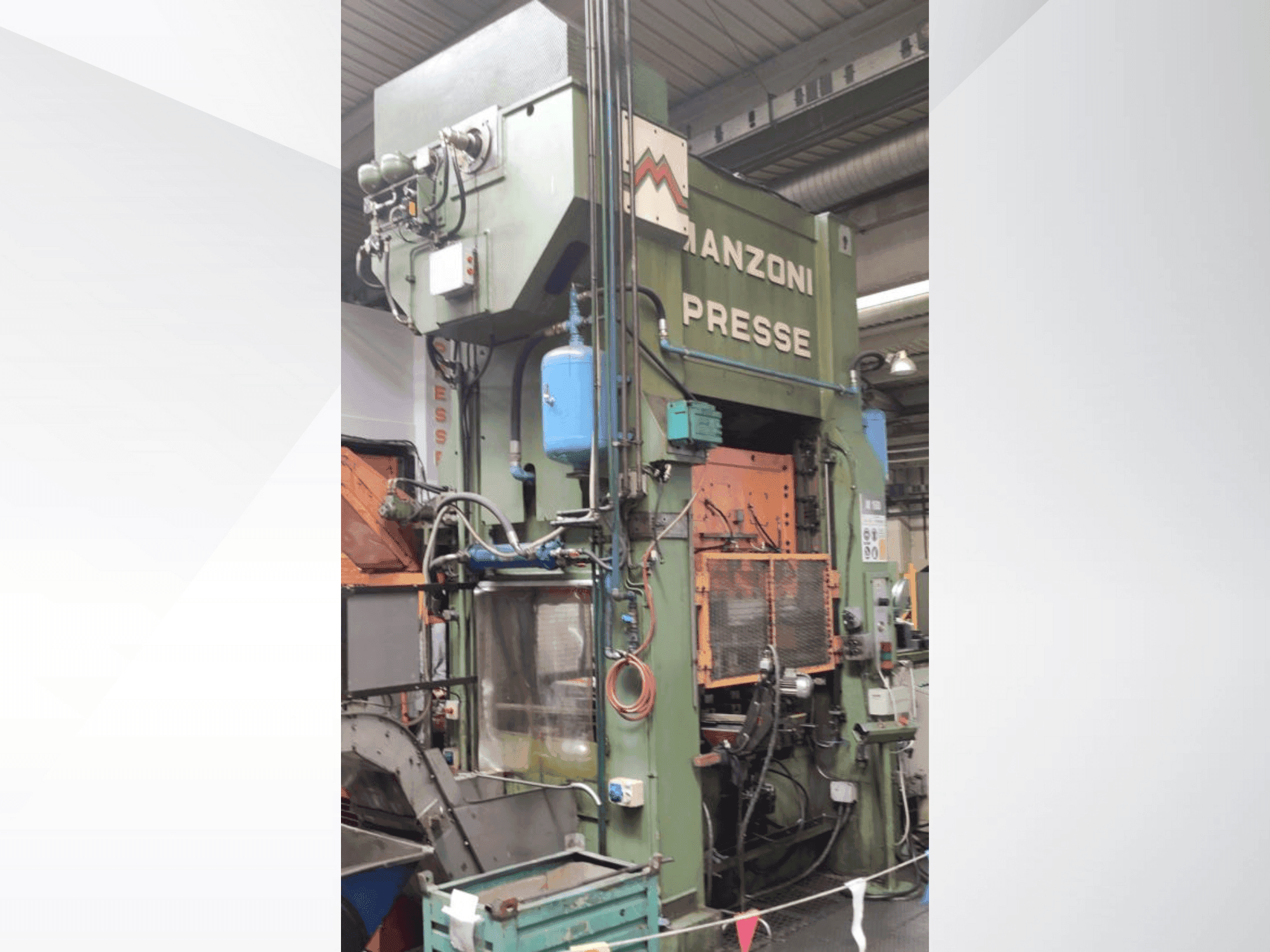

This stamping machine was manufactured in 1992. It features a robust Eccentric H-frame, monoblock design with a press force of 1600 kN and a fixed stroke of 160 mm. The machine includes a magnetic conveyor for scraps, a quick die cart system, and a millutensil oiling system. Ideal for high-quality stamping capabilities, consider the RAVNE PRESSES Manzoni 160 machine we have for sale. Contact us for more information about this machine.

Overview

brand: RAVNE PRESSES
year: 1992
MODEL: Manzoni 160
application type: Stamping
Location: Slovenia
machine type: Stamping Machine
availability: Immediately

Technical Information - RAVNE PRESSES Manzoni 160

Main drive

Pressing force: 1600 kn
Maximum sheet thickness: 4 mm
Main motor power: 48.5 kW
Stroke: 160 mm

Additional Equipment

- Complete press line included
- Magnetic conveyor for scraps
- Quick die cart system
- Scissors for sheet cutting
- Millutensil oiling system
- Documentation and drawings are included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Stroke rate: 30 – 120 /min
- - Slide adjustment: 200 mm
- - Slide dimensions: 1250 x 1000 mm
- - Bed dimensions: 1350 x 1000 mm
- - Shut height: 400 – 600 mm
- - Side opening dimension: 800 mm
- - Front opening dimension: 1250 mm
- - Press force: 1600 kn
- - Press design: eccentric h-frame, monoblock
- - Number of pressure points: 2
Qualitative Machine Benefits:
- - Uncoiling speed: 2 - 25 m/min
- - Feeding speed: 2-96 m/min
- - The stamping line is disassembled.
- - The stamping line is disassembled.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
