Quaser MK 60 II H Horizontal Machining Center

Show in original language

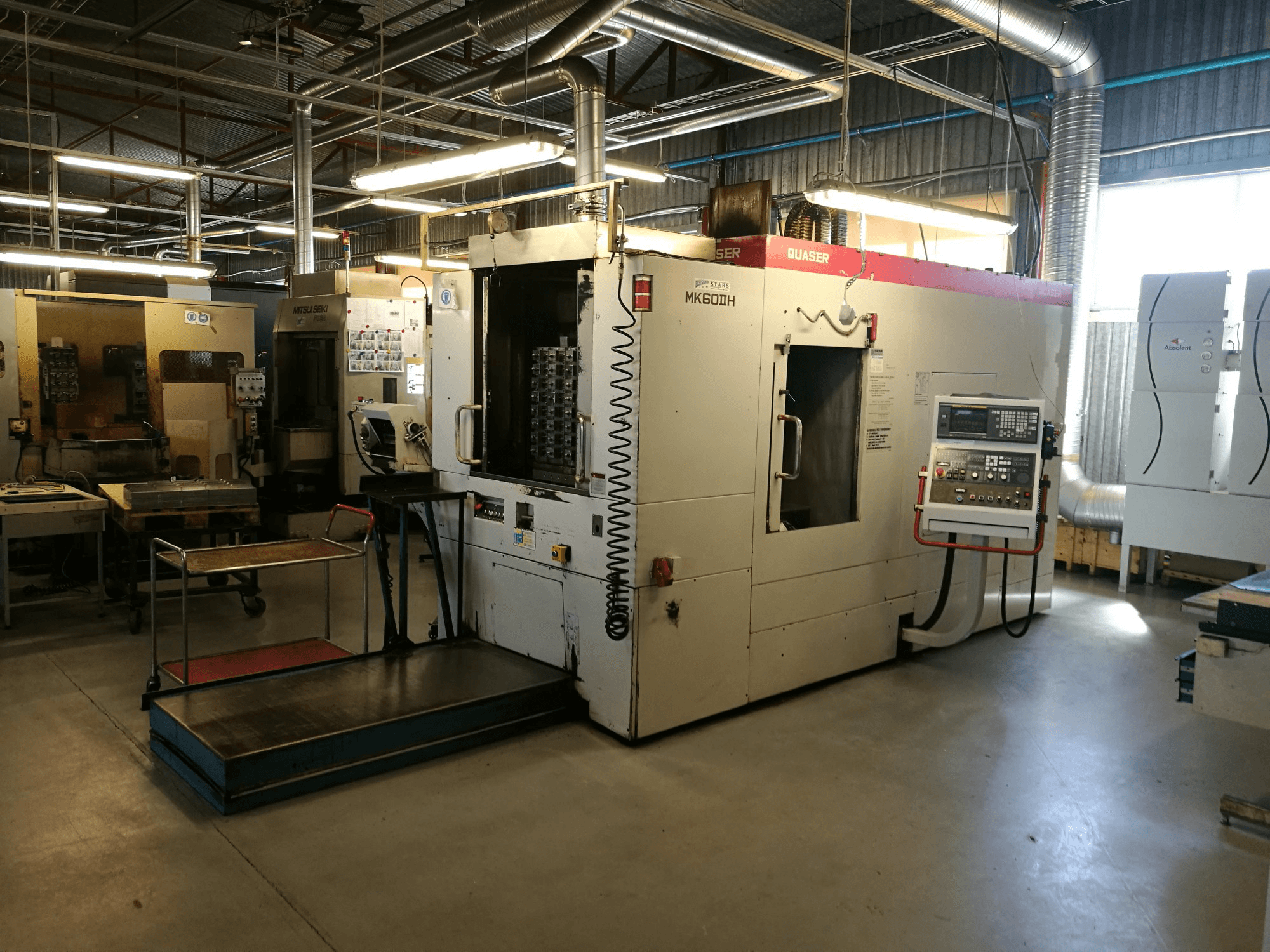

This Quaser MK 60 II H Horizontal Machining Center was manufactured in 2001 in Taiwan and has a working record of approximately 7500 production hours. Equipped with a FANUC Series 18M Control unit, this machine has mainly worked with steel during the past and comes with an additional lifting device included.

Overview

brand: Quaser
year: 2001
MODEL: MK 60 II H
production hours: 7500
application type: Milling
Location: Estonia
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Quaser MK 60 II H

General Data

Measurements width: 2700 mm
Measurements depth: 4220 mm
Measurements height: 3000 mm
Machine weight: 12000 kg

Control Unit

Brand: FANUC
Model: Series 18M

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/min

Movement

X-AXIS Movement: 710 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 610 mm

Workpiece

Workpiece x: 800 mm
Workpiece y: 200 mm
Workpiece z: 500 mm
Workpiece weight: 3800 kg

Table

Outer length: 500 x 500 mm

Tools

Max weight: 10 kg
Max tool diameter: 100/150 mm
Max tool length: 350 mm

Media

Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 45 kVA

Additional Equipment

- Lifting device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
