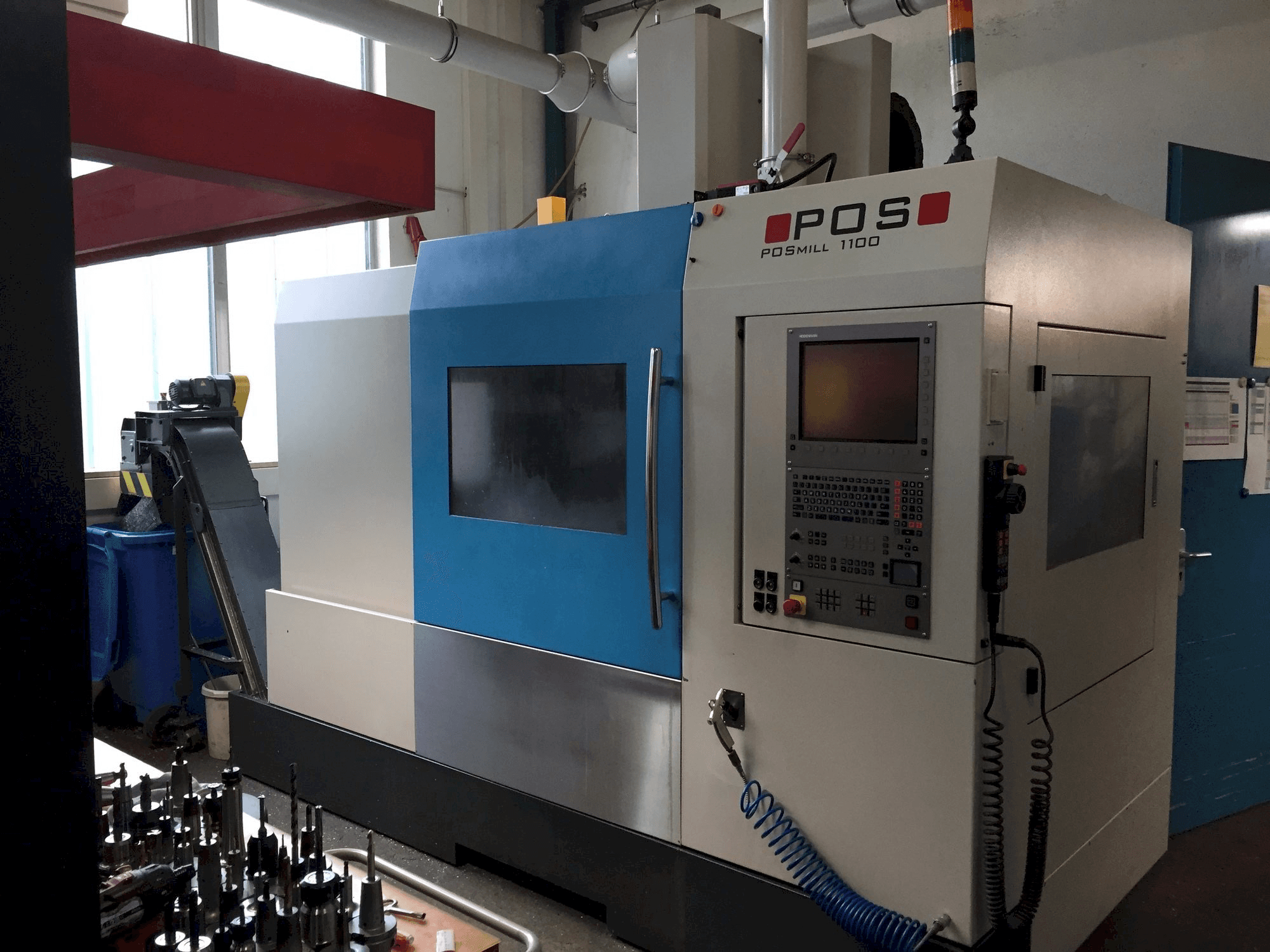

POS POSmill 1100 Vertical Machining Center

Show in original language

This POSmill 1100 Vertical Machining Center was manufactured in the year 2009 in Germany. It is operated through a Heidenhein iTNC 530 control unit and has been working for 14800 hours. This 3 axis machine counts with a spindle speed up to 15000 rpm. Includes a linear measuring system X,Y,Z and a Tool changer TC40.

Overview

brand: POSmill
year: 2009
MODEL: 1100
production hours: 14800
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - POSmill 1100

General Data

Machine weight: 8500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 25 kW
Number of axis: 3

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1300 mm
Outer width: 600 mm
Max distance between vertical spindle and table: 120-630 mm
Table load: 1000 kg

Tools

Max weight: 8 kg
Max tool length: 300 mm
Type of tool holder: ISO 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Tool changer TC40
- Protective cabin
- Plexiglass Hinged belt

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Linear measuring system x,y,z
- - Inner coolant supply 20 bar with belt filter unit
- - Slat band tension device
- - Washdown device
- - Water pistol
- - Operation of wzw door locking system
- - Tool change guard
- - Coolant separator , mechanical
- - Operation of wzw door locking system
- - Workpiece measuring system 25 hdr

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
