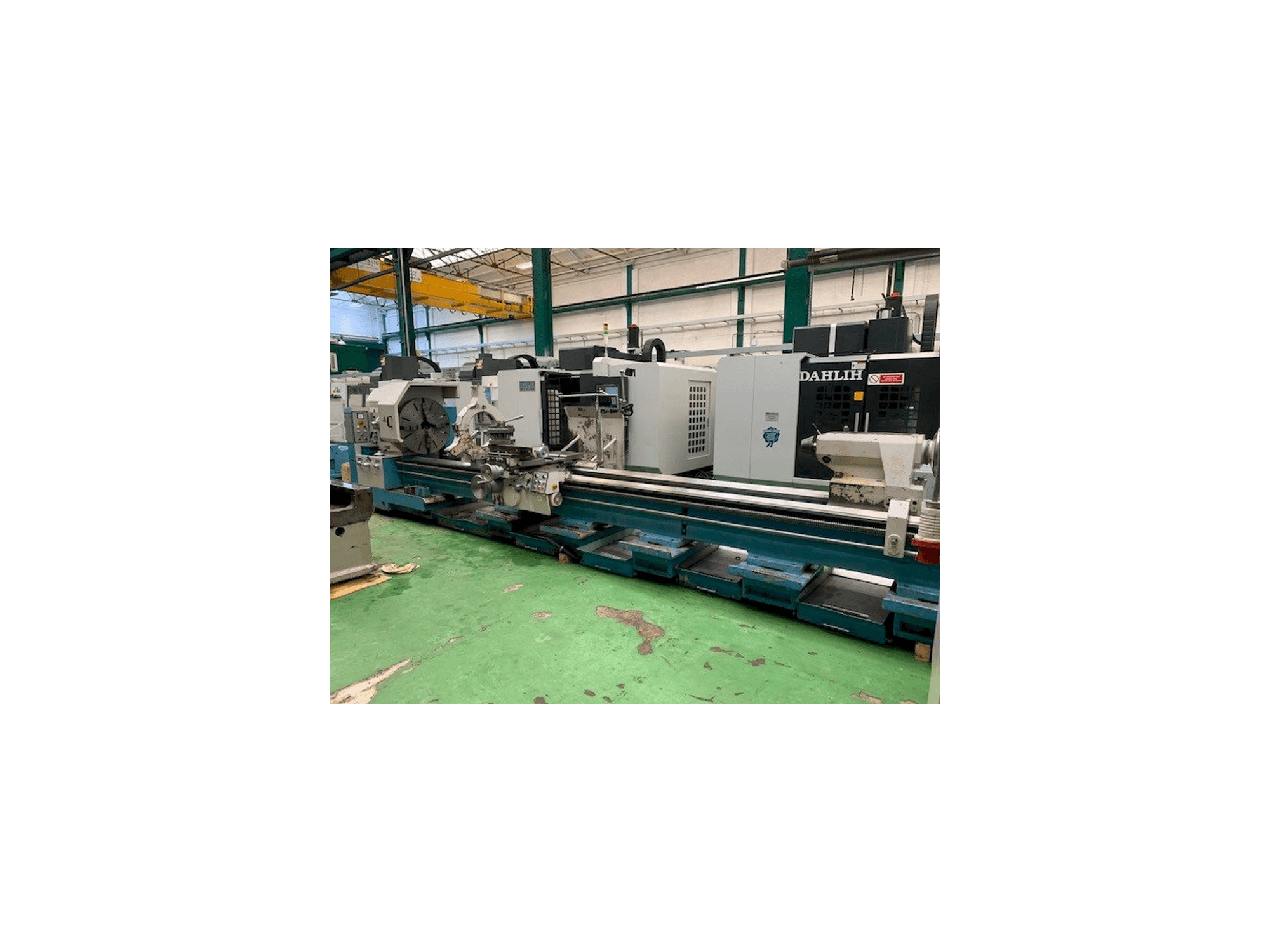

Poreba TPK 80x5000 Lathe

Show in original language

This Poreba TPK 80x5000 Lathe was built in 1979 but completely reconditioned in 2014. This machine can perform with a spindle speed up to 630 rpm.

Overview

brand: Poreba
year: 2014
MODEL: TPK 80x5000
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - Poreba TPK 80x5000

General Data

Measurements width: 7500 mm
Measurements depth: 1750 mm
Measurements height: 1370 mm
Machine weight: 10000 kg

Main drive

Number of spindles: 1
Spindle speed range: 630 1/MIN
Spindle motor power: 15/22 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 800 mm
- - Swing over cross slide 530 mm
- - Distance between centres 5000 mm
- - Spindle bore 95 mm
- - Tailstock quill diameter 130 mm
- - Max. Workpiece weight clamped between centres with 2 x steady = 9000 kgs
- - Maximum weight in chuck without tailstock or steady 600 kgs
- - 760mm diameter 4 jaw chuck
- - Newall b60 digital readout
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
