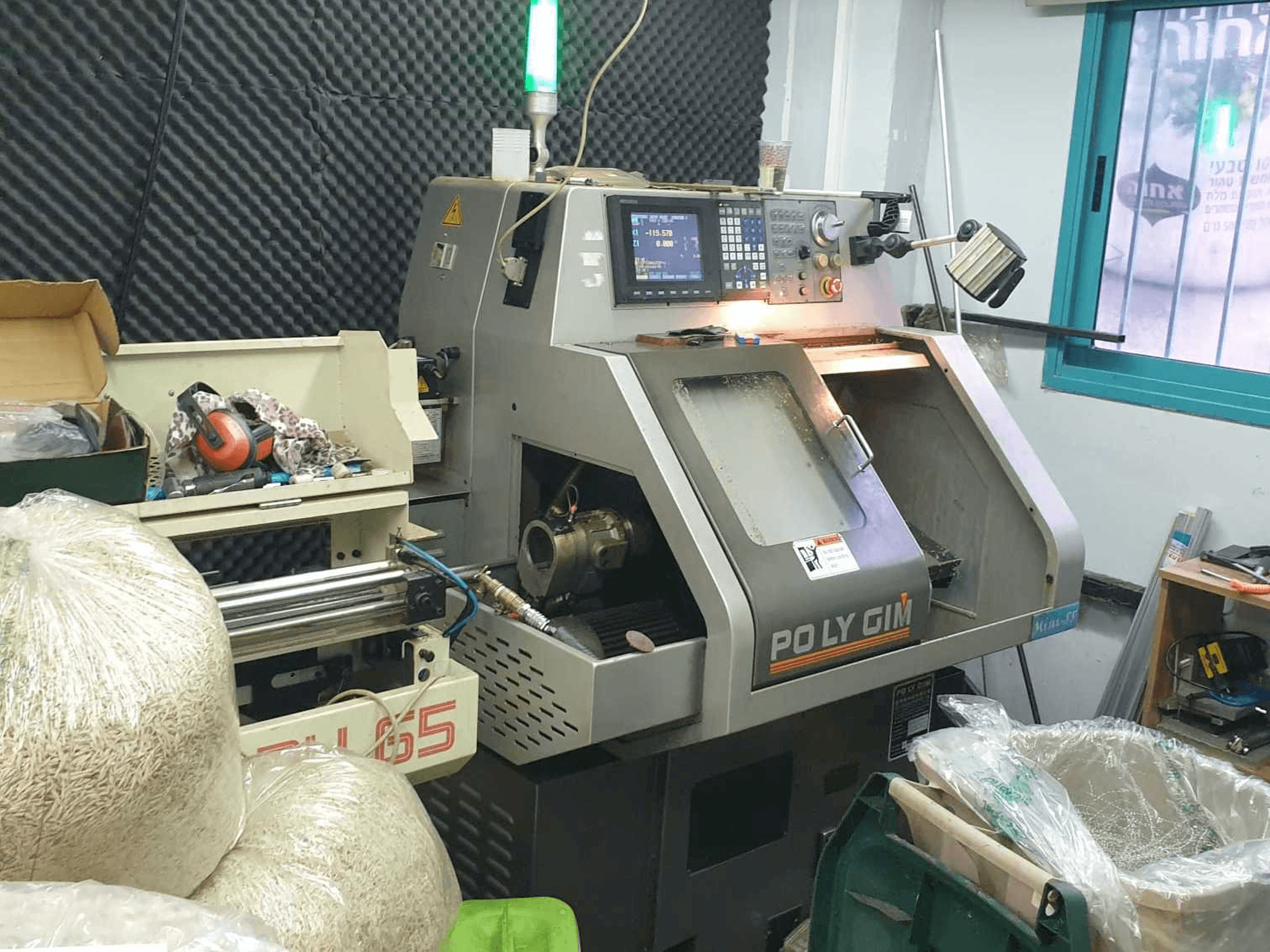

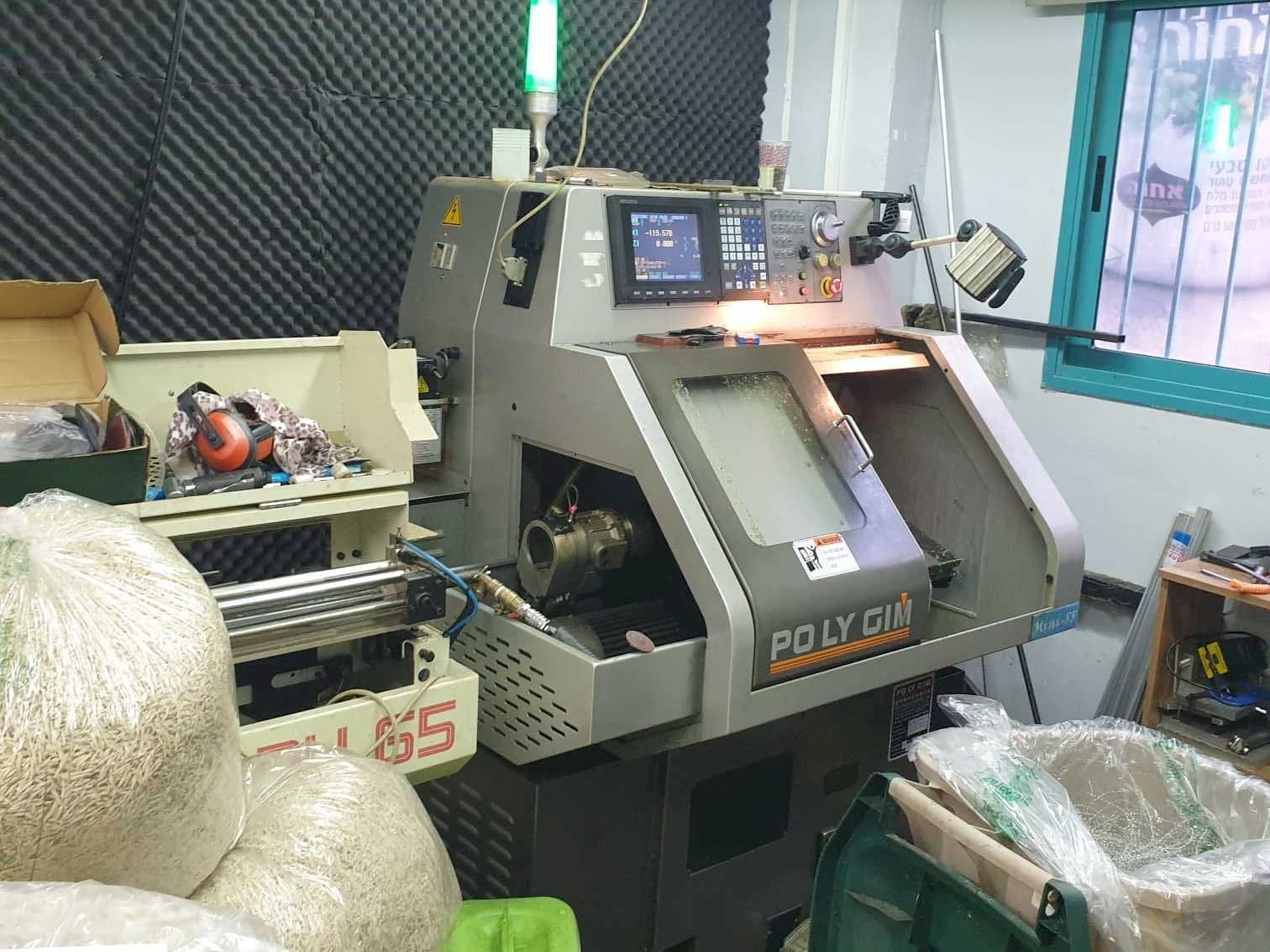

PO LY GIM Mini-88 Lathe

Show in original language

This PO LY GIM Mini-88 Lathe machine was manufactured in the year 2018 in Taiwan. This machine can work with a spindle speed range 100-5000 rpm. It presents very good conditions.

Overview

brand: PO LY GIM
year: 2018
MODEL: Mini-88
application type: Turning
Location: Israel
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - PO LY GIM Mini-88

General Data

Measurements width: 1200 mm
Measurements depth: 1000 mm
Measurements height: 1500 mm
Machine weight: 1058 kg

Control Unit

Brand: MITSUBISHI

Main drive

Spindle speed range: 100-5000 1/MIN
Spindle motor power: 2.2 kw / 3 H.P.

Movement

X-AXIS Rapid traverse: 15 m/min
Z-AXIS Rapid traverse: 15 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Machining dia: 60 mm (with chuck), 26 mm (with collet chuck)
- - Max. Machining length: 120 mm
- - Swing over cross slide: 120 mm
- - Max. Cross trave (x axis): 170 mm
- - Max. Longitudinal travel (z axis): 170 mm
- - Bore of spindle: 34 mm
- - Max. Bar feeding dia: 26 mm
- - Spindle nose: Ø85 mm
- - Hydraulic chuck: 4"
- - Cutting tool size: 16 mm
Qualitative Machine Benefits:
- - Max. Bore size of tool: Ø20 mm
- - Coolant pump motor: 1/4 h. P.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
