Pinnacle SV105 Machining Center

Show in original language

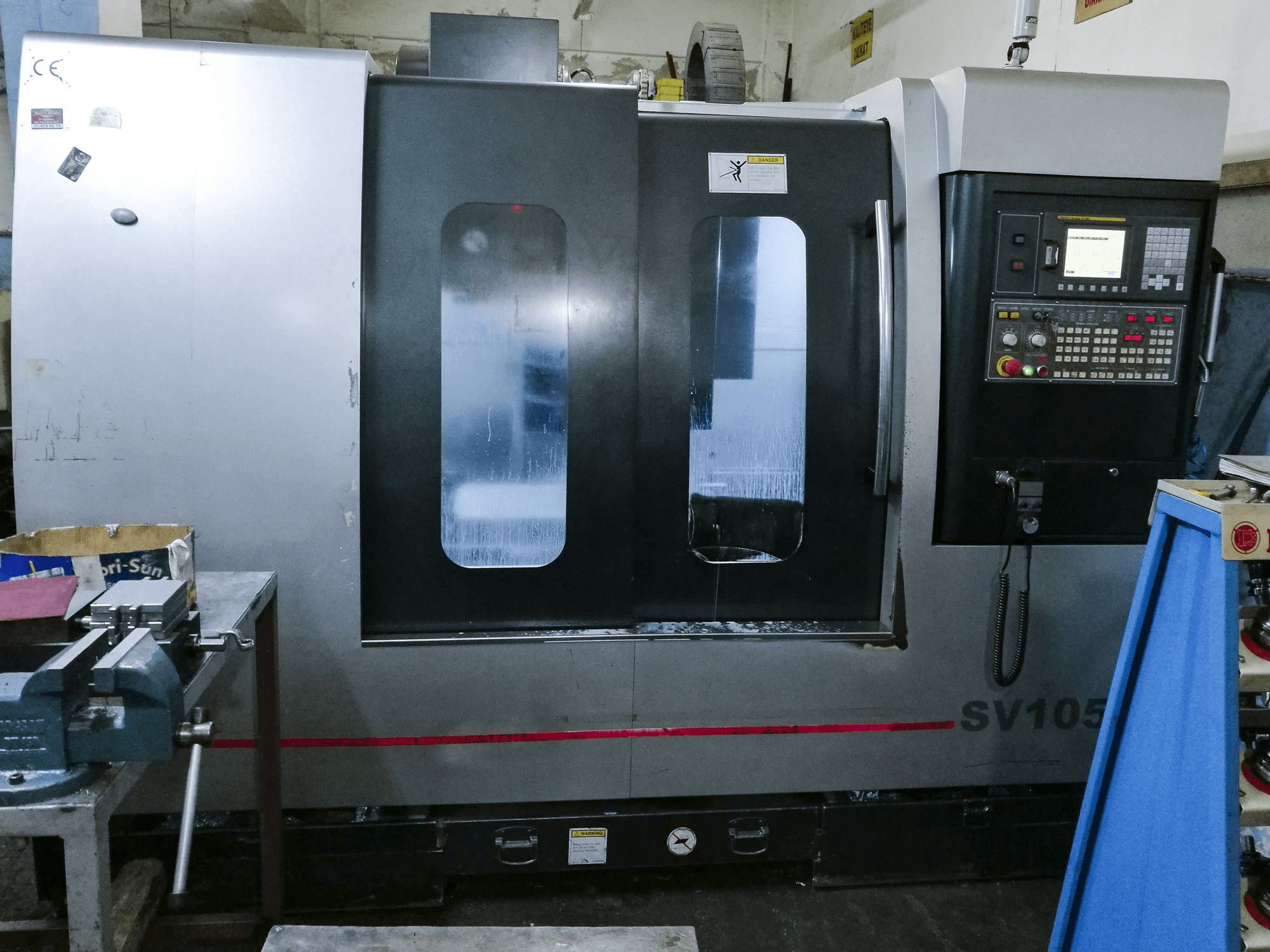

This Pinnacle SV105 Machining Center from 2008 has a production record of approximately 29200 hours. Operated through a FANUC 0i-MC Control unit and with a spacious table of 1200 x 510 millimeters (L x W), the machine stands out for its excellent condition. Upon request, extra toolholders can be included as additional equipment.

Overview

brand: Pinnacle
year: 2008
MODEL: SV105
production hours: 29200
application type: Milling
Location: Turkey
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Pinnacle SV105

General Data

Measurements width: 3000 mm
Measurements depth: 2100 mm
Measurements height: 2650 mm
Machine weight: 5300 kg

Control Unit

Model: 0i-MC
Interface: Serial, Card
Remote control: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 60-8000 1/min
Spindle motor power: 11 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 1020 mm
X-AXIS Working Feed: 0-10000 mm/min
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Working Feed: 0-10000 mm/min
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 560 mm
Z-AXIS Working Feed: 0-10000 mm/min
Z-AXIS Rapid traverse: 24 m/min

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 1200 mm
Outer width: 510 mm
TSlots size: 18 mm
Number of tslots: 5
Distance between: 100 mm

Tools

Slots in storage: 200
Max weight: 8 kg
Max tool diameter: 100/90 mm
Max tool length: 250 MM

Media

Main electronic connection: 220 V / 3 P / 50 Hz
Air pressure: 6 bar
Lubrication tank: 200 L

Additional Equipment

- Tool holders and tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
