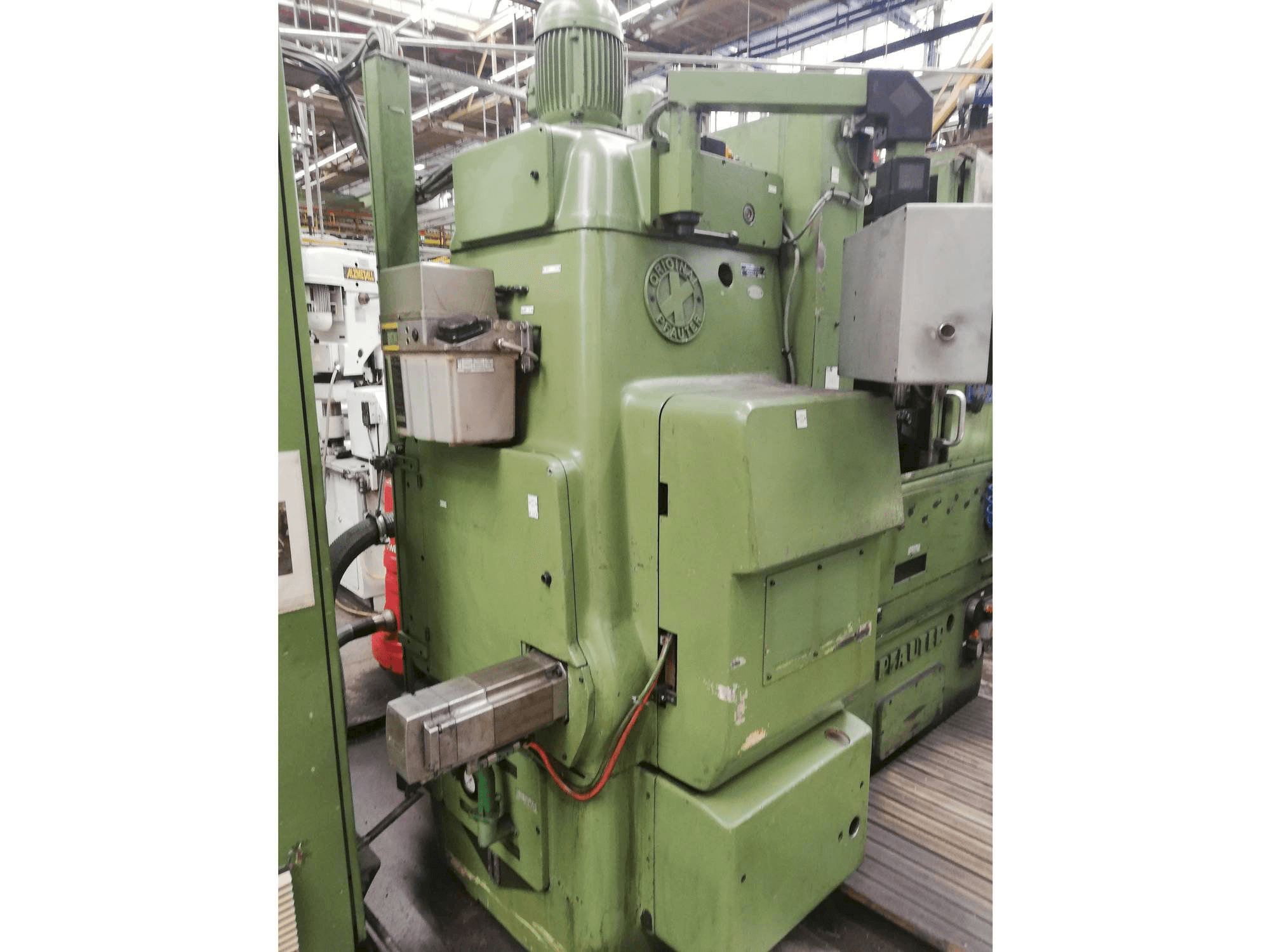

Pfauter - P400DE-GEA-PFA-2007-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Two servo motors for axial (z-axis) and table drive (c-axis)
  • - Status light column, brake module make pold for cutter drive
  • - Cone: moise 5
  • - Connection for chip extraction, pold braking device
  • - Cd's with: complete electrical diagrams, cd's with: docu , s7, simo-drive, sinocom
  • - Full working chip guard with filet suction base 1840x730mm
  • - Work arbor 20h6 25h6, milling arbor 27 32 diameter j 5
  • - Working range largest part to be milled module 6mm
  • - Largest diameter to be machined with/without counterholder 400mm
  • - Largest milling width: spur gears 300mm
• Qualitative Machine Benefits:
  • - Ec declaration of conformity
  • - New control panel, control structure with s7 plc
  • - Largest distance from clamping table to counterholder to center of milling spindle 638/470mm
  • - Milling spindle; taper 1 : 5 largest diameter milling cutter 160mm
  • - Largest width diameter 160mm
  • - Distance from axis to milling spindle and clamping spindle without counterholder graste: 300mm / smallest 30mm
  • - Adjustability of the milling spindle: by itself 100mm / by hand 120mm
  • - Milling slide: swiveling up to 240 degrees
  • - Table: diameter cross rings 400mm bore diameter 80mm
  • - Spherical milling device, step-shifting device

Extra information

• - Especially suitable for: Straight and helical gears, Worm gears
