- ➤ Used PASO PS400 - 2004 - Vertical machining centre

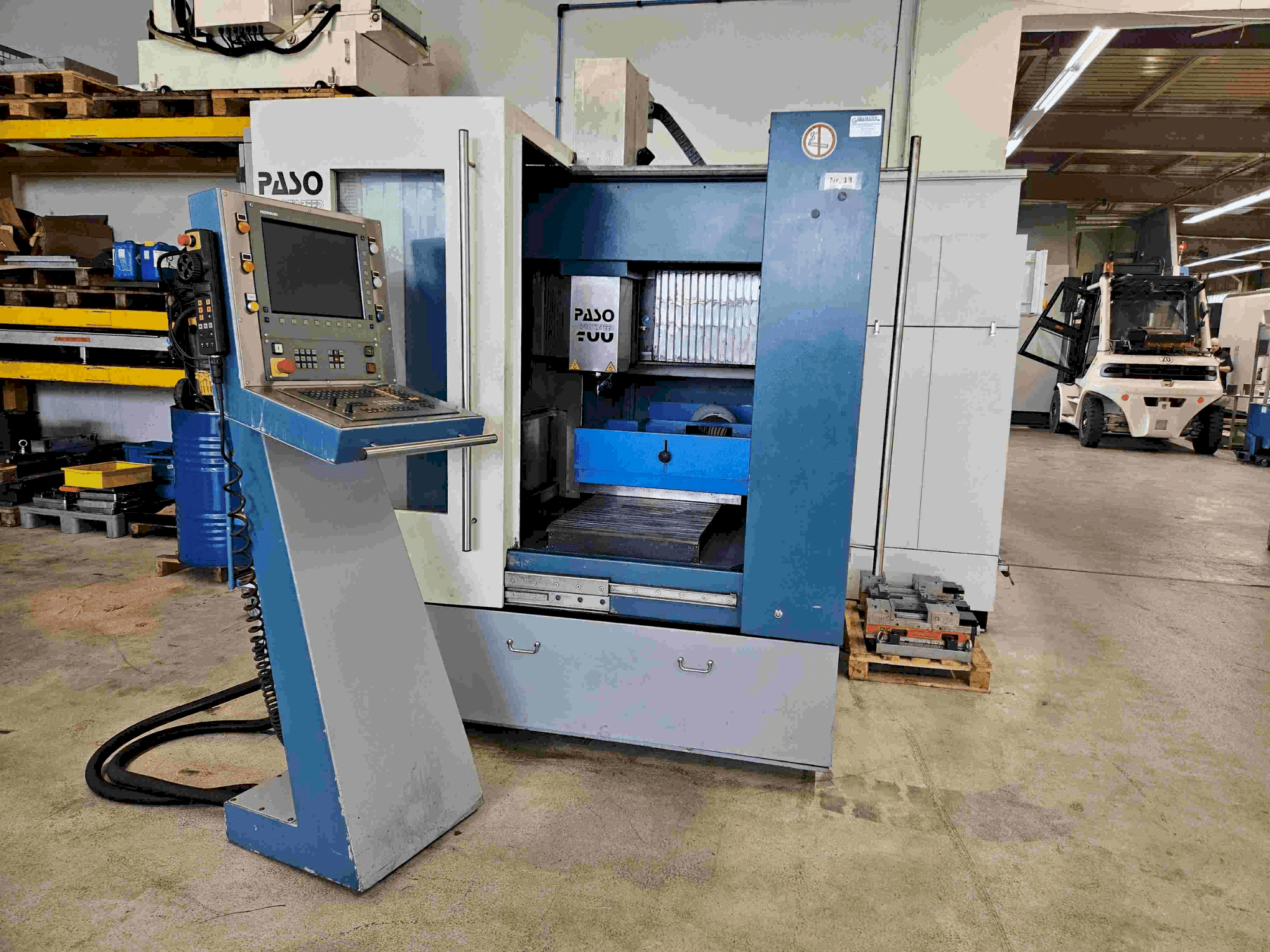

This 3-Axis PASO PS400 was manufactured in 2004. A vertical machining centre that offers X-axis travel of 700mm, Y-axis of 440mm, and Z-axis of 400mm. It features a spindle speed range of 1000 to 24000 rpm and a 16-fold tool magazine. The work table measures 700x400mm and can handle a maximum load of 650 kg. The machine is also equipped with a dust removal system, ideal for milling graphite electrodes. Reach out for further details regarding this machine.
Overview
- brand: PASO
- year: 2004
- MODEL: PS400
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
Technical Information - PASO PS400
General Data
- Measurements width: 1300 mm
- Measurements depth: 1100 mm
- Measurements height: 2450 mm
- Machine weight: 4000 kg
Main drive
- Number of spindles: 1
- Spindle speed range: 1000-24000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 700 mm
- Y-AXIS Movement: 440 mm
- Z-AXIS Movement: https://gindumacgmbh.zendesk.com/sales/deals/171245964#:~:text=mm%20Z%2DAxis%3A-,400%20mm,-Workpiece%0AWorkpiece%20weight
Table
- Outer length: 700 mm
- Outer width: 400 mm
- Table load: 650 kg
Additional Equipment
- - Machine Specific Data
- - Dust removal system
Additional Information
- Technical Machine Benefits:
- - Suitable for milling graphite electrodes due to dust removal system
- - Control system replaced in October 2022
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
