Okuma - Multus U3000 1SW 1500DE-MIL-OKU-2023-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Okuma Multus U3000 1SW 1500 For Sale | gindumac.com

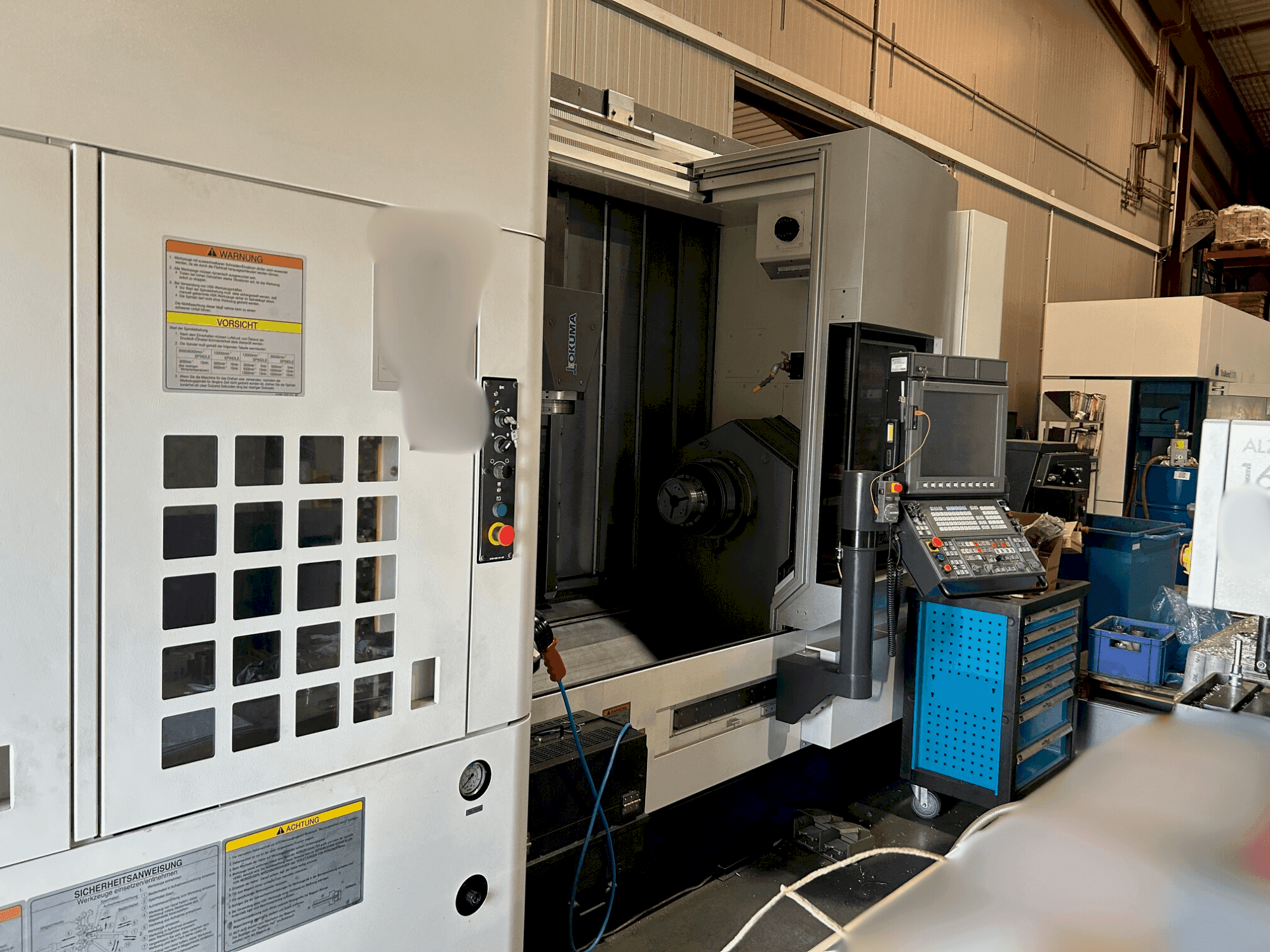

This 6-axis Okuma Multus U3000 1SW 1500 was manufactured in 2023. A vertical machining center featuring a swing over saddle of ø650 mm, it can handle a maximum machining diameter and length of 650mm and 1500mm, respectively. It boasts extensive travels with X: 645m, Z: 1600mm, Y: 250mm, W: 1594mm, and a C-axis of 360 degrees. Ideal for complex machining tasks, the Okuma Multus U3000 1SW 1500 machine we have for sale. Contact us for further details regarding this vertical machining center.
Overview
- brand: Okuma
- year: 2023
- MODEL: Multus U3000 1SW 1500
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
Technical Information - Okuma Multus U3000 1SW 1500
General Data
- Measurements width: 2995 mm
- Measurements depth: 5425 mm
- Measurements height: 2955 mm
- Machine weight: 16500 kg
Main drive
- Number of spindles: 1
- Spindle speed range: 4200 rpm 1/MIN
- Spindle motor power: 22 kw
- Spindle bore: ø91 mm
- Number of axis: 6
Movement
- X-AXIS Movement: 645 mm
- Y-AXIS Movement: 250 mm
- Z-AXIS Movement: 1600 mm
- W-Axis Movement: 1594 mm
- B-AXIS Movement: 240° MM
- C-AXIS Movement: 360° MM
- AXIS 1 Movement: -30 - 210 °
- AXIS 2 Movement: 360 °
Workpiece
- Workpiece drm: 650 mm
- Workpiece x: 1500 mm
Turret
- Number of turrets: 1
- Rotating tools: Yes
Media
- Internal cooling: Yes
Additional Equipment
- - Capto C6 tool system for H1 turret
- - Internal coolant supply for rotating tools, pump with pressure max 20 bar including bag filter, external cooling of tool spindle, pump with pressure max 3 bar
- - Tool magazine with 80 pockets
- - External air supply and through the tool spindle for turning holders and rotating tools
- - Hinge belt tensioner Interlit ISF
- - Drum trough filter TMF 300 with clean tank 980
- - Workpiece gripper programmable, for workpiece size ø 70 x 150 mm
Additional Information
- Technical Machine Benefits:
- - Swing over saddle: 650 mm
- - Distance between centres: 1500 mm
- - Large swing over saddle (ø650 mm) and maximum machining diameter (650 mm)
- - Extensive travel ranges for versatile machining operations
- - Torque 427nm
- Qualitative Machine Benefits:
- - Robust and precise with a large floor space and significant mass for stability
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
