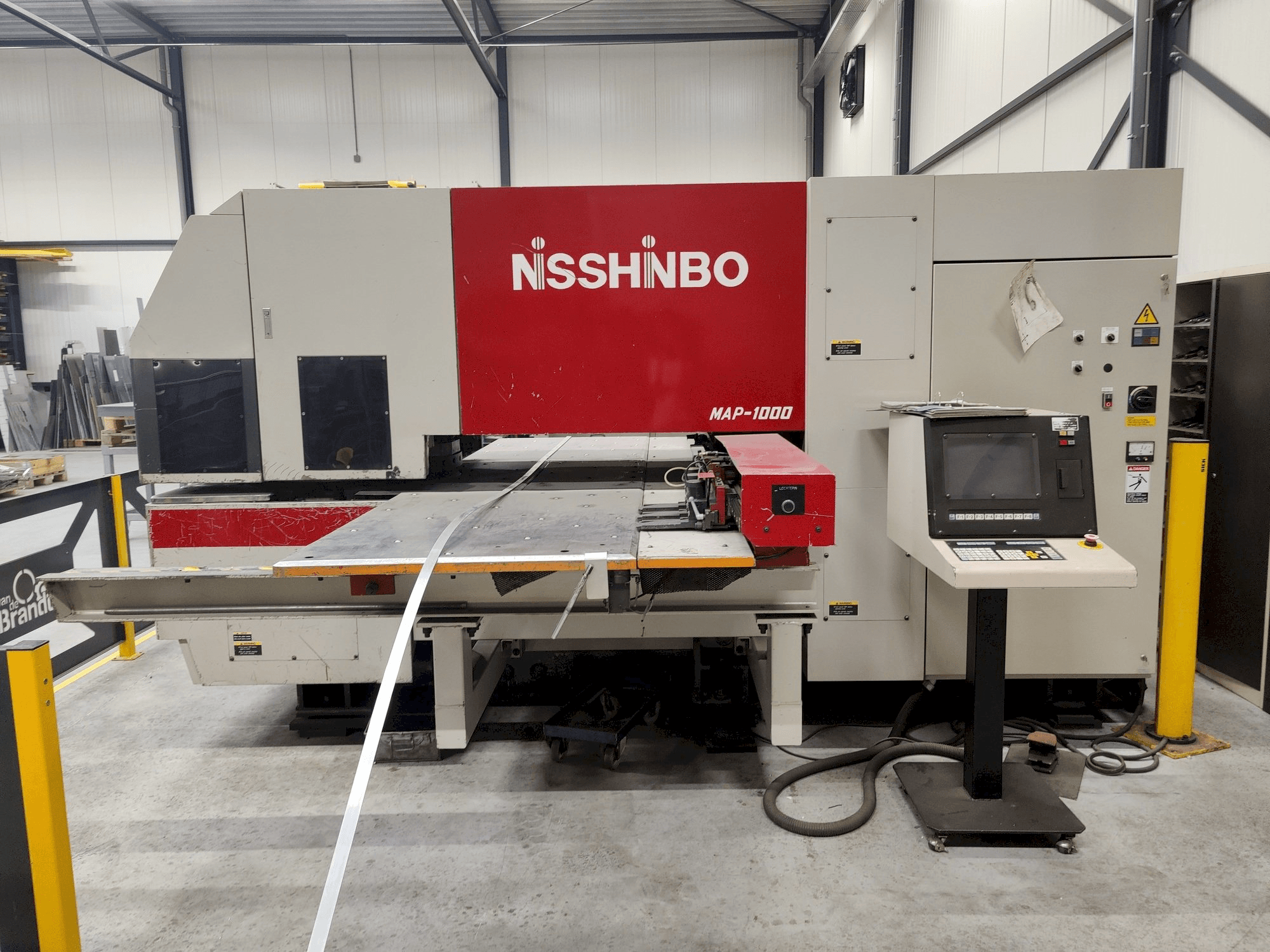

Nisshinbo MAP-1000 Punching machine

Show in original language

This Nisshinbo MAP-1000 Punching machine was manufactured in the year 1999 in Japan. It is equipped with a Nisshinbo PAL-510T control unit. The machine has a pressing force of 2200 kN.

Overview

brand: Nisshinbo
year: 1999
MODEL: MAP-1000
application type: Punching
Location: Netherlands
machine type: CNC Punch Press
availability: Sold

Technical Information - Nisshinbo MAP-1000

General Data

Measurements width: 3650 mm
Measurements depth: 4400 mm
Measurements height: 2245 mm
Machine weight: 13000 kg

Control Unit

Model: PAL-510T

Main drive

Pressing force: 220 kN

Table

Outer length: 1000 mm
Outer width: 2100 mm

Media

Main electronic connection: 380 V/ 50 Hz
Power consumption: 18 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Punching frequency: 300 spm
- - Ram stroke length: 32mm
- - Max. Working thickness: 6. 35mm
- - Max. Working diameter: 100mm
- - Table feed rate: 50 m/min
- - Turret: 22 positions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
