NAKAMURA-TOME - WTW-150TR-TUR-NAK-2004-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- NAKAMURA-TOME WTW-150 Lathe

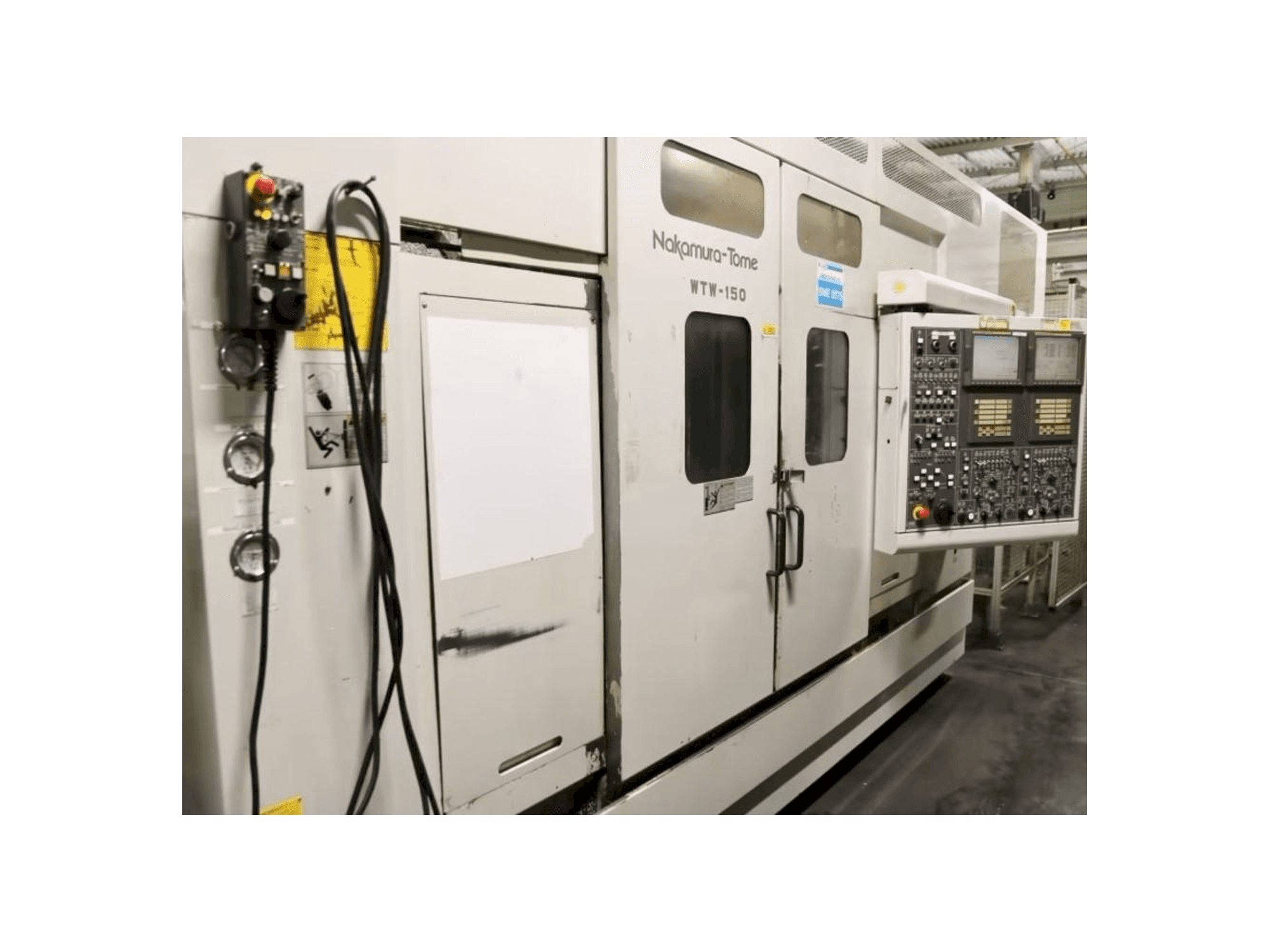

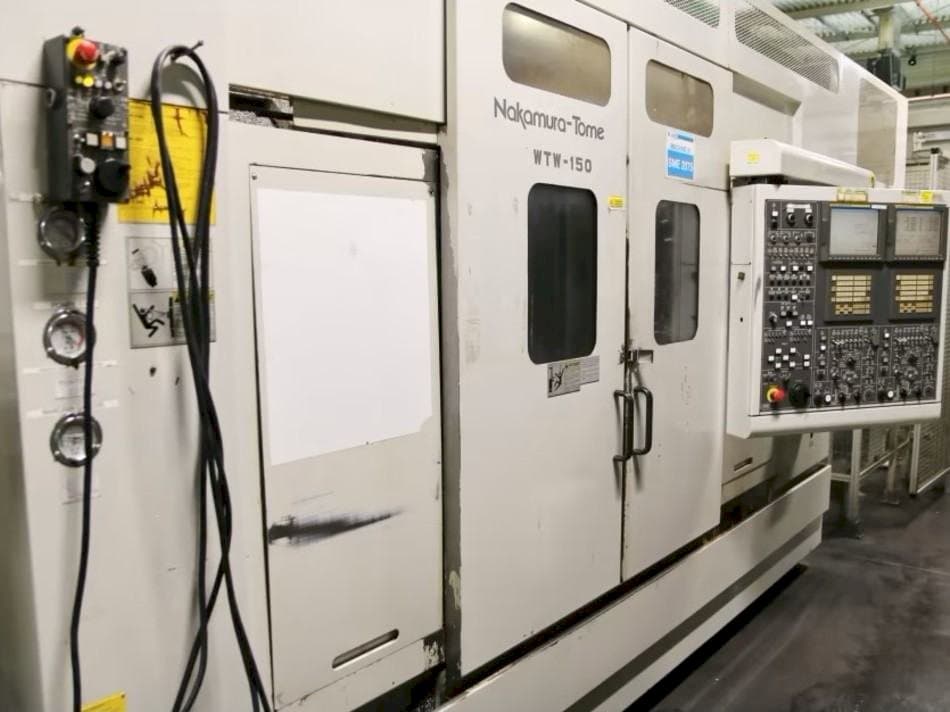

This NAKAMURA-TOME WTW-150 Lathe was manufactured in the year 2004 in Japan. It is equipped with a Fanuc control unit. The machine has a spindle speed of 4000 to 6000 rpm. 2 units are available.
Overview
- brand: NAKAMURA-TOME
- year: 2004
- MODEL: WTW-150
- application type: Turning
- Location: Turkey
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - NAKAMURA-TOME WTW-150
General Data
- Measurements width: 2330 mm
- Measurements depth: 3850 mm
- Measurements height: 2320 mm
Control Unit
- Brand: FANUC
Main drive
- Spindle speed range: 4000-6000 1/MIN
Turret
- Number of turrets: 4
Additional Information
- Technical Machine Benefits:
- - Max. Turning diameter/max. Turning length: 310mm/255mm
- - Distance between spindle nose: max. 1,070mm/min. 195mm
- - Bar capacity: 65mm 51mm
- - Chuck size: 6″
- - Upper turret slide travel x/z/b2 207. 5/300/875mm
- - Slide travel y: 207. 5/300mm
- - Lower turret slide travel x/xz: 60mm(±30)×2
- - Left spindle right spindle
- - Driven motor power and torque: 3. 7/2. 2k w 23. 6/14 n. M
- - Type of turret head/number of index positions dodecagonal/24 rotary system/number of driven-tool stations individual rotation/12
- Qualitative Machine Benefits:
- - Y axis on the upper turrets live tooling no chucks included standard package of static tool holders
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
