NAKAMURA Tome WT-250 Lathe

Show in original language

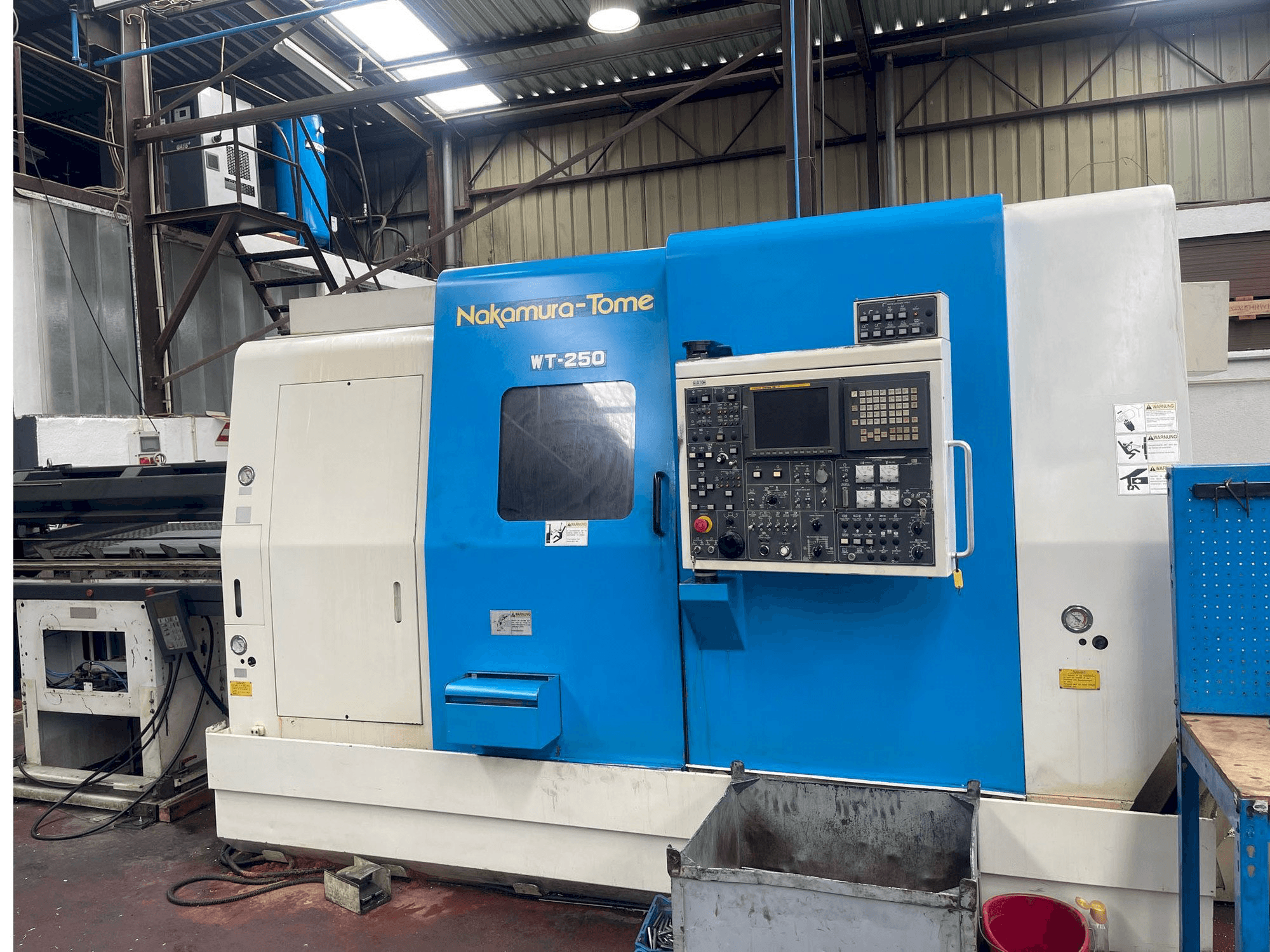

This NAKAMURA Tome WT-250 Lathe machine was manufactured in the year 2001. It has 7 axis and operates with a FANUC 18i-T control unit. The machine works with a main spindle máx. diameter bar of 65mm and a spindle speed from 59 up to 4500 rpm. Included Barfeeder 1.5M LNS QUICK LOAD SERVO + 4 driven tools.

Overview

brand: NAKAMURA
year: 2001
MODEL: Tome WT-250
application type: Turning
Location: Portugal
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - NAKAMURA Tome WT-250

Control Unit

Brand: FANUC
Model: 18i-T

Main drive

Number of spindles: 2
Spindle speed range: 59 - 4500 1/MIN
Spindle motor power: 18,5 kW
Number of axis: 7

Turret

Number of turrets: 2

Media

Chip conveyor: Yes

Additional Equipment

- Barfeeder 1.5M LNS QUICK LOAD SERVO + 4 driven tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle máx. Diameter bar – 65mm
- - Diameter max. Turning: 250 mm
- - Nose : a2-6
- - C axis : 0,001 [°]
- - Sub-spindle: diameter max bar – 51mm
- - Nose : a2-5
- - Power spindle: 11 kw
- - Diameter max. Turning: 165 mm
- - C axis : 0,001 ° travell: 620mm
Qualitative Machine Benefits:
- - Turret 1 nº driven tools – 12 x/z travell: 195/600 [mm] y travell : +/- 41 [mm] drivens tools speed: 80 - 3600 [rpm] driven tools power : 3,7 [kw]
- - Turret 2 nº driven tools – 12 x/z travell: 195/600 [mm] drivens tools speed: 80 - 3600 [rpm] driven tools power: 3,7 [kw]

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
