- NAKAMURA-TOME TW-20 Lathe

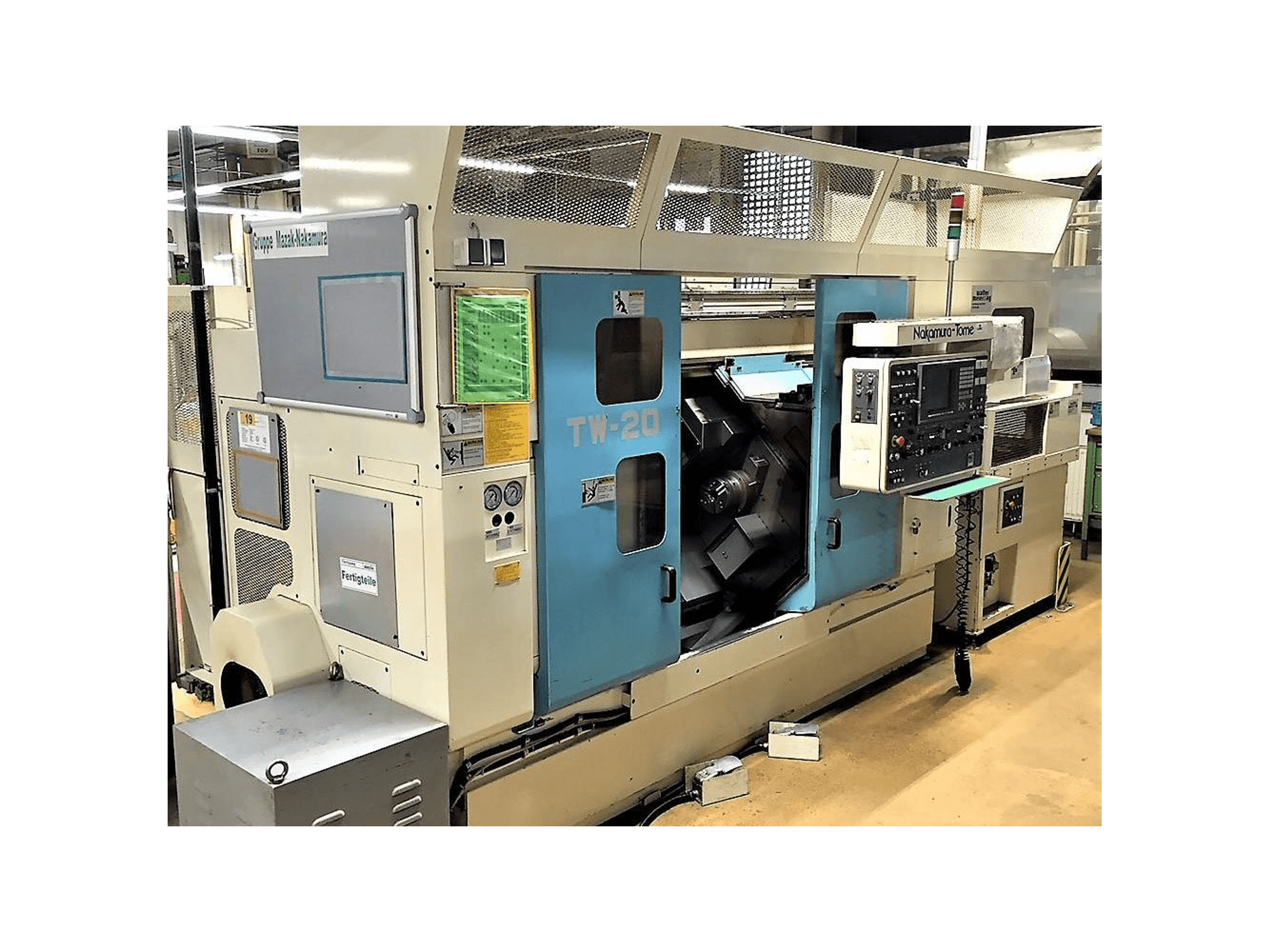

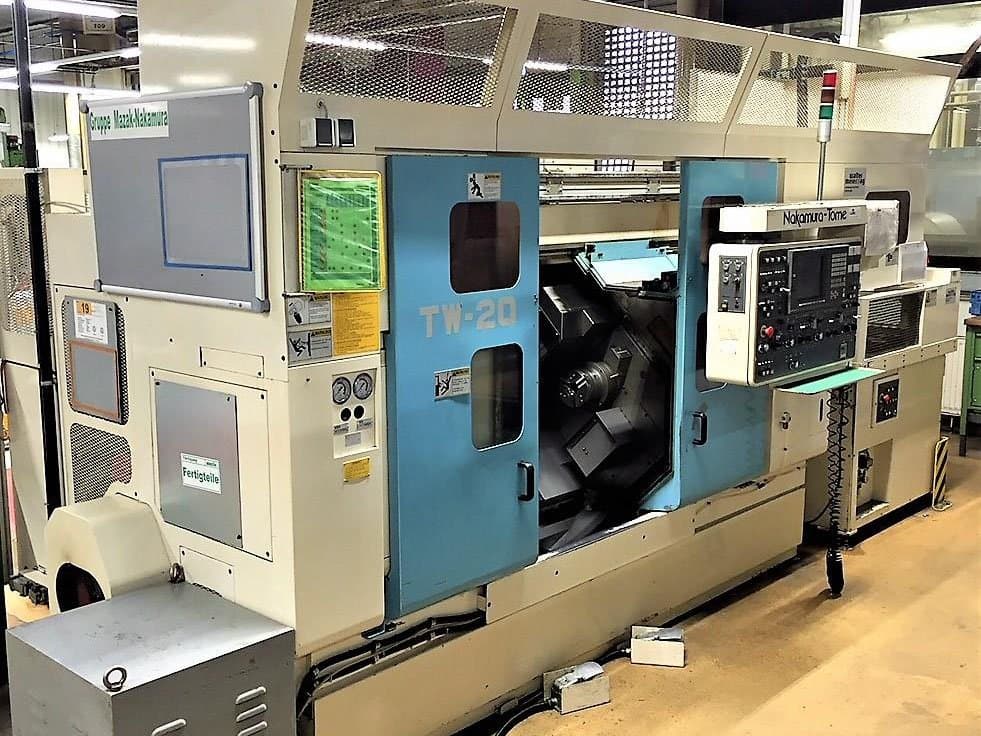

This NAKAMURA-TOME TW-20 Lathe was built in Japan in 2002 and has been operative for 12500 hours. Equipped with a FANUC Series 18-T Control unit, this machine stands out due to its live tooling capability. Several additional equipment such as different toolholders, come included in the delivery.
Overview
- brand: NAKAMURA-TOME
- year: 2002
- MODEL: TW-20
- production hours: 12500
- application type: Turning
- Location: Spain
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - NAKAMURA-TOME TW-20
General Data
- Measurements width: 3645 mm
- Measurements depth: 2179 mm
- Measurements height: 200 mm
- Machine weight: 6500 kg
Control Unit
- Model: Series 18-T
- CNC main language: Spanish
- Brand: FANUC
Main drive
- Number of spindles: 2
- Spindle speed range: 5000 1/min
Movement
- X-AXIS Movement: 280 mm
- Y-AXIS Movement: 52 mm
- Z-AXIS Movement: 850 mm
Turret
- Number of turrets: 16
Media
- Power consumption: 15 kVA
Additional Equipment
- - Automatic loading and unloading gantry robot
- - 2x Renishaw Automatic Tool Probe
- - 10x External Toolholders
- - 6x Internal Toolholders
- - 2x High pressure pump (30 bars)
- - 8x Radial Tool Holders for Live tools
Additional Information
- Technical Machine Benefits:
- - Interface to advance bars
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
