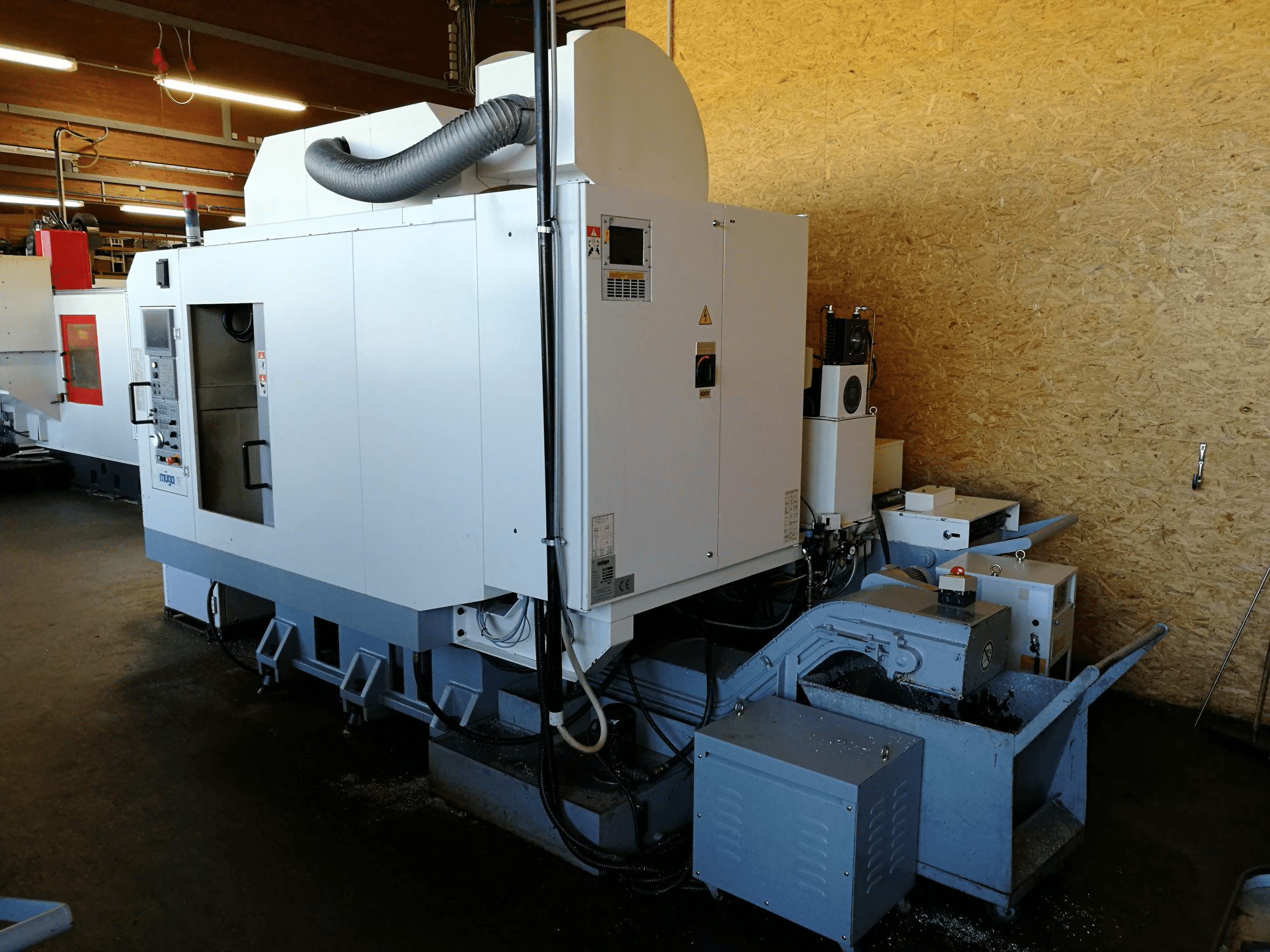

Müga S500 Milling Machine

Show in original language

This Müga S500 Milling Machine from 2005 has a production record of 30000 working hours. Operated through a Mitsubishi Control unit, the machine comes with an EGS Loading Robot and 10x loading tables as additional equipment. In the past, this machine has mostly handled aluminium and produced handles for the automotive industry. As key features, the S500 stands out for its 2-sided table and automated clamping system and is an ideal model for working with automated parts.

Overview

brand: Muga
year: 2005
MODEL: S500
production hours: 30000
application type: Milling
Location: Germany
machine type: CNC Milling Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - Muga S500

General Data

Measurements width: 1916 mm
Measurements depth: 4130 mm
Measurements height: 2105 mm
Machine weight: 5650 kg

Control Unit

Brand: MITSUBISHI

Main drive

Number of spindles: 1
Spindle speed range: 240-8000 1/min
Spindle motor power: 2.2 kW
Tool taper: BT 30

Movement

X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 36 m/min
X-AXIS Backlash: 0.01 mm
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 36 m/min
Y-AXIS Backlash: 0.10 mm
Z-AXIS Movement: 300 mm
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece weight: 250 kg

Table

Outer length: 600 mm
Outer width: 400 mm
TSlots size: 14 H8 mm
Number of tslots: 3

Tools

Slots in storage: 20
Max weight: 3 kg
Max tool diameter: 70 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 25 kVA
Air pressure: 5 bar
Lubrication tank: 150-200 L
Oil pressure: 40 bar
Chip conveyor: Yes

Additional Equipment

- EGS Loading robot
- 10x Loading tables

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
