MTRent T22Y Lathe

Show in original language

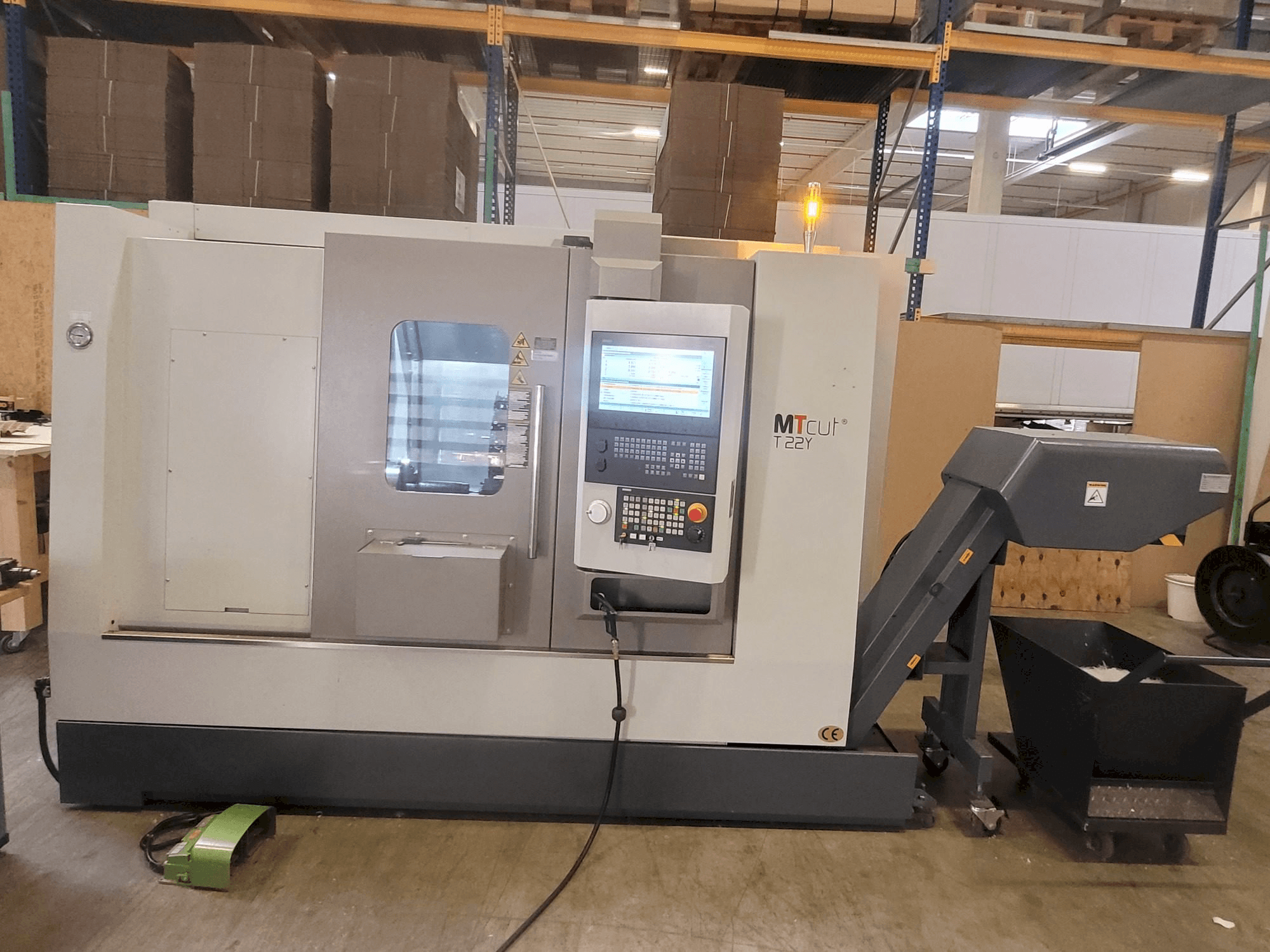

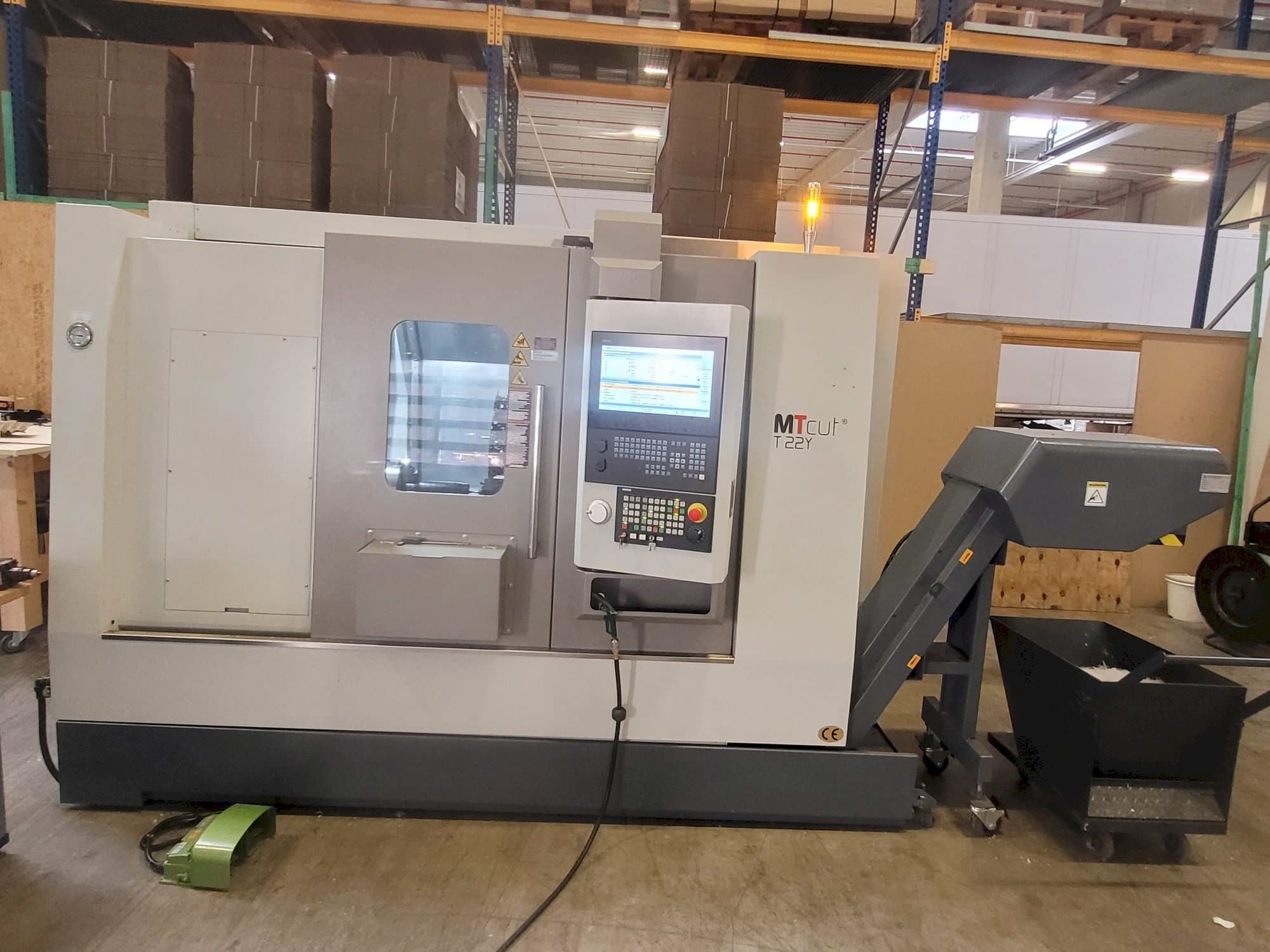

This MTRent T22Y Lathe was made in 2019 in Taiwan and has 1294 production hours. It is equipped with a SIEMENS SINUMERIK 828D control unit. The machine has a spindle speed of 4500 rpm.

Overview

brand: MTRent
year: 2019
MODEL: T22Y
production hours: 1294
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - MTRent T22Y

General Data

Machine weight: 5700 kg

Control Unit

Model: Sinumerik 828D
Brand: SIEMENS

Main drive

Spindle speed range: 4500 1/MIN

Movement

X-AXIS Movement: 200 mm
Y-AXIS Movement: 110 (± 55)mm
Z-AXIS Movement: 560 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Machine has x, y and z axis

Extra information

- Main spindle chuck size: 200 mm Max. swing Ø over bed: 610 mm Max. turning Ø: 270 mm Max. turning length: 510 mm X/Z travel: 200 / 560 mm Y travel: 110 (z 55) Max. Bar capacity: 65 mm Main spindle Spindle speed: 4500 rpm Number of driven tools Tool positions: 16 BMT 45 Machine weight: 5700 kg Siemens Touch Display 15,6 '' Jaw chuck Ø 200 mm C-axis Y-axis Chip conveyor Coolant system, 20 bar Work area light; foot pedal chuck; Machine status light multicolored CE test Tools: 7 driven tools Various tool holders + tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
