➤ Used MTcut V 85 H For Sale | gindumac.com

Show in original language

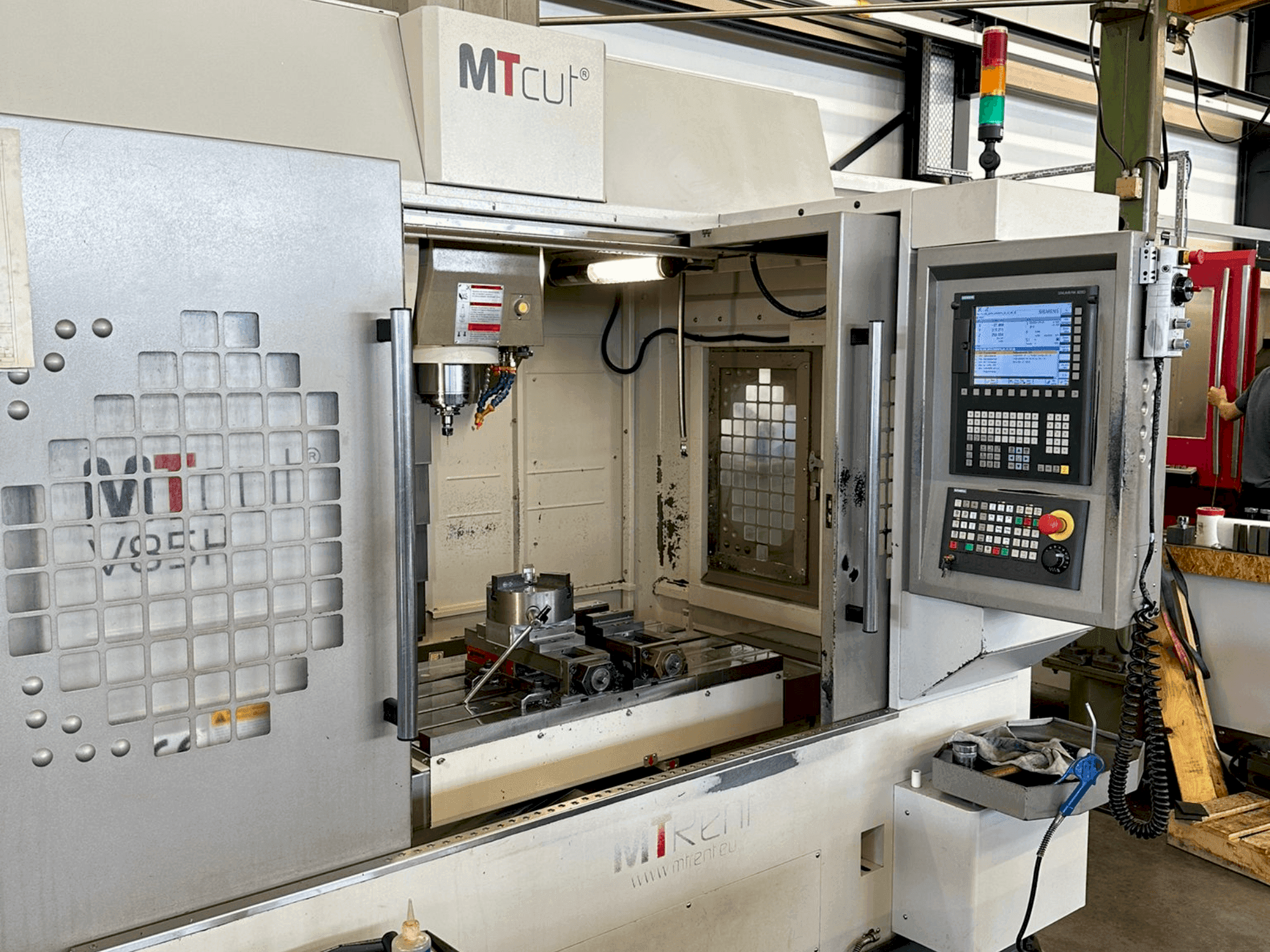

This 3-axis MTcut V85H vertical machining centre was manufactured in 2013. It features a robust work table measuring 1000 x 520 mm with a maximum load capacity of 800 kg. The spindle operates at speeds ranging from 60 to 15,000 rpm, accommodating tools up to 80 mm in diameter and 300 mm in length. With 24 tool positions and a feed rate of up to 12,000 mm/min, the MTcut V85H machine we have for sale is ideal for diverse machining tasks. Contact us for further details.

Overview

brand: MTcut
year: 2013
MODEL: V 85 H
production hours: 35411
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: December 2024

Technical Information - MTcut V 85 H

General Data

Measurements width: 2530 mm
Measurements depth: 3100 mm
Measurements height: 3000 mm
Machine weight: 7800 kg

Main drive

Number of spindles: 1
Spindle speed range: 60-15000 rpm 1/MIN
Tool taper: SK40
Number of axis: 3

Movement

X-AXIS Movement: 850 mm
Y-AXIS Movement: 520 mm
Z-AXIS Movement: 610 mm

Table

Table load: 800 kg

Tools

Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Additional Equipment

- Work table:Size: 1000 x 520 mm
- T-slots: 18 mm x 5 x 100 mm
- Distance between spindle nose and work table: 130-740 mm
- Distance spindle nose stand: 623 mm
- Feed rate: 1-12,000 mm/min
- Spindle diameter: 70 mm

Additional Information

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
