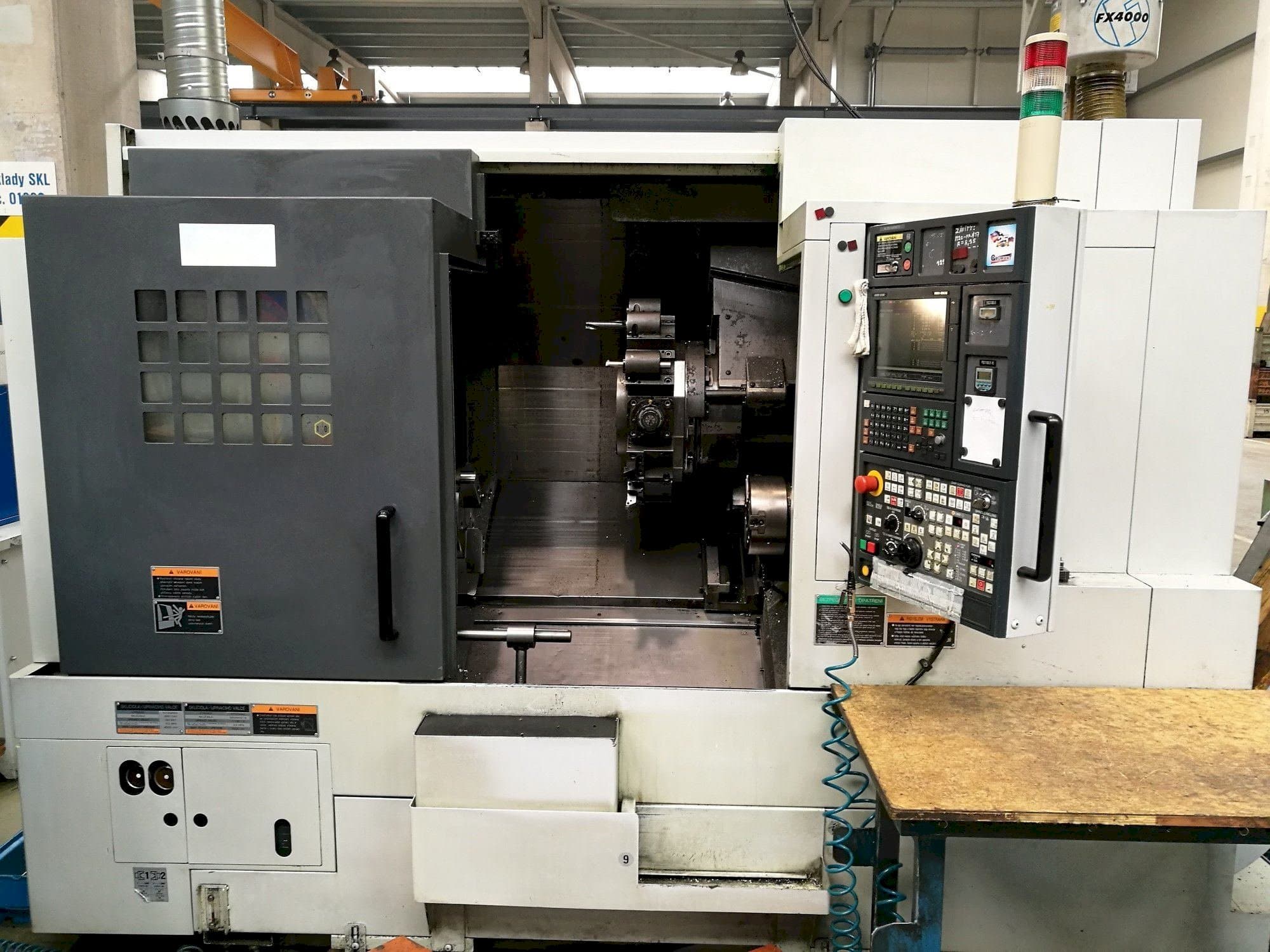

MORI SEIKI - NL 2500 SMCES-TUR-MOR-2008-00001

Additional Equipment

• - Installation interface for bar loader
• - Tool holders equipment included : External single holders, 3 units External double holders, 2 units. Internal single holders, 4 units. Double internal tool holders, 2 units. Motorized radial holders, 2 units. Axial Motorized Door, 1 unit. Frontal Holder, 1 unit. Truncated Holder, 1 unit

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Sub-spindle
  • - Turret with 12 stations, all of them motorized
  • - C-axis on both spindles
  • - Ntegrated sub-spindle head motor 11 kw. Motor direct motorized tools 5,5 kw. Motor starting torque 640 n/m.
  • - Motors without belts or steps
  • - Main spindle size a2-8. Secondary spindle size a2-6
  • - Bar pitch 80 mm
  • - 250 mm main spindle chuck with metric system. 170 mm sub-spindle chuck with metric system
  • - Prismatic guides on all axes
  • - Motorized tools speed 6. 000 rpm. Turning diameter 755 mm
• Qualitative Machine Benefits:
  • - Machinable diameter 365 mm. Machinable length 755 mm
  • - Oil cooler for both daikin spindles
  • - Mapps 4 automatic conversational programming system. Automatic stress control and tool consumption monitor
  • - Indexing time for turret change 0. 2 seconds. Two arms for automatic measurement of renishaw tools
  • - Communication ports via usb, pcmcia card and rs 232
  • - Automatic parts collector. Double foot pedal for opening and closing of main and sub-spindle independent
  • - Lateral chip extractor hinge type
  • - Electrical transformer
  • - Documentation, parts list, electrical diagrams, programming and operation manual
  • - Machine currently in operation

Payment Terms

• Payment in advance

• Asset Financing
