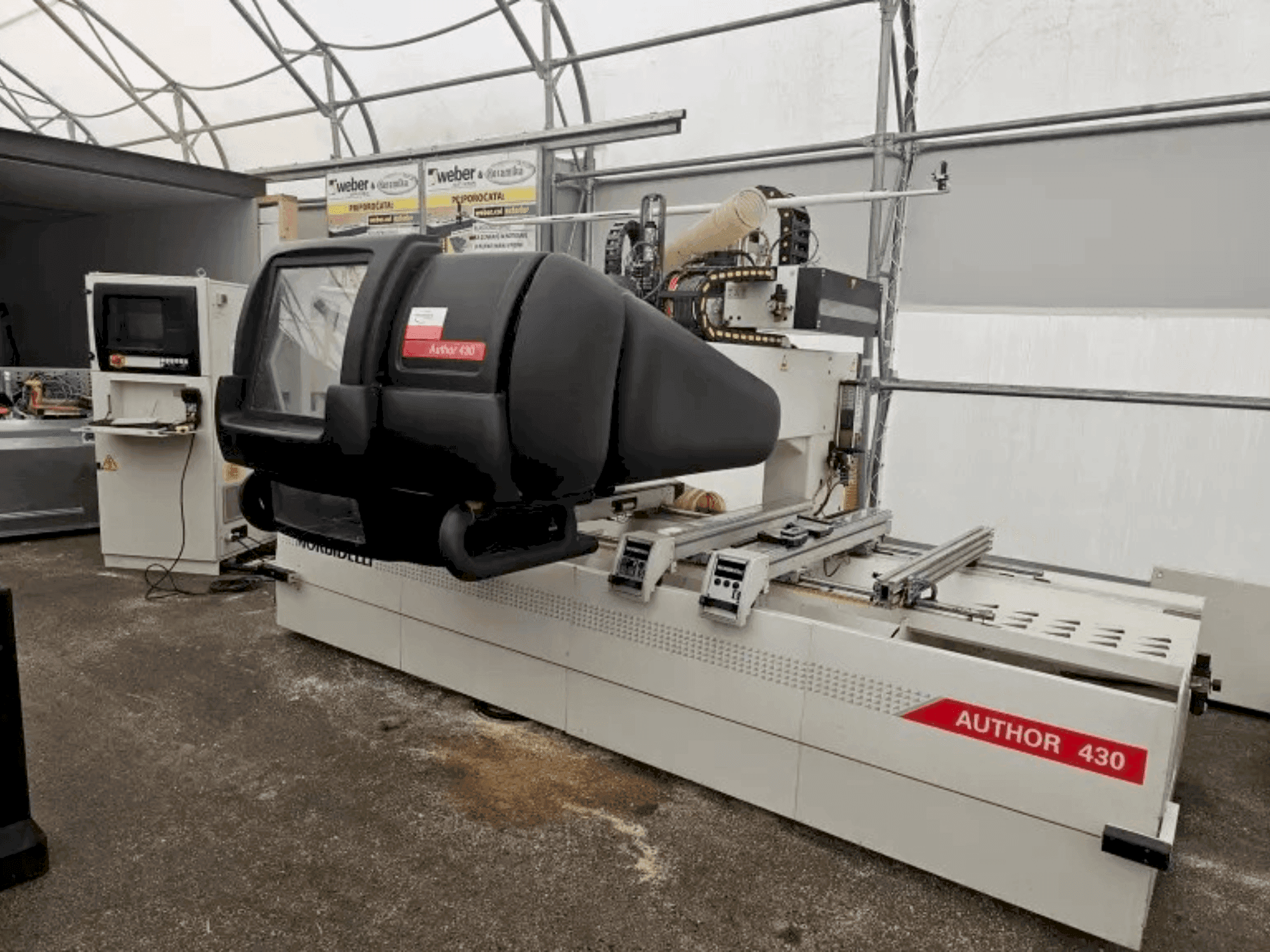

This 3-axis MORBIDELLI Author 430 woodworking machine was manufactured in 2006. It features a working area of 3050x1385 mm, a maximum workpiece height of 180 mm, and a router unit with a 6.6 kW power and a 12-position tool changer. It also includes a booring unit with 10 vertical and 4 horizontal spindles. Ideal for diverse woodworking tasks, the MORBIDELLI Author 430 machine we have for sale. Contact us for further details regarding this woodworking machine.
Overview
- brand: MORBIDELLI
- year: 2006
- MODEL: Author 430
- application type: CNC Wood Machining
- Location: Slovenia
- machine type: CNC Wood Machining Centre
- availability: Immediately
Technical Information - MORBIDELLI Author 430
General Data
- Measurements width: 2450 mm
- Measurements depth: 7000 mm
- Measurements height: 2450 mm
- Machine weight: 4500 kg
Main drive
- Spindle speed range: 9000 - 18000 rpm 1/MIN
- Spindle motor power: 6.6 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 3050 mm
- Y-AXIS Movement: 1385 mm
- Z-AXIS Movement: 200 mm
Tools
- Number of stations: 12
Additional Information
- Technical Machine Benefits:
- - Speed (x-axis): 50/80 m/min
- - Speed (y-axis): 40 m/min
- - Speed (z-axis): 22. 5 m/min
- - Vertical spindles: 10
- - Horizontal spindles: 4
- - Vacuum pump: 100 m³/h
- - High spindle speeds for efficient machining.
- - Multiple tool positions for versatile operations.
- - Robust boring capability with multiple spindles.
- Qualitative Machine Benefits:
- - Efficient tool management with a 12-position tool changer.
- - Strong workpiece holding with a robust vacuum pump.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
