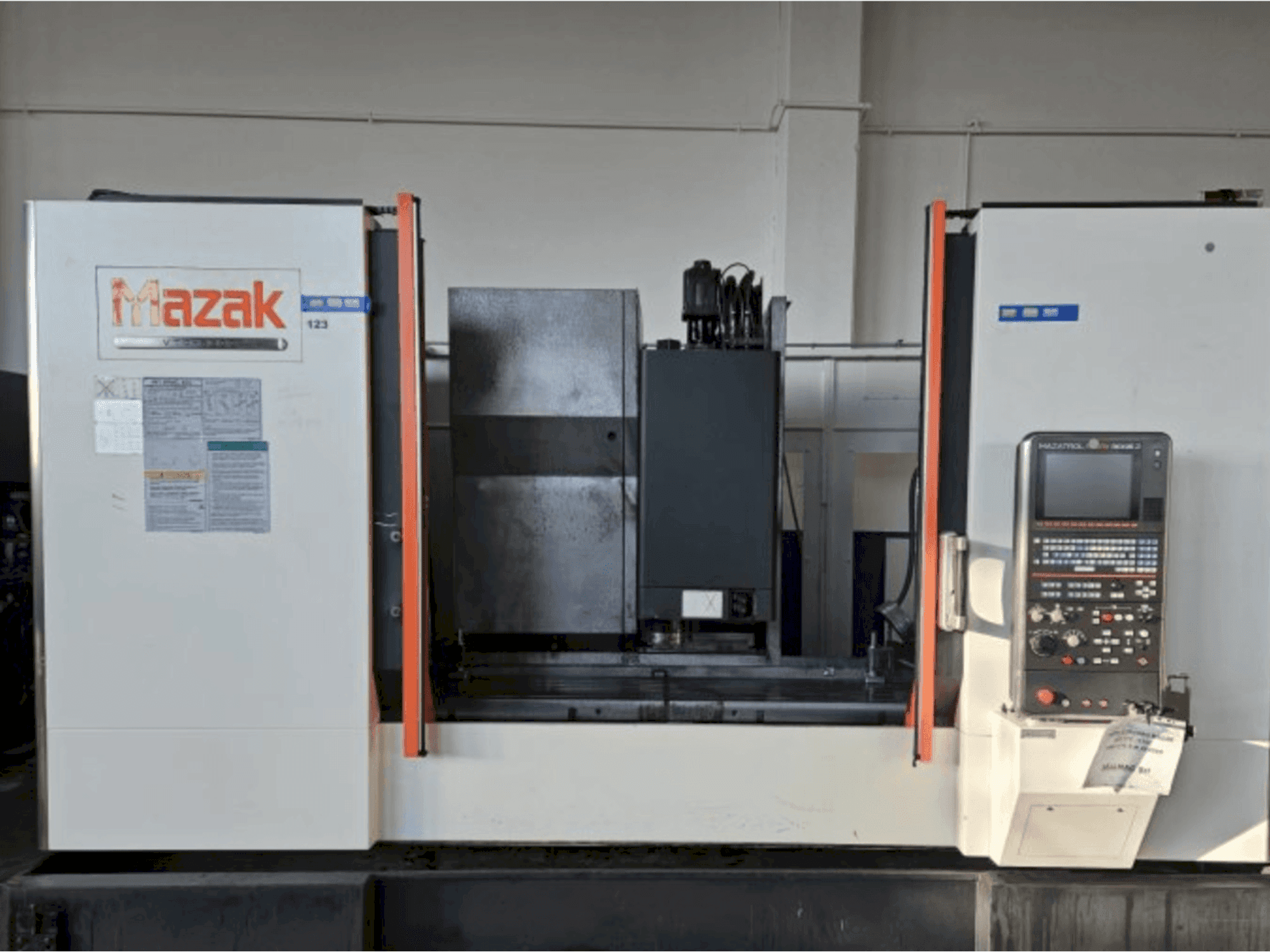

MAZAK VTC-530C Vertical Machining center

Show in original language

This MAZAK VTC-530C Vertical Machining center was manufactured in the year 2016. It is equipped with a Mazatrol Matrix Nexus 2 control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: Mazak
year: 2016
MODEL: VTC-530C
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak VTC-530C

General Data

Measurements width: 4525 mm
Measurements depth: 3145 mm
Measurements height: 2759 mm
Machine weight: 9710 kg

Control Unit

Model: Matrix Nexus 2
Brand: MAZATROL

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 18.5 kW
Tool taper: ISO 40
Number of axis: 3

Movement

X-AXIS Movement: 1740 mm
X-AXIS Rapid traverse: 42 m/min
Y-AXIS Movement: 530 mm
Y-AXIS Rapid traverse: 42 m/min
Z-AXIS Movement: 530 mm
Z-AXIS Rapid traverse: 42 m/min

Table

Outer length: 2300 mm
Outer width: 530 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum torque nm 95
- - Tool magazine for 30 tools
- - Automatic doors
- - Central bulkhead for pendulum work
- - External robot/automation interface
- - No. 1 self-centering with pneumatic closing
- - Remote flyer
- - High pressure pump 15 bar
- - Right side chip conveyor
- - Machine manuals, part lists, cnc in digital and paper format
Qualitative Machine Benefits:
- - Original ce certification

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
