Mazak Quick Turn 200MS Turning

Show in original language

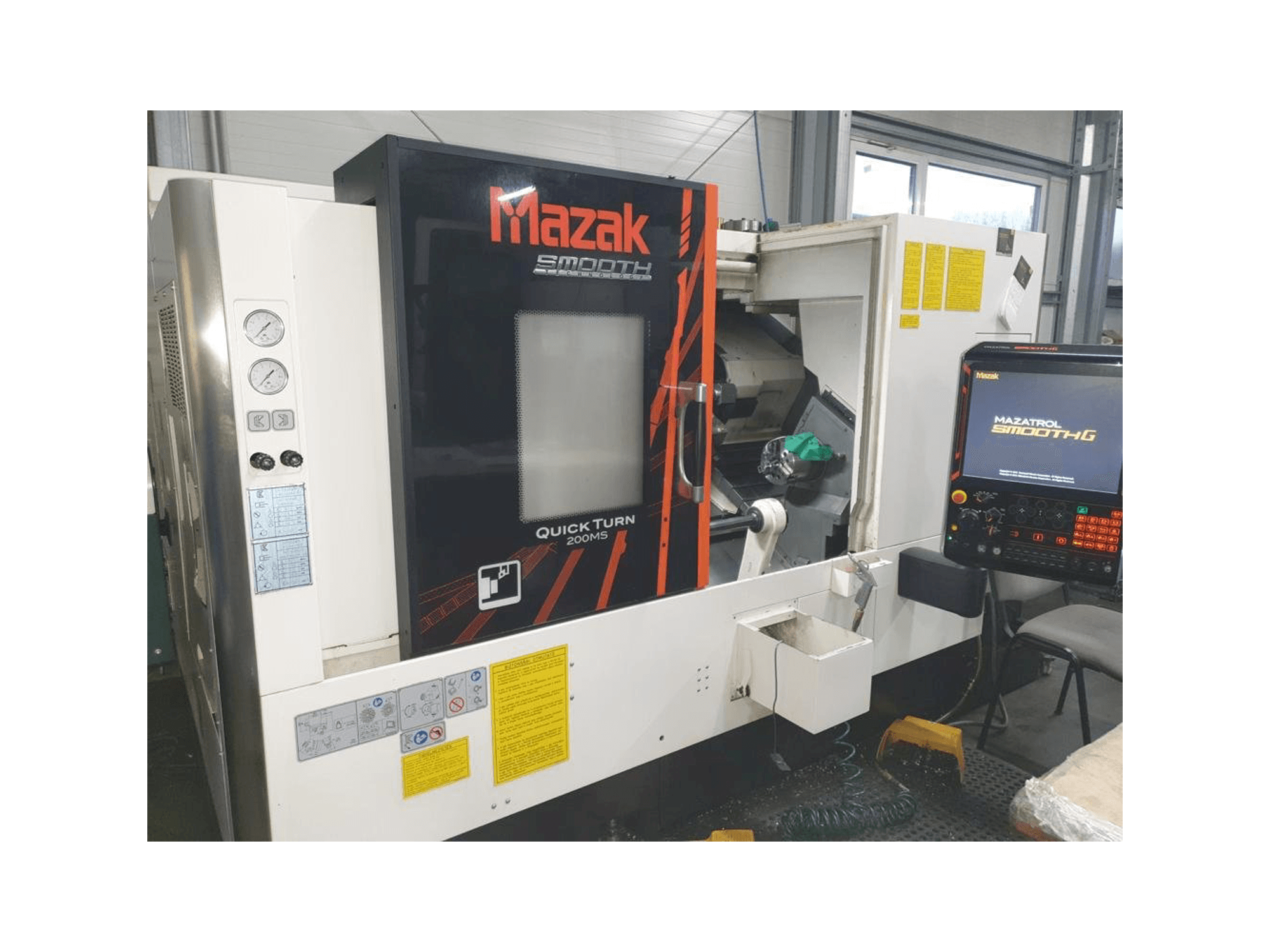

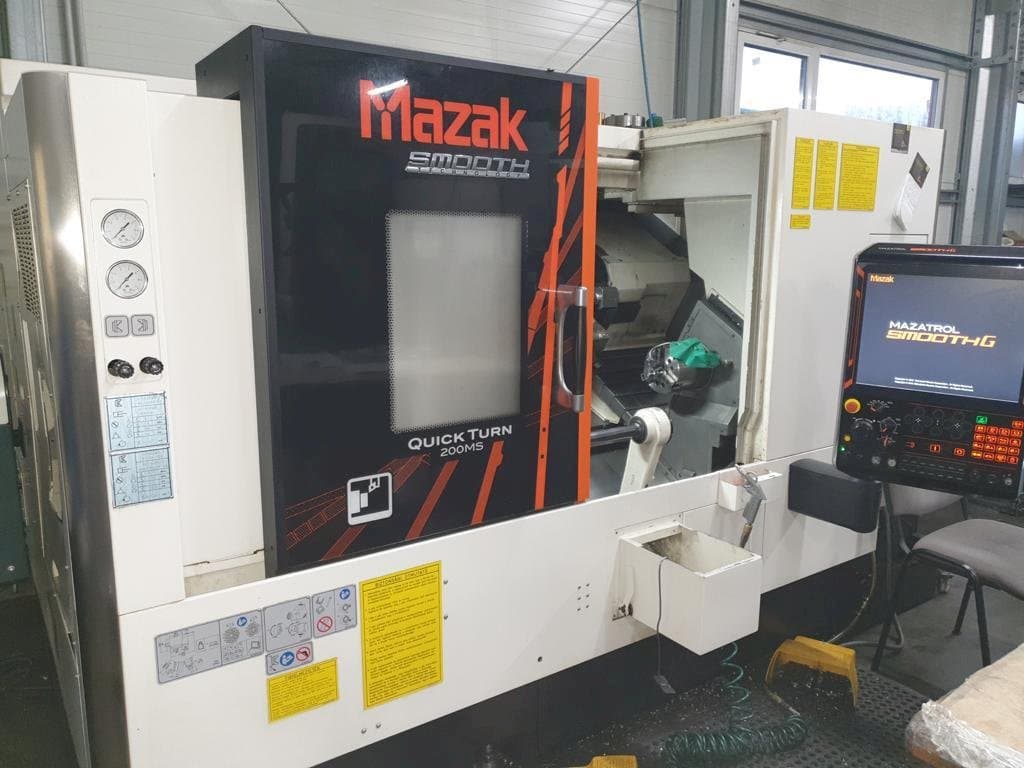

This Mazak Quick Turn 200MS Turning machine was manufactured in the year 2017. This 4th axis machine can work with a spindle speed up tp 5000 rpm. It contains different additional pieces such as a high power pressure cooling and a rod feed system.

Overview

brand: Mazak
year: 2017
MODEL: Quick Turn 200MS
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - Mazak Quick Turn 200MS

General Data

Measurements width: 1845 mm
Measurements depth: 2760 mm
Measurements height: 1857 mm
Machine weight: 5850 kg

Main drive

Spindle speed range: 5000 1/MIN
Spindle bore: 76 mm (Diameter)
Number of axis: 4

Movement

X-AXIS Movement: 234 mm
Y-AXIS Movement: 555 mm
Z-AXIS Movement: 625 m MM

Additional Equipment

- High power Pressure cooling
- Automatic workpiece catcher
- Rod Feed System
- Coolant tank hood

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle size: 203 mm
- - Maximum rotation: 153 mm
- - Standard machine diameter: 276 mm
- - Maximum machining diameter: 380 mm
- - Spindle cutting: 65 mm
- - Spindle maximum chuck durable weight: 300 kg
- - Rear spindle maximum support weight: 150 kg
- - Engine output power: 26 kw
- - Maximum torque: 465 nm
- - Spring maximum speed: 6000 min.
Qualitative Machine Benefits:
- - Number of tools: 12
- - Tool size (turning to outside diameter): 25mm
- - Tool size (turning to inside diameter): 40 mm
- - Tool size (rotary drill): 20 mm
- - Milling spindle motor output power: 5. 5 kw
- - Milling spindle maximum torque: 47 kw
- - High speed x axis: 30 m/min
- - High speed z axis: 33 m/min
- - High speed w axis: 30 m/min
- - Spindle center height: 1020 mnm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
