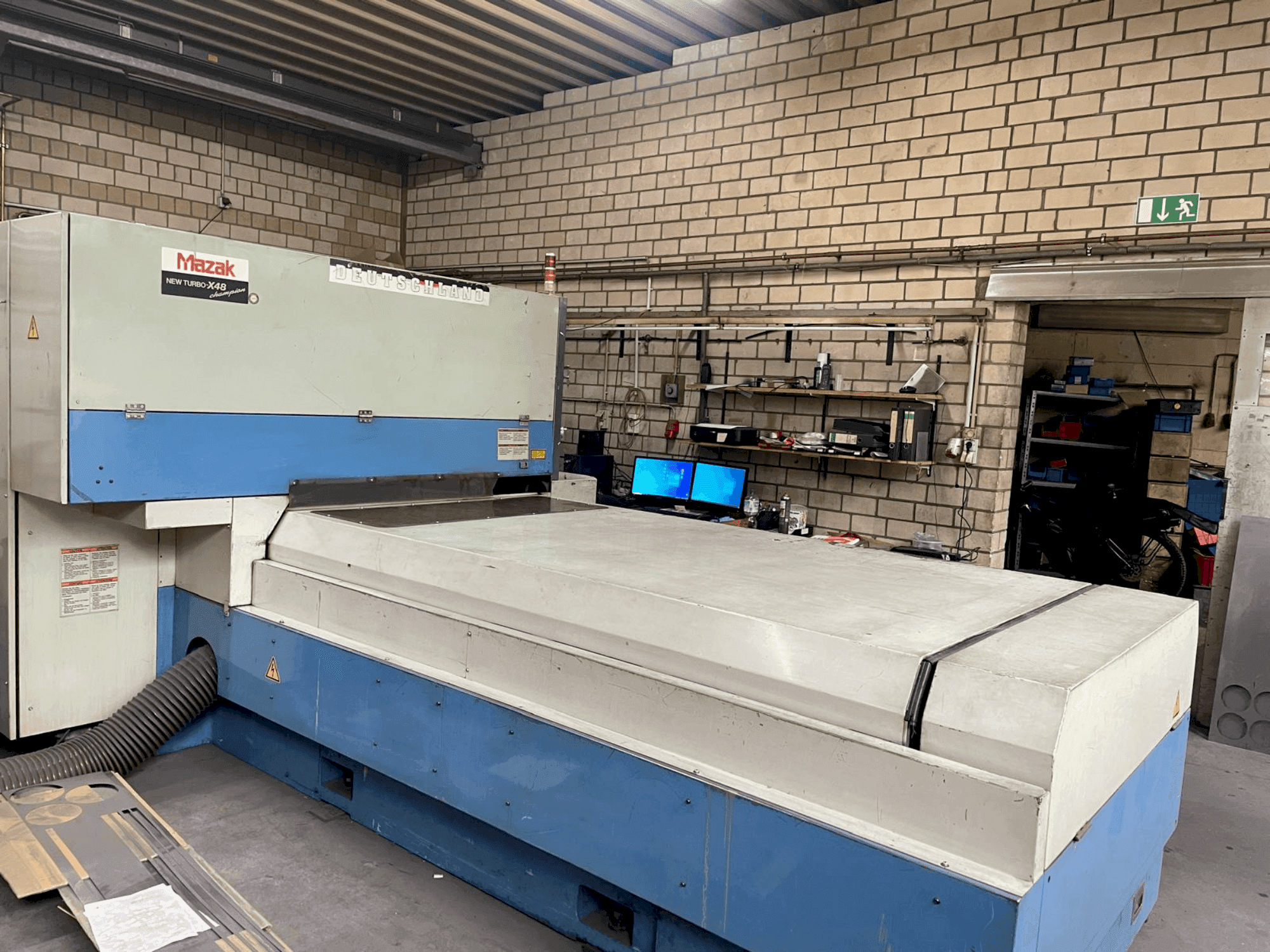

This 3-axis Mazak NT-X48 Laser cutting machine was manufactured in 1999. It features a 1.5 kW laser with a 5" focus lens, capable of handling maximum machining dimensions of 1250x2500 mm and a maximum loading capacity of 300 kg. The rapid traverse rates are impressive at 24m/min for X&Y axes and 20m/min for Z. It also includes a chip conveyor and a robust NC unit, MAZATROL L-32B. For more information about this Laser cutting machine, please reach out to us.
Overview
- brand: Mazak
- year: 1999
- MODEL: NT-X48
- application type: Cutting
- Location: Germany
- machine type: CO2 Laser Cutting Machine
- availability: Immediately
- control unit brand: Mazak
Technical Information - Mazak NT-X48
General Data
- Machine weight: 9900 kg
Control Unit
- Brand: Mazak
- Model: MAZATROL L-32B
Main drive
- Number of axis: 3
Movement
- X-AXIS Movement: 2650 mm
- X-AXIS Rapid traverse: 24m/min
- Y-AXIS Movement: 1270 mm
- Y-AXIS Rapid traverse: 24m/min
- Z-AXIS Movement: 100 mm
- Z-AXIS Rapid traverse: 20m/min
Table
- Table load: 300 kg
Media
- Chip conveyor: Yes
Additional Equipment
- - Machining head with a 5" focus lens on 1kW laser
- - Worksheet clamp and locator: 3 clamps and 1 locator
- - Suction system as shown in the picture
Additional Information
- Technical Machine Benefits:
- - Max workpiece size: 2500 x 1250 x 12 mm
- - Worksheet table height: 900 mm
- - High precision with positioning accuracy of ±0. 01/500mm for x & y axes and ±0. 01/100mm for z axis
- - Rapid traverse rates enhance productivity
- - Hybrid type laser cutting machine suitable for various materials
- - Z axis profiling: contact and following type
- - Rated laser output: 1. 5 kw
- Qualitative Machine Benefits:
- - Repeatability of ±0. 005 mm across all axes ensures consistent quality
- - Robust design with a significant machining dimension capacity
- - Machine still under power.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
