➤ Used Mazak INTEGREX i-400 S For Sale | gindumac.com

Show in original language

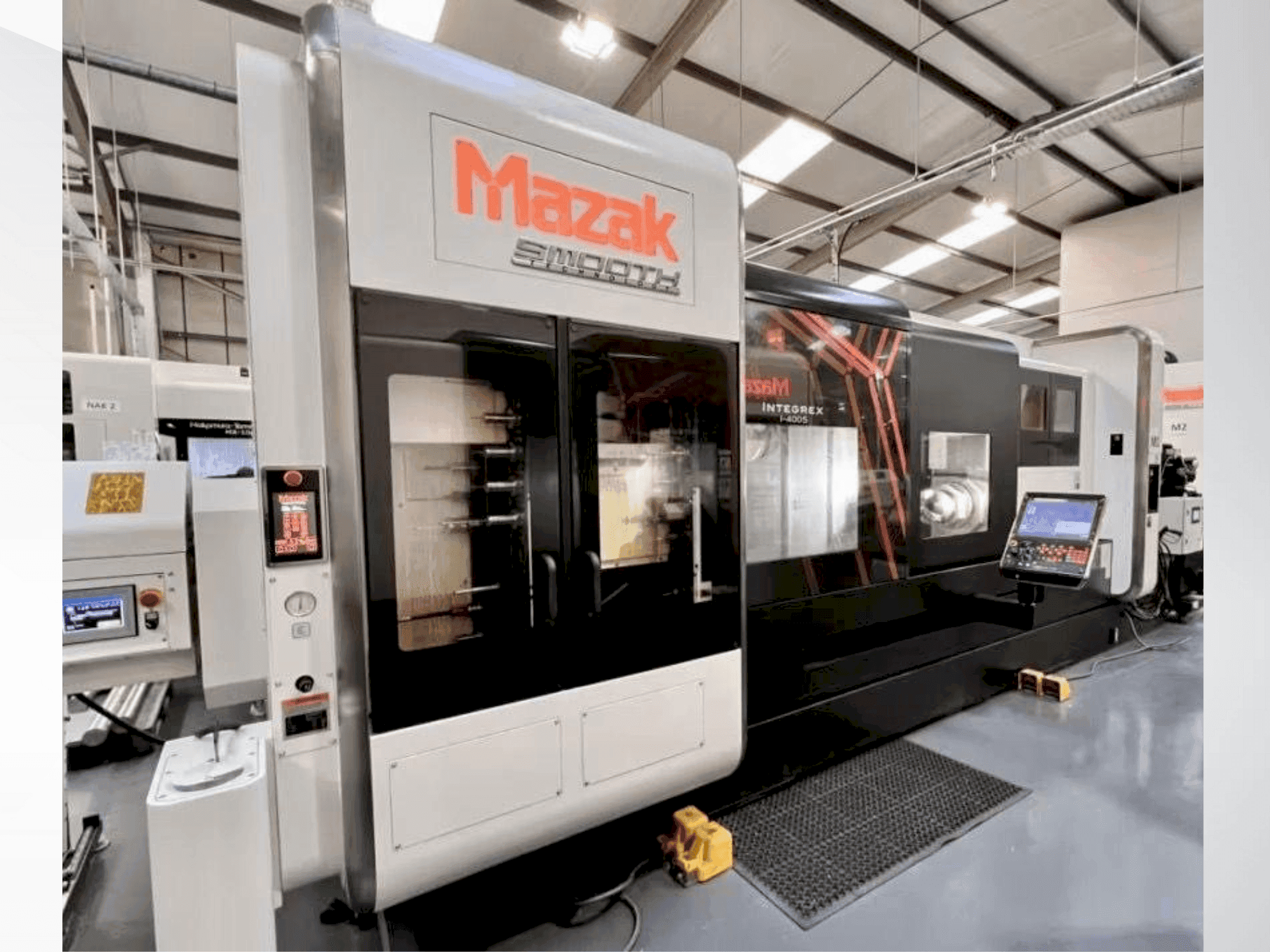

This 5-axis Mazak INTEGREX i-400 S was manufactured in 2018 and features advanced Mazatrol SMOOTH X Control and a full 5-axis capability. It offers a maximum machining diameter of ø658 mm and a length of 2,497 mm. Equipped with a 12" main spindle chuck and a rapid traverse rate up to 50 m/min on the X-axis. Ideal for complex and precise machining tasks. For more information about this universal machining center, please reach out to us.

Overview

brand: Mazak
year: 2018
MODEL: INTEGREX i-400 S
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak INTEGREX i-400 S

Control Unit

Model: Mazatrol SMOOTH X
Brand: MAZATROL

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 615 mm
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 260 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 2563 mm
Z-AXIS Rapid traverse: 40 m/min
W-Axis Movement: 2175 mm
W-Axis Rapid traverse: 30 m/min
B-AXIS Movement: -30° to 210° MM

Workpiece

Workpiece drm over bed: 658 mm
Workpiece drm: 658 mm
Workpiece x: 2497 mm

Tools

Max weight: 12 kg
Max tool diameter: 90 mm
Max tool length: 400 mm

Additional Equipment

- Hydrafeed MSV110 Barfeed
- Milling Spindle Type: Spindle turret with ATC

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Bar work capacity: ø102 mm
- - Main spindle chuck size: 12"
- - Main spindle nose: a2-8
- - Main spindle bore: 112 mm
- - Bearing id: 150 mm
- - Second spindle hydraulic chuck: 10" through-hole chuck b-210a0815x
- - Second spindle nose: a2-8
- - Second spindle bore: 91 mm
- - Bearing id: 130 mm
- - Max. Milling spindle torque: 120 n:m
Qualitative Machine Benefits:
- - Turning tool shank height: 25 mm
- - Boring bar shank diameter: 40 mm
- - Tool storage capacity: 72 tools
- - Precision control with mazatrol smooth x, high torque milling spindle for robust operations
- - No tooling included

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
