Mazak Integrex 400 III ST turning

Show in original language

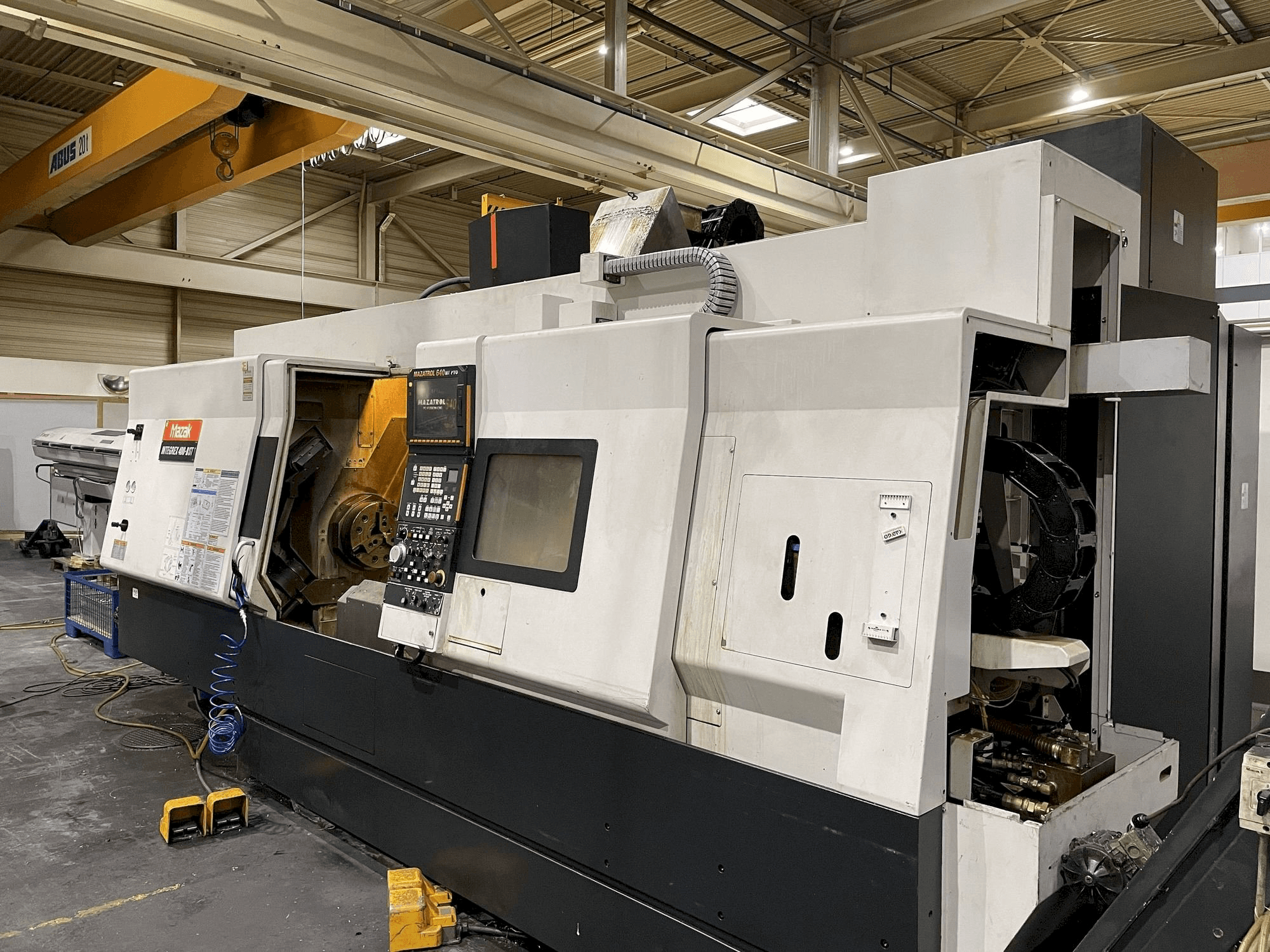

This Mazak Integrex 400 III ST lathe was manufactured in 2005. It has a Mazatrol PC Fusion 640 Mt control unit. This 4 axis machine has a milling spindle speed up to 12000 rpm. The machine turns very precisely in the hundredths range. The spindle and the axes run very smoothly.

Overview

brand: Mazak
year: 2005
MODEL: Integrex 400 III ST
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Integrex 400 III ST

General Data

Machine weight: 13900 kg

Control Unit

Model: PC Fusion 640 Mt
Brand: MAZATROL

Main drive

Number of spindles: 2
Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 630 mm
X-AXIS Rapid traverse: 38 m/min
Y-AXIS Movement: 1585 mm
Y-AXIS Rapid traverse: 26 m/min
Z-AXIS Movement: 1585 mm
Z-AXIS Rapid traverse: 38 m/min

Turret

Number of turrets: 1

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 30 capto tool holders available on request (at an additional cost)
- - Spindle passage = 102 mm
- - Dimensions: 630 mm x 270 mm
- - Drive power main / counter spindle: 30/ 26 kw
- - Circumferential diameter over bed: 760 mm
- - Swing diameter over slide: 760 mm
- - Max. Turning diameter: 1524 mm
- - Max. Turning length: 630 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
