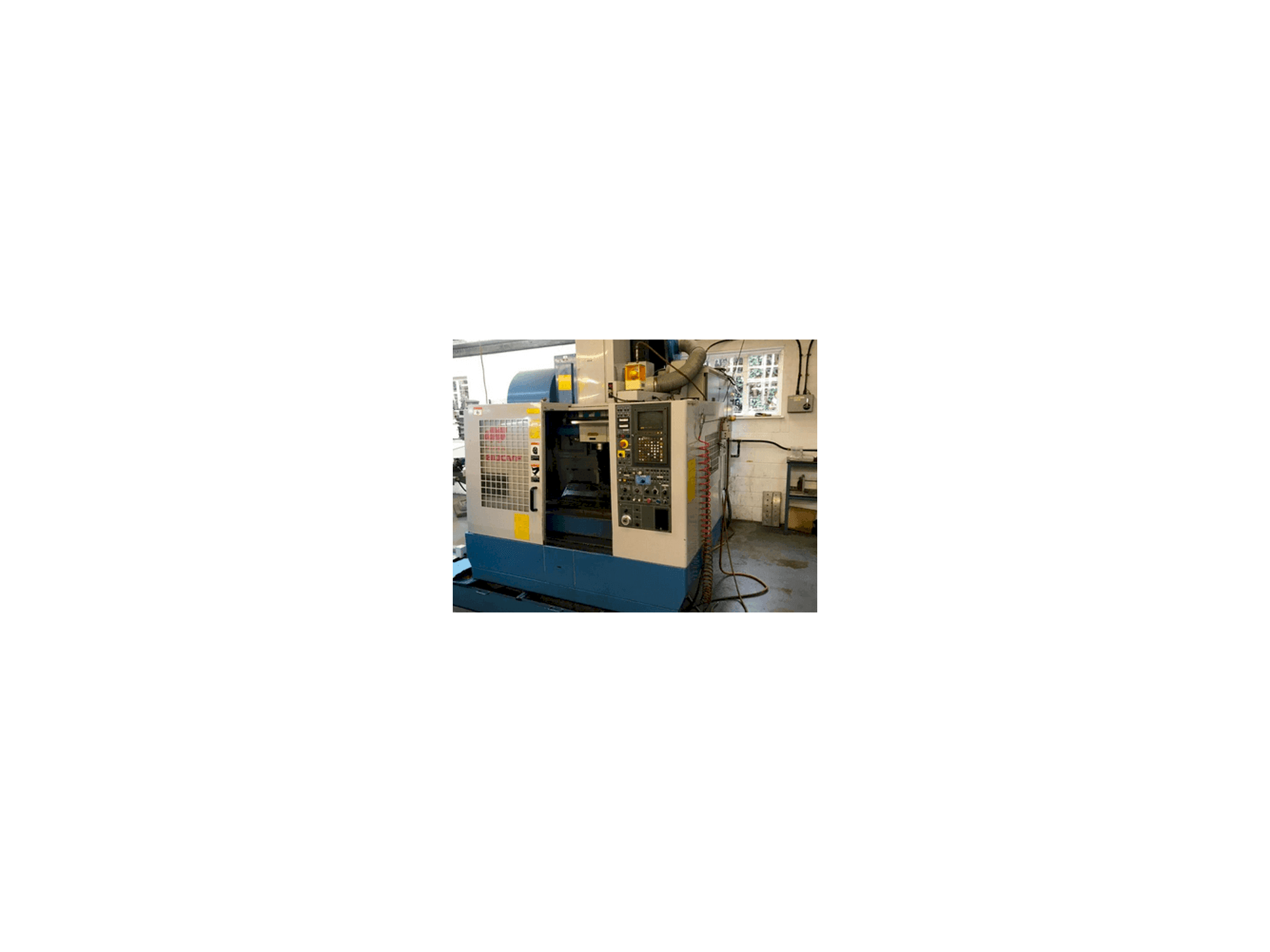

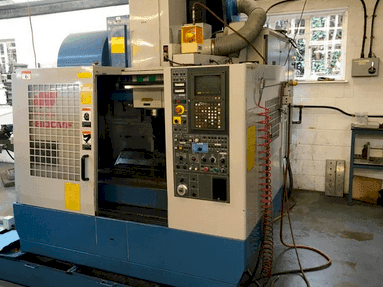

Matsuura MC 600 VF Vertical Machining Center

Show in original language

This Matsuura MC 600 VF Vertical Machining Center was built in the year 1997. It is equipped with a Yasnac i80M control unit. This 4 axis machine has a spindle speed range 30 – 8000 rpm, table size 870 x 400 mm and 4th axis Nikken. It is in great working condition ready to use.

Overview

brand: Matsuura
year: 1997
MODEL: MC 600 VF
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Matsuura MC 600 VF

General Data

Measurements height: 2717 mm
Machine weight: 4000 KG

Control Unit

Model: i80M

Main drive

Spindle speed range: 30 – 8000 1/MIN
Spindle bore: 80 mm
Tool taper: BT40
Number of axis: 4

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 410 mm
Z-AXIS Movement: 470 mm

Table

Outer length: 870 mm
Outer width: 400 mm
Min distance between vertical spindle and table: 150 mm
Max distance between vertical spindle and table: 620 mm
Table load: 400 KG

Media

Main electronic connection: 480V / 60Hz
Power consumption: 36 kVA
Oil tank: 4.2 L

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Includes 4th axis nikken
- - Cooling trough spindle
- - 20 position atc
- - Spindle chiller
- - Coolant tank
- - Include tools brt 40
- - Include back up with parameters
Qualitative Machine Benefits:
- - Great working condition ready to use

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
