Matsuura - H-Plus 405TR-MIL-MAT-2007-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Matsuura H-Plus 405 Horizontal Machining centers

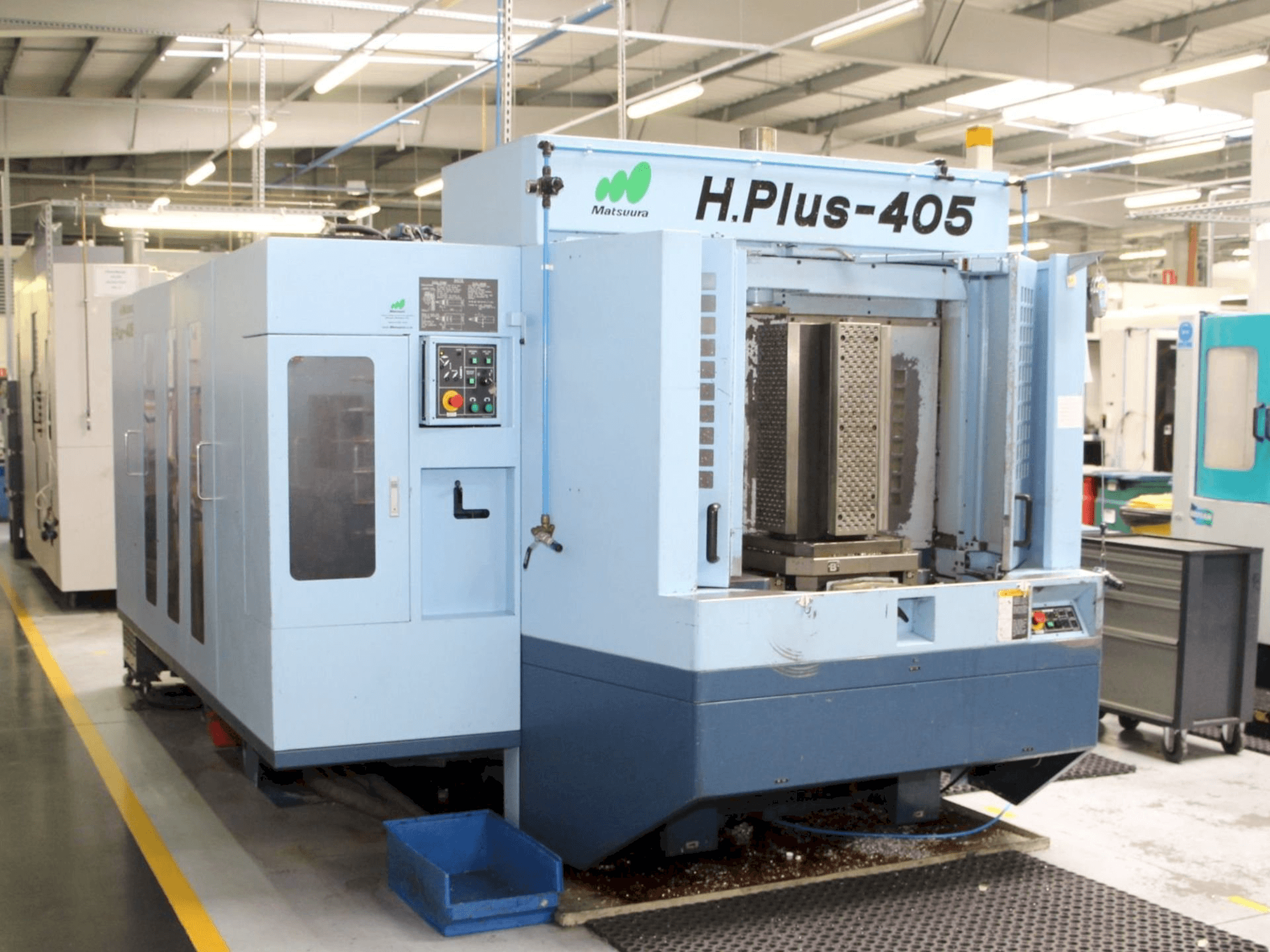

This Matsuura H-Plus 405 Horizontal Machining centers was built in Japan in the year 2007. It shows 15348 cutting hours. It is equipped with a FANUC G-Tech 30l control unit. This 4 axis machine can work with a spindle speed range between 40 ~ 12000 rpm. It comes with 81 tools.
Overview
- brand: Matsuura
- year: 2007
- MODEL: H-Plus 405
- production hours: 15348
- application type: Milling
- Location: Turkey
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - Matsuura H-Plus 405
Control Unit
- Model: G-Tech 30l
- Brand: FANUC
Main drive
- Spindle speed range: 40 ~ 12000 1/MIN
- Spindle motor power: 15 / 22 kW
- Tool taper: BT40
- Number of axis: 4
Movement
- X-AXIS Movement: 660 mm
- X-AXIS Rapid traverse: 50000 mm/min
- Y-AXIS Movement: 660 mm
- Y-AXIS Rapid traverse: 50000 mm/min
- Z-AXIS Movement: 660 mm
- Z-AXIS Rapid traverse: 50000 mm/min
- B-AXIS Movement: 360 deg MM
Tools
- Number of index: 81
- Max tool diameter: Ø90 mm
- Type of tool holder: Shank JIS B 6339 40T
Media
- Main electronic connection: 415 V / 50 Hz
- Power consumption: 52 kVa
Additional Information
- Technical Machine Benefits:
- - Pallet working surface: 500 x 500 mm
- - Pallet loading capacity: 400 kg
- - Pallet max. Work size: ø 700 x h 850 mm
- - Motor torque: 187. 3 / 1120 n·m/min-1
- - Spindle motor power (contin. / short) kw (hp) 15 / 22 spindle max.
- - Rapid feed acceleration: 0. 98 / 1. 21 / 0. 91 g
- - Automatic tool changer
- - Type of retention knob jis b 6339 40p
- - Drum magazine: fixed address
- - Max. Tool diameter mm (in. ) Ø150 (5. 90) : with conditions
- Qualitative Machine Benefits:
- - Renishaw tool setter
- - Renishaw part setter
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
