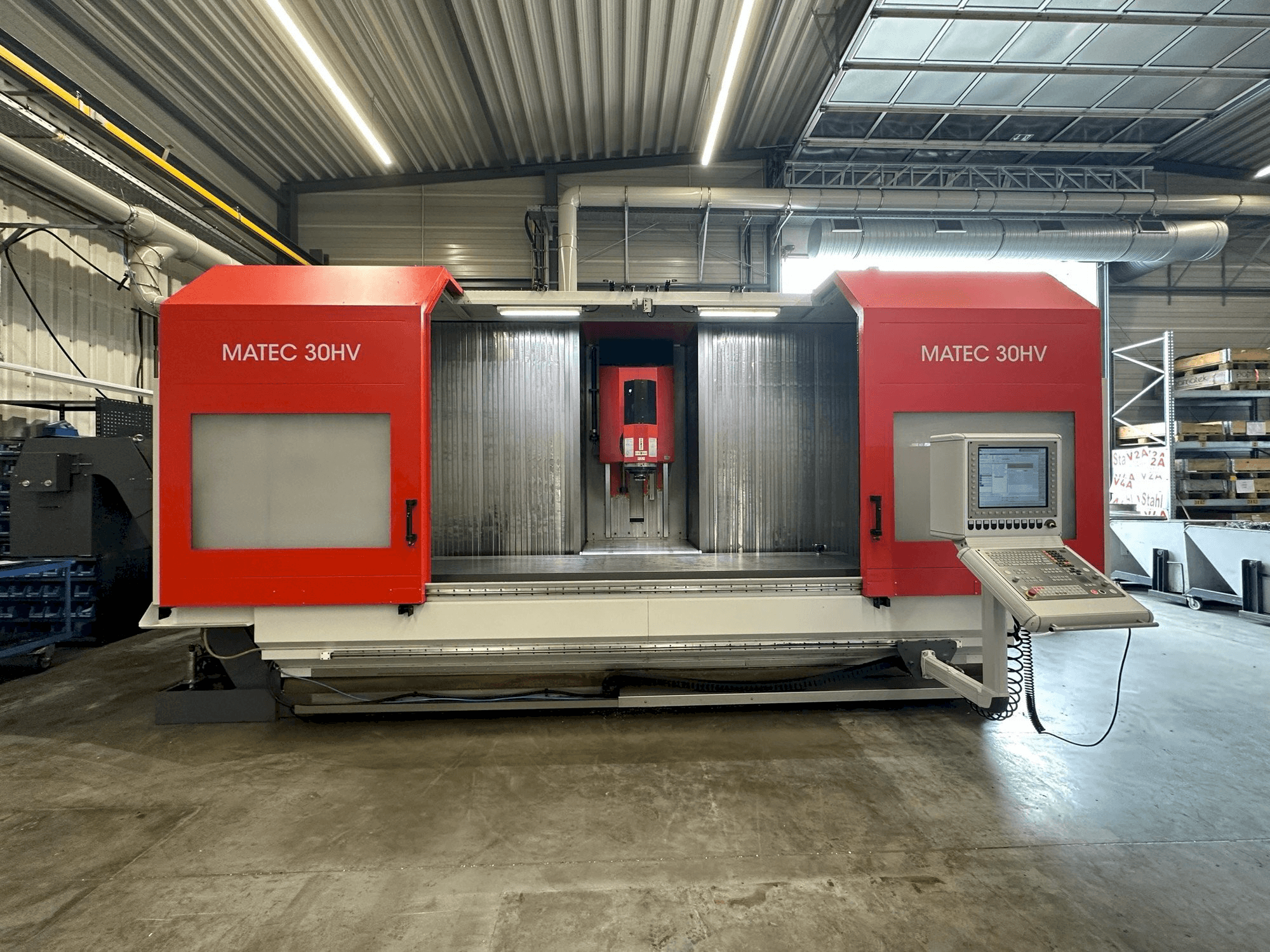

This Matec 30HV Vertical Machining Centre was manufactured in the year 2018 in Germany and has 21719 production hours. It is equipped with a HEIDENHAIN TNC 640 control unit and has 4 axis (4 axis, swivel head +/- 105° with 1° position indexing). The machine has a 12,000 1/min motor spindle with 30 kW (40% ED), HSK63, a tool magazine with 48 stations and internal cooling with 70 bar (paper belt filter) and external nozzles on headstock as second coolant circuit with 20 bar. It comes with a chip conveyor (discharge left, height 1130 mm), electronic handwheel and RENISHAW measuring probe. See original delivery note as PDF (German) attached to see all standard and extra options.
Overview
- brand: Matec
- year: 2018
- MODEL: 30HV
- production hours: 21719
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - Matec 30HV
Control Unit
- Brand: HEIDENHAIN
- Model: TNC 640
Main drive
- Spindle speed range: 20-12000 rpm 1/MIN
- Spindle motor power: 11-16 kW
- Tool taper: HSK63
- Number of axis: 4
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 800 mm (H) / 700mm (V)
Tools
- Number of stations: 48
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - Chip Conveyor
- - Internal coolant supply 70 bar (paper belt filter) // External nozzles on the headstock 20 bar - 2nd coolant circuit (high-pressure pump) // Tank capacity paper filter system 900 l
- - 3D measuring probe (RENISHAW) with radio signal transmission control, incl. control software
- - Electronic handwheel (portable)
Additional Information
- Technical Machine Benefits:
- - Ejection height: 1130 mm (surcharge for modified chip conveyor ejection height // discharge height 1130 mm instead of 850 mm)
- - 4 axis, swivel head +/- 105° with 1° position indexing
- - Tool magazine with 48 stations
- - Work area cladding with roof
- - Bellows with steel slats
- - Direct path measuring system x-,y-,z-axis
- - Flushing gun
- - Central oil lubrication
- - Work area lighting
- - Direct measuring system +/- 3 arc seconds
- Qualitative Machine Benefits:
- - Motor spindle 12,000 1/min motor spindle with 30 kw (40% ed)
- - Discharge chip conveyor left
- - Machine still under power.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
