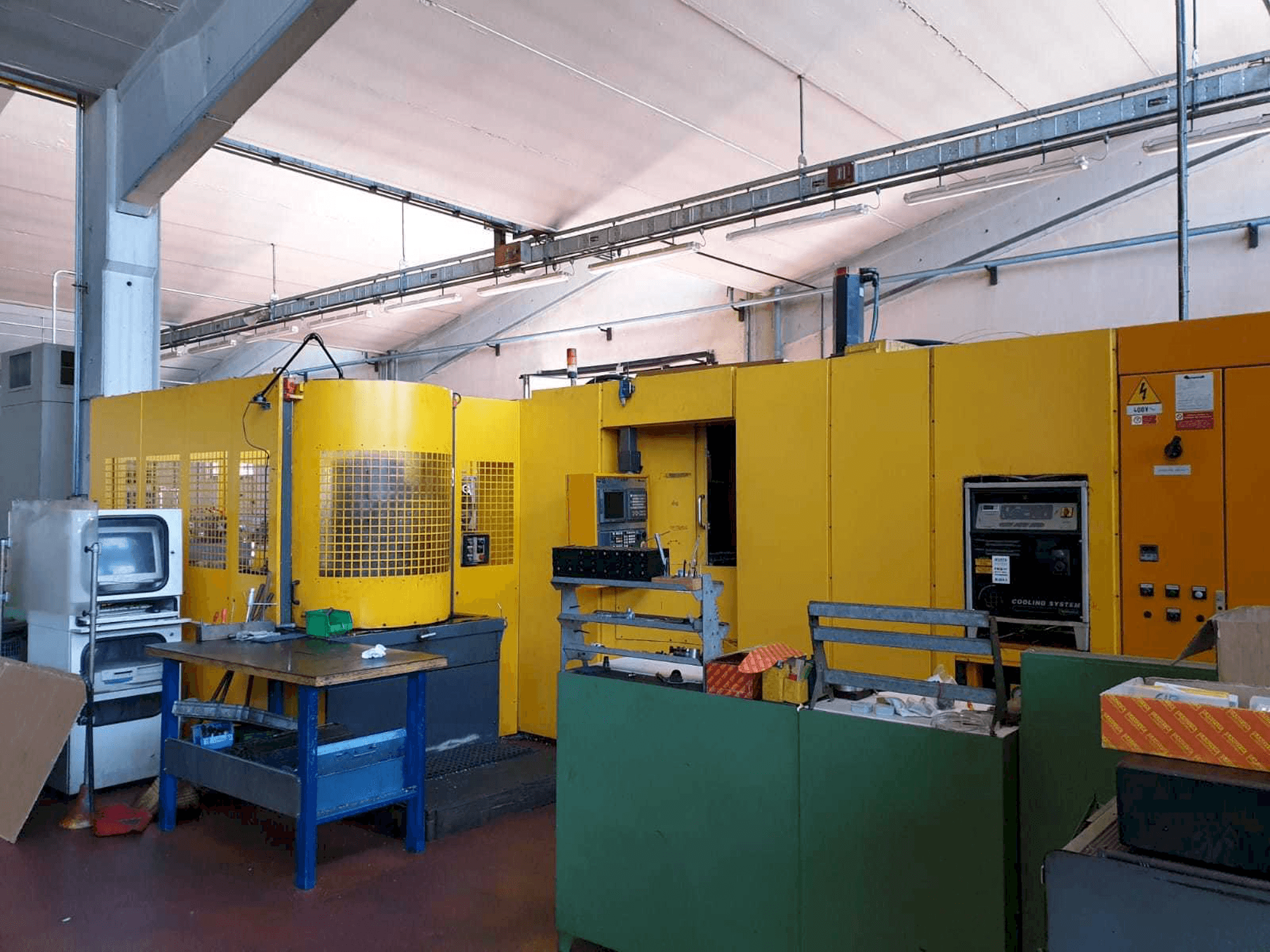

Mandelli Thunder 500 Horizontal Machining Center

Show in original language

This Mandelli Thunder 500 Horizontal Machining Center from 1998 was built in Italy. It is equipped with a FANUC Series 16i-MA control unit. It works with a spindle speed up to 14000 rpm and a spindle power of 25 kW.

Overview

brand: Mandelli
year: 1998
MODEL: Thunder 500
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Mandelli Thunder 500

General Data

Measurements width: 8626 mm
Measurements depth: 2400 mm
Measurements height: 4610 mm
Machine weight: 18000 KG

Control Unit

Model: Series 16i-M
Brand: FANUC

Main drive

Spindle speed range: 14000 1/MIN
Spindle motor power: 25 kW

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 700 mm

Workpiece

Workpiece weight: 600 kg

Media

Main electronic connection: 400 V
Power consumption: 40 kVA

Additional Information

Machine history

Material type: Aluminium

Machine Benefits

Technical Machine Benefits:
- - Min air compress: 6bar
- - Rapid traverse 60,000 mm/min
- - Diameter of ball screws: 50mm
- - Ball screws pitch: 30mm
- - Coolatn capacity: 18 liters
- - High pressure pump for in/out cooling at 25bar
- - Machine plate dimensions: 500x500. / 500x630

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
