- Makino PS95 vertical machining center

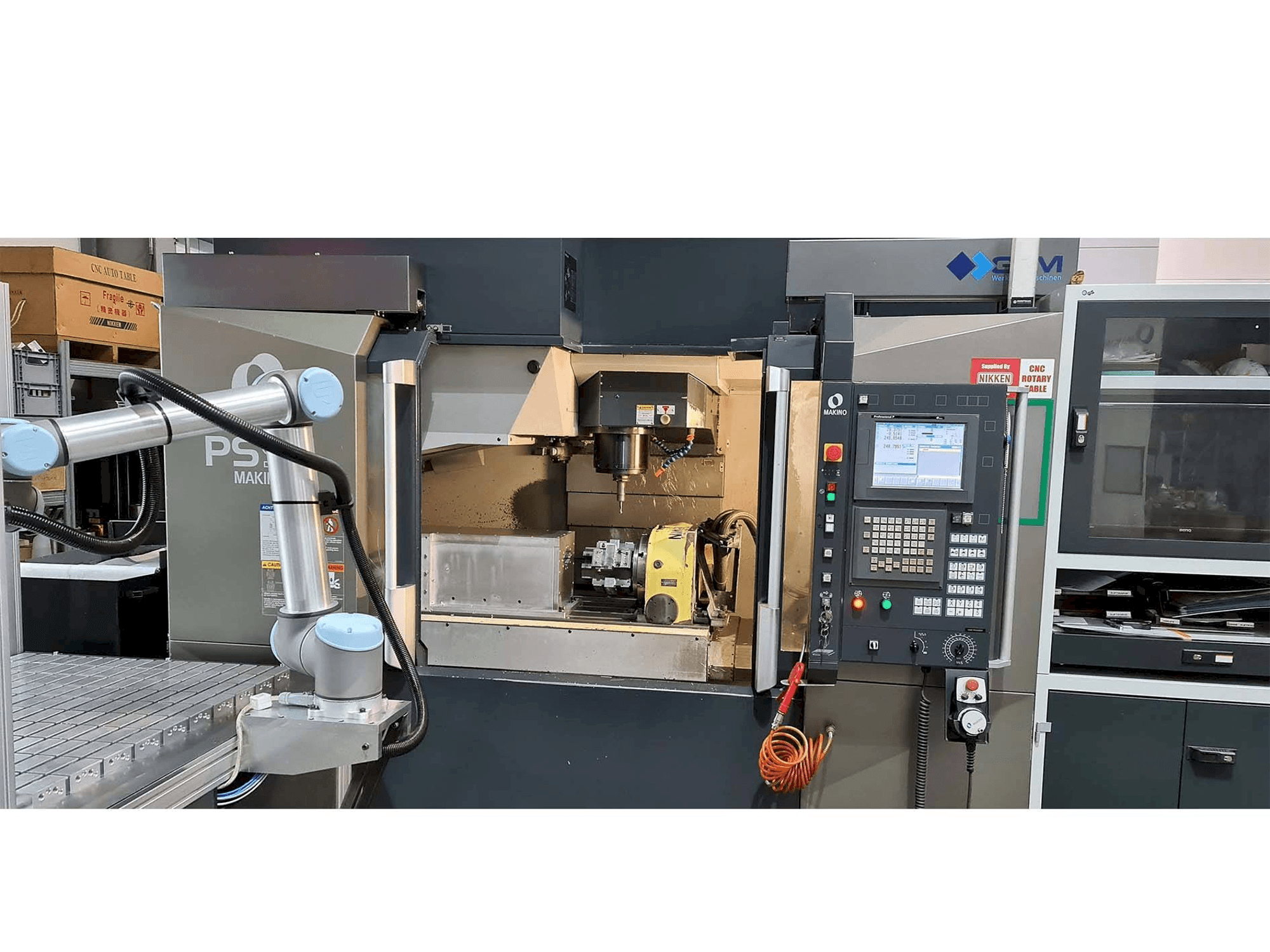

This Makino PS95 vertical machining center was manufactured in 2012 in Singapore. It includes a COBOT System von universal Robotics UR10. The machine has a total of 9750 running hours. It is operated through a Fanuc control unit. This 4 axis machine is equipped with a Gressel vice which can be controlled with a torque screwdriver via the robot at all 4 positions and has a spindle speed up to 14000 rpm.
Overview
- brand: Makino
- year: 2012
- MODEL: PS95
- production hours: 9750
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Fanuc
Technical Information - Makino PS95
General Data
- Measurements width: 2762 mm
- Measurements depth: 2420 mm
- Measurements height: 2479 mm
- Machine weight: 6800 kg
Control Unit
- Brand: Fanuc
- Model: with Makino surface
Main drive
- Number of spindles: 1
- Spindle speed range: 14000 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 920 mm
- Y-AXIS Movement: 510 mm
- Z-AXIS Movement: 460 mm
Table
- Outer length: 1170 mm
- Outer width: 510 mm
- Distance between: 150 - 610 mm
Tools
- Number of index: 30
- Max weight: 8 kg
- Max tool diameter: 125 mm
- Max tool length: 300 mm
- Type of tool holder: HSK 63
Media
- Main electronic connection: 3 x 400V / 50 Hz
- Power consumption: 33 kVA
- Chip conveyor: Yes
Additional Equipment
- - Software version COBOT Dec. 2021 V15.4
- - COBOT System von universal Robotics UR10 is included, very easy to program
- - We leave existing programs on the computer and the machine
- - Table is flexible to use via simple laser inserts
- - Laser floor scanner for 2 zones.
- - Automatic doors via torque controlled servo motors
Additional Information
- Technical Machine Benefits:
- - 15bar ikz
- - Paper belt filter for kss
- - Central shearing system
- - Network connection
- - 4 axis nikken 260z / nc controlled / g68. 2 usable
- - Door automation servo controlled : manual and programmable
- - Air dryer upstream
- - 45 linear guides / very accurate and stable
- - Automation connection for cobot ur10
- - Double gripper schunk / one side with deflection for pressing on
- Qualitative Machine Benefits:
- - 4 axis is equipped with a gressel vice which can be controlled with a torque screwdriver via the robot at all 4 positions
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
