- Macro Micro Tech Compac 500 Vertical Machining Center

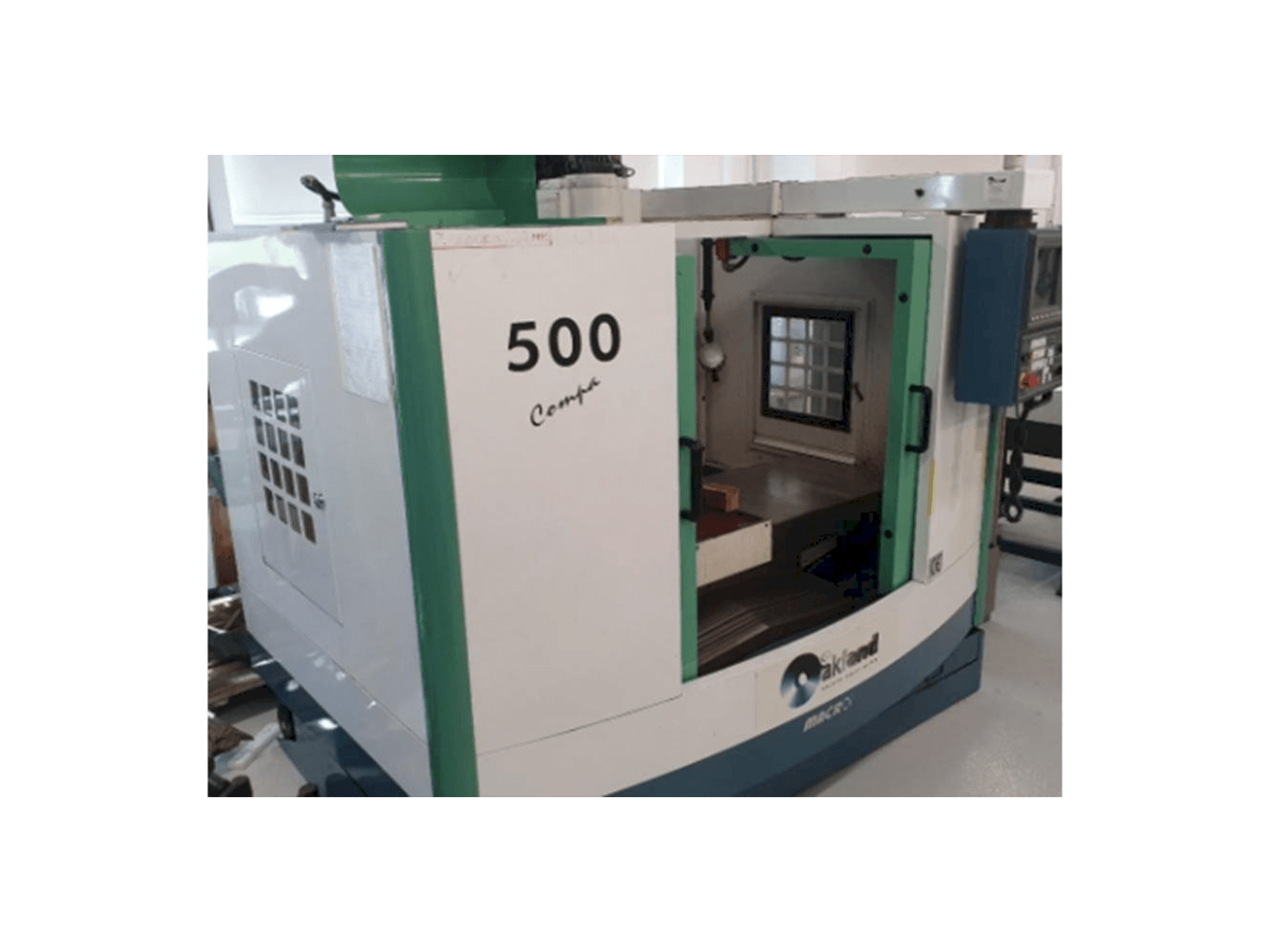

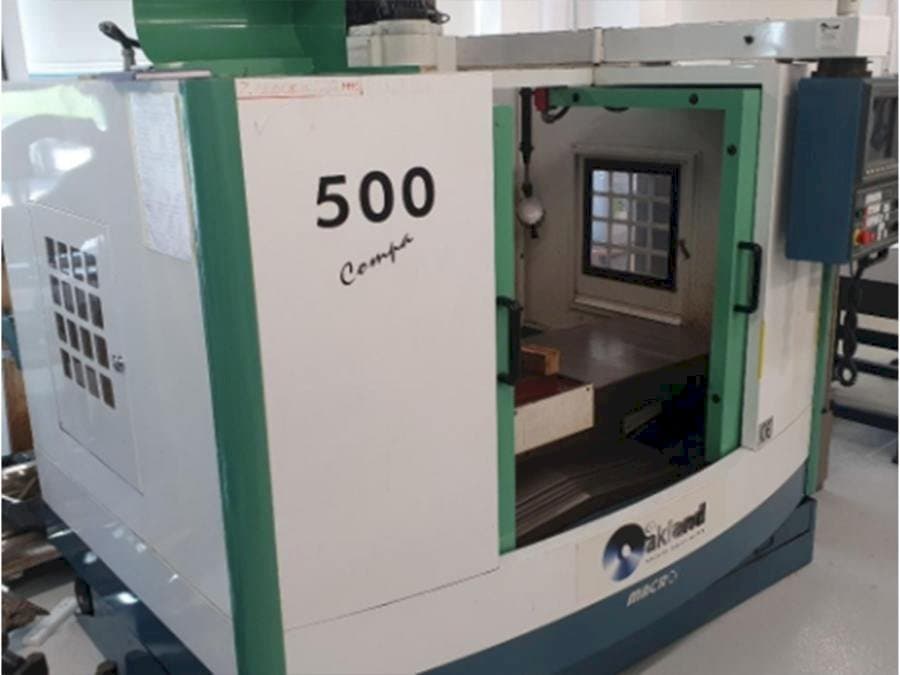

This Macro Micro Tech Compac 500 Vertical Machining Center was built in Taiwan in the year 2003. It is equipped with a Fanuc Milling 2000 Series control unit. This machine can operate with a spindle speed up to 8000 rpm. The machine was brought and stays on place of University. Not used newer for a real work.
Overview
- brand: Macro Micro Tech
- year: 2003
- MODEL: Compac 500
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Fanuc
Technical Information - Macro Micro Tech Compac 500
General Data
- Measurements width: 2200 mm
- Measurements depth: 2600 mm
- Measurements height: 2150 mm
- Machine weight: 4200 kg
Control Unit
- Brand: Fanuc
Main drive
- Spindle speed range: 8000 1/MIN
Movement
- X-AXIS Movement: 510 mm
- X-AXIS Rapid traverse: 20 m/min
- Y-AXIS Movement: 450 mm
- Y-AXIS Rapid traverse: 20 m/min
- Z-AXIS Movement: 460 mm
- Z-AXIS Rapid traverse: 16 m/min
Table
- Outer length: 780 mm
- Outer width: 430 mm
- Table load: 350 kg
Tools
- Max weight: 6 kg
- Max tool diameter: 80 mm
- Max tool length: 250 mm
Additional Information
- Technical Machine Benefits:
- - Spindle nose to table: 130 - 590mm
- - Spindle taper: bt40
- - Spindle motor: 10hp
- - Feed rates - x,y,z 10 m/min
- - Atc 16 tool atc
- - Control: fanuc compatible itri. Mirl pc control – milling 2000 series
- Qualitative Machine Benefits:
- - Machine was brought and stays on place of university. Not used newer for a real work.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
