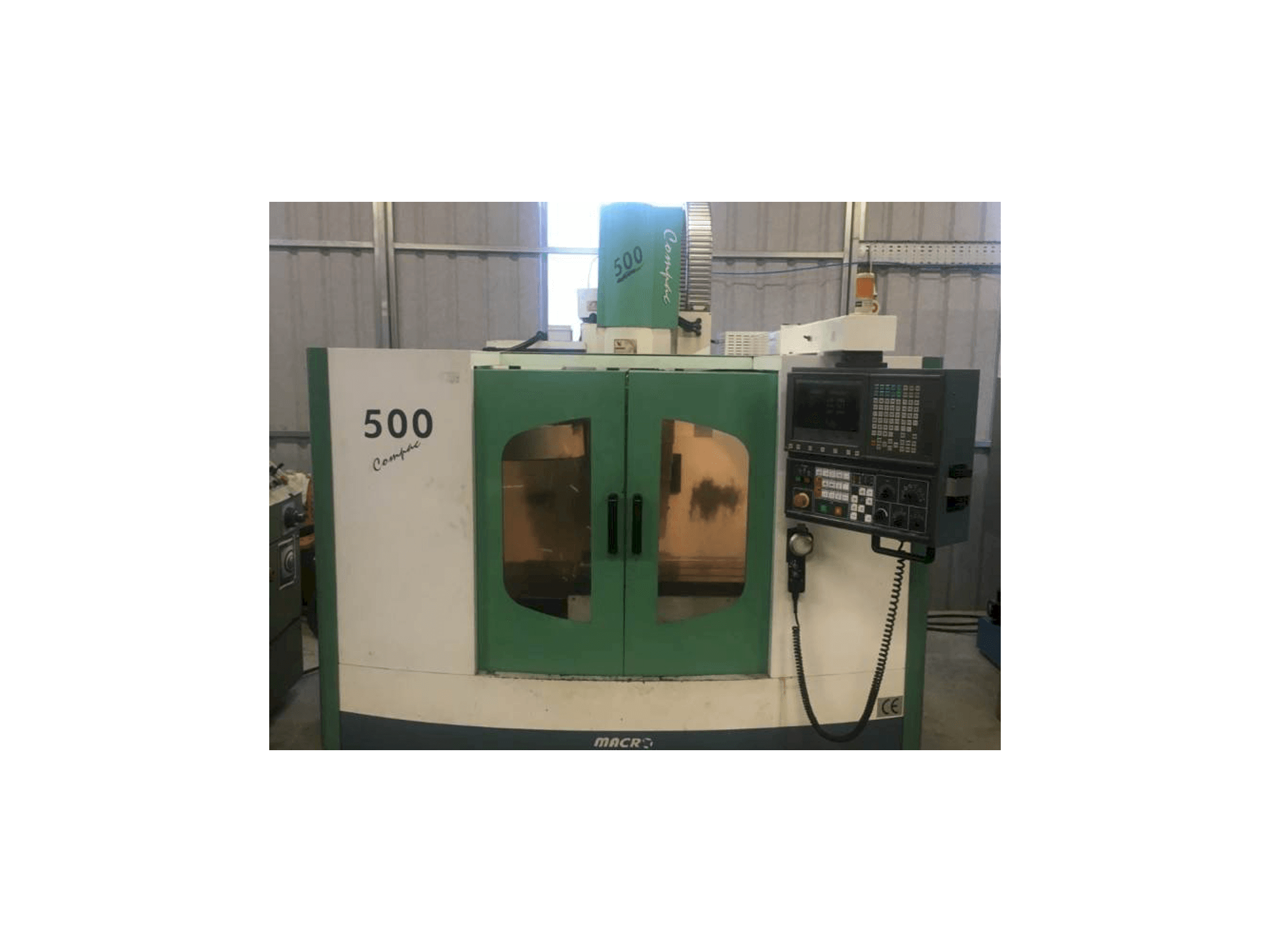

- Macro Micro Tech Compac 500 Vertical Machining Center
This Macro Micro Tech Compac 500 Vertical Machining Center was built in Taiwan in the year 2003. It is equipped with a Fanuc Milling 2000 Series control unit. This machine can operate with a spindle speed up to 8000 rpm.
Overview
- brand: Macro Micro Tech
- year: 2003
- MODEL: Compac 500
- application type: Milling
- Location: Ireland
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Fanuc
Technical Information - Macro Micro Tech Compac 500
General Data
- Measurements width: 2200 mm
- Measurements depth: 2600 mm
- Measurements height: 2150 mm
- Machine weight: 4200 kg
Control Unit
- Brand: Fanuc
- Model: Milling 2000 Series
- CNC main language: English
- CNC language customizable: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 8000 1/MIN
Movement
- X-AXIS Movement: 510 mm
- Y-AXIS Movement: 450 mm
- Z-AXIS Movement: 460 mm
Workpiece
- Workpiece weight: 350 kg
Table
- Outer length: 780 mm
- Outer width: 430 mm
Tools
- Slots in storage: 16
- Max weight: 6 kg
- Max tool diameter: 80 mm
- Max tool length: 250 mm
- Type of tool holder: BT40
Additional Information
- Material type: Steel
- End product: Components
- Technical Machine Benefits:
- - Compact machine
- - New z axis drive fitted
- Qualitative Machine Benefits:
- - Well maintained
- - Rarely used by current owner
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
